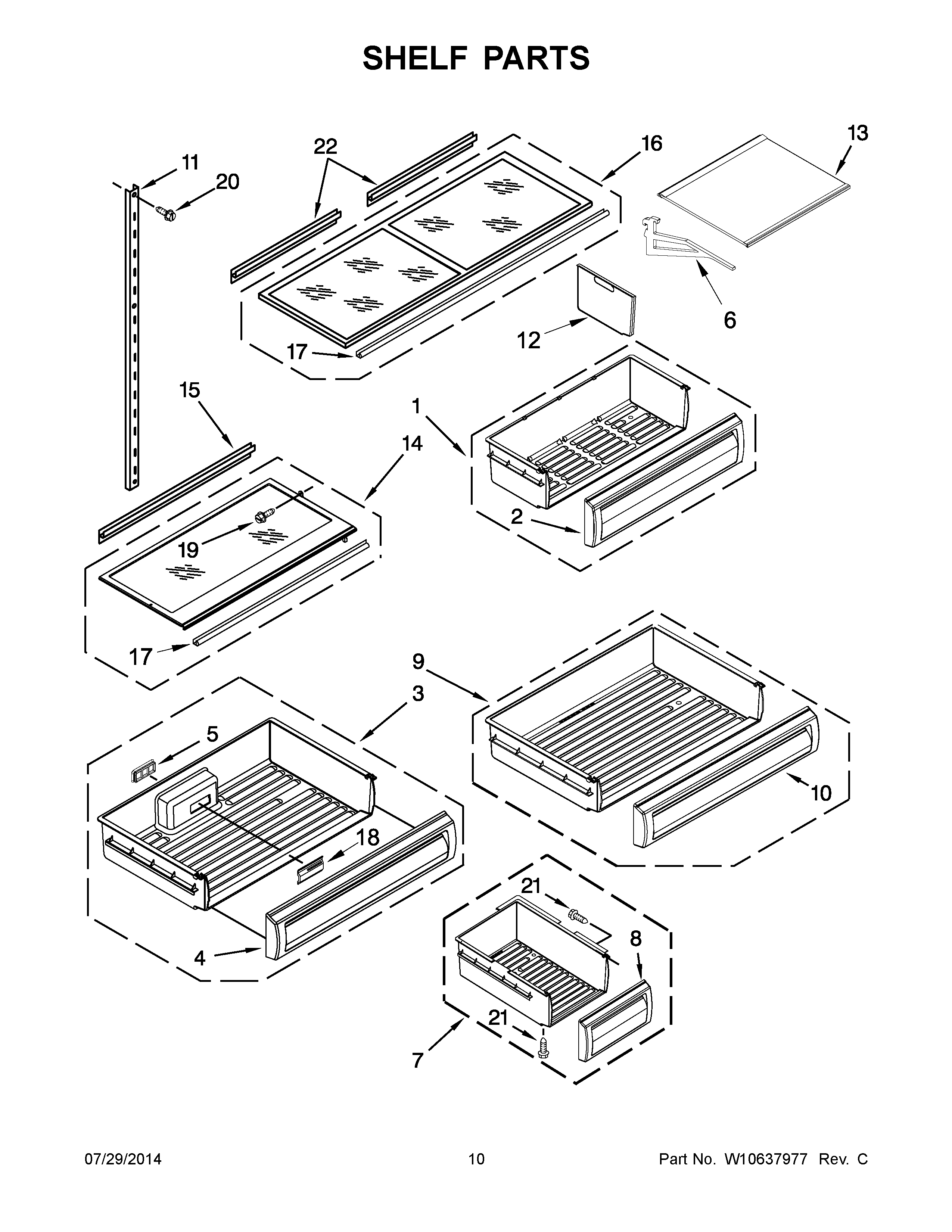

JB36NXFXRW05 06 – SHELF PARTS

Products

Position	Product
1	CRISPER PAN ASSEMBLY (INCLUDES ITEM 2)
2	MAY 2256374
3	DELI PAN ASSEMBLY
4	MAY 2257548
5	DUCT, PAN
6	MAY W10187549
7	ASSEMBLY, ICE PAN
8	Front, Ice Pan
9	FREEZER PAN ASSEMBLY
10	Front, Freezer Pan
11	LADDER, SHELF (SIDE)
11A	LADDER, SHELF (CENTER)
12	DIVIDER, CRISPER
13	MAY W10198700
14	MAY W10203635
15	GASKET, REAR (DELI COVER)
16	MAY W10183749
17	GASKET, COVER FRONT
18	DEFLECTOR
19	MAY W10141645
20	SCREW
21	MAY 488886
22	COVER, REAR GASKET
