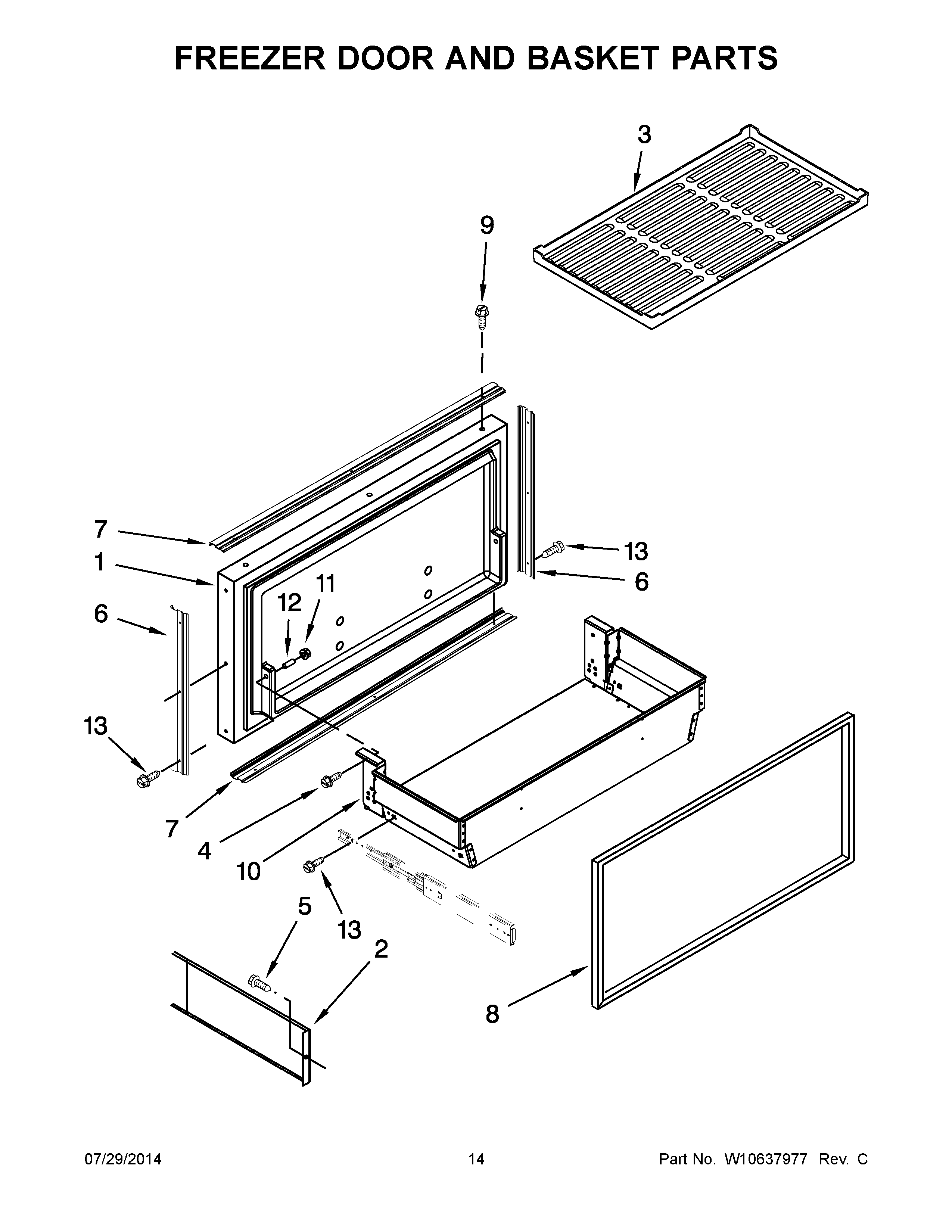

JB36NXFXRW05 08 – FREEZER DOOR AND BASKET PARTS
Written by
in
JB36NXFXRW05 08 – FREEZER DOOR AND BASKET PARTS
Products
Position
Product
1
MAY W10259062
2
MAY 2317101
3
MAY W10168937
4
SCREW
5
MAY W10135792
6
MAY W10203452
7
MAY W10203448
8
MAY W10694217
9
Screw, 8-15 x .500 (Stainless Steel)
10
MAY W10258182
11
MAY 2207454
12
MAY W10001190
13
MAY W10109030
←
