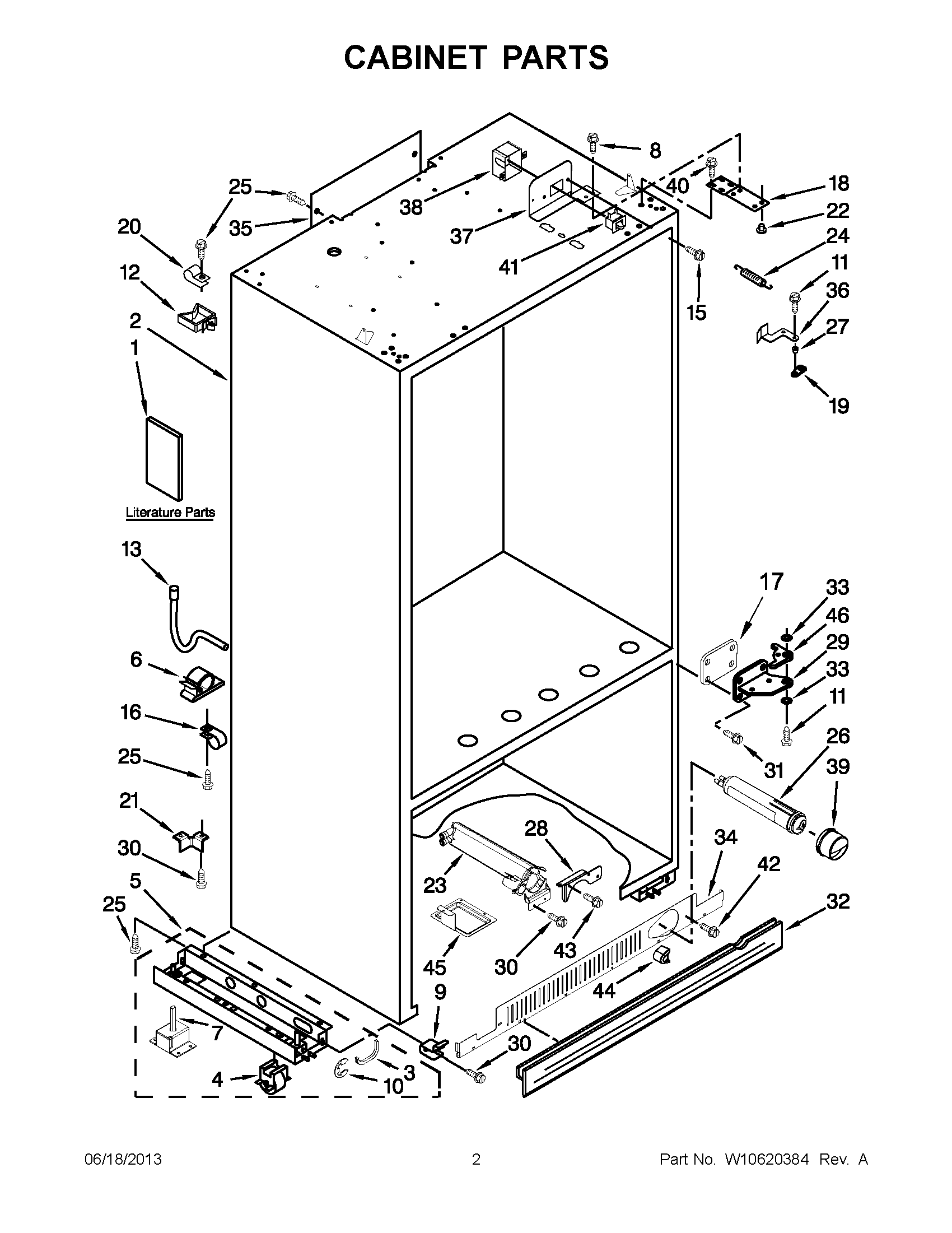

JB36SSFXRA01 01 – CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1	MAY W10555566
1	MAY W10512204
1	MAY W10477525
1	MAY W10469186
1	MAY 2317840
2	LINER (NOT A SERVICEABLE PART)
3	GROMMET, CROSSOVERTUBE
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	CLIP
7	LEVELER ASSY
8	MAY 8281164
9	Mounting Stud, Grille
10	Ring, Retainer
11	MAY W10004850
12	Wire Clip (5)
13	MAY 2314064
15	Screw
16	MAY 489348
17	MAY 2207470
18	Hinge (Top)
19	MAY 2320509
20	MAY W10331955
21	Bracket, Support Base (Rear) (2)
22	MAY W10484913
23	MAY W10121140
24	Spring, Door Closure (Right Side)
25	SCREW
26	Filter, Water
27	MAY 2316859
28	BRACKET, FILTER
29	MAY 2005101
30	MAY W10001250
31	MAY W10162602
32	SKIRT, GRILLE BOTTOM (BLACK)
33	WASHER
34	GRILLE, PUSH FILTER BOTTOM (BLACK)
35	Cover, Rear
36	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
36	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
37	MAY 2221096
37	MAY 2221097
38	Cover, Switch (2)
39	MAY 2260518B
40	Screw 1/4-20 x 5/8
41	MAY 1118894
42	MAY W10005050
43	Screw
44	Button, Filter (Black)
45	Tray, Drip Filter
46	COVER, BOTTOM GAP
