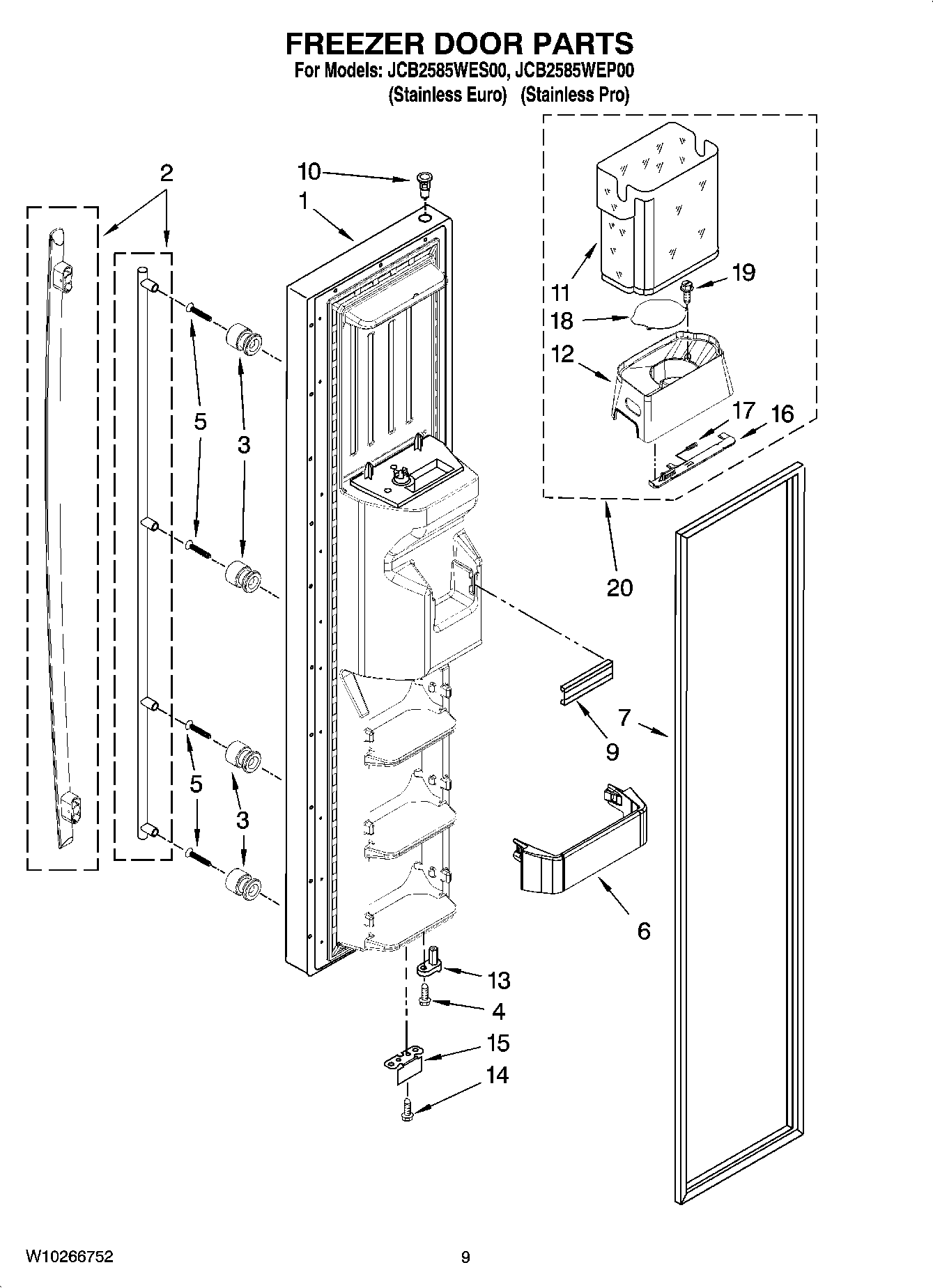

JCB2585WEP00 06 – FREEZER DOOR PARTS

JCB2585WEP00 06 – FREEZER DOOR PARTS

Written by

in

JCB2585WEP00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10190730
2MAY W10202812
2HANDLE, DOOR
3MAY 67006109
4SCREW 10-32 X 1/2
5SCREW 8-15 X .813
6MAY 2223559
7MAY 2326340
9MAY 2219982
10MAY 2308091
11Upper Bin
12MAY W10162938
13Thimble Cam, FC
14MAY W10001250
15MAY 2306940
16MAY 2317272
17MAY 2198608
18MAY W10131326
19SCREW (STAINLESS)
20MAY W10162937
