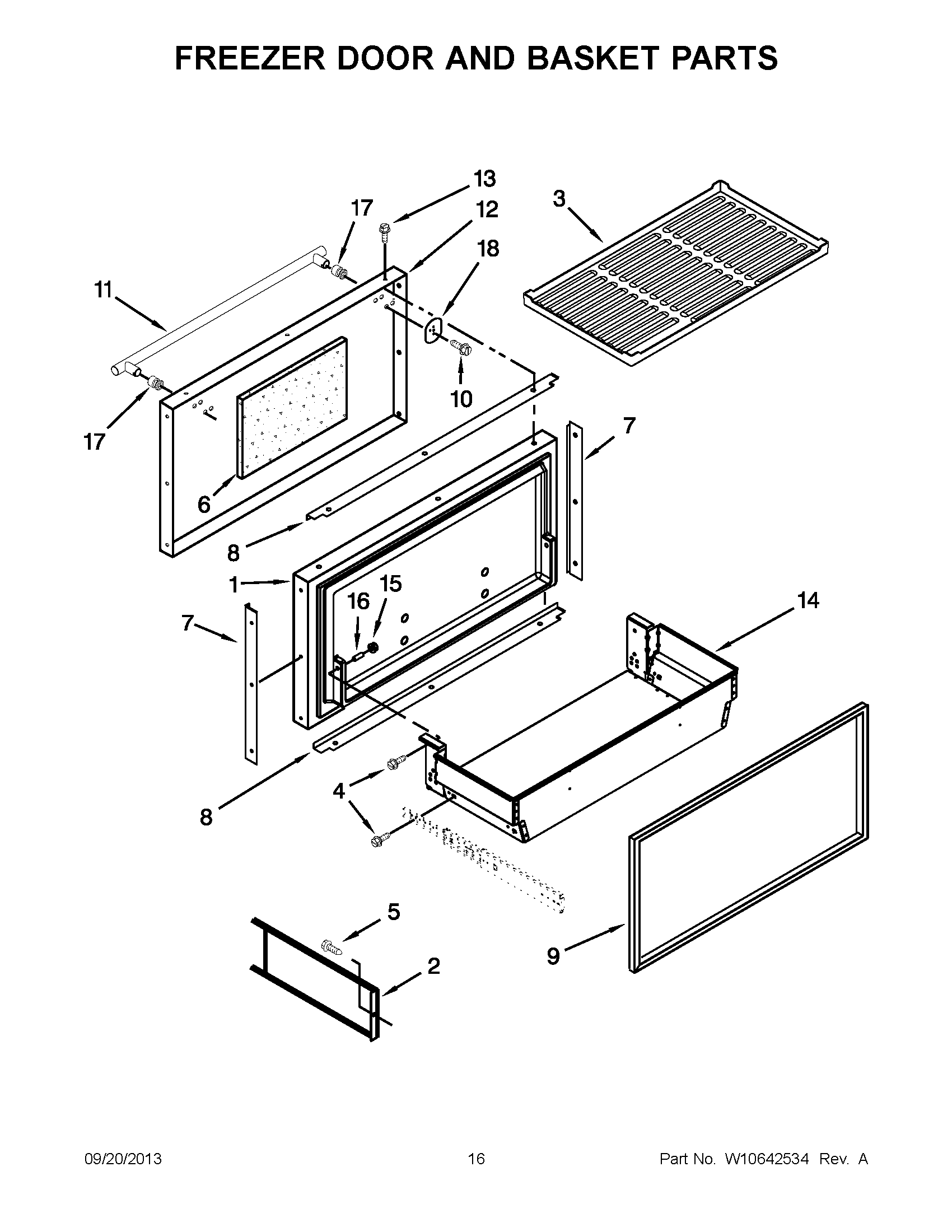

JF42SSFXDA02 09 – FREEZER DOOR AND BASKET PARTS

JF42SSFXDA02 09 – FREEZER DOOR AND BASKET PARTS

Written by

in

JF42SSFXDA02 09 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.9)
2	MAY 2317101
3	MAY W10183770
4	SCREW
5	MAY W10135792
6	MAY 2309219
7	SPACER, DOOR EDGE (SIDE)
8	MAY 2309221
9	MAY W10192907
10	Screw
11	HANDLE, DOOR (STAINLESS)
12	MAY W10523750
13	Screw, 8-15 x .500 (Stainless Steel)
14	MAY W10258183
15	MAY 2207454
16	MAY W10001190
17	MOUNT, HANDLE
18	MAY W10127710
