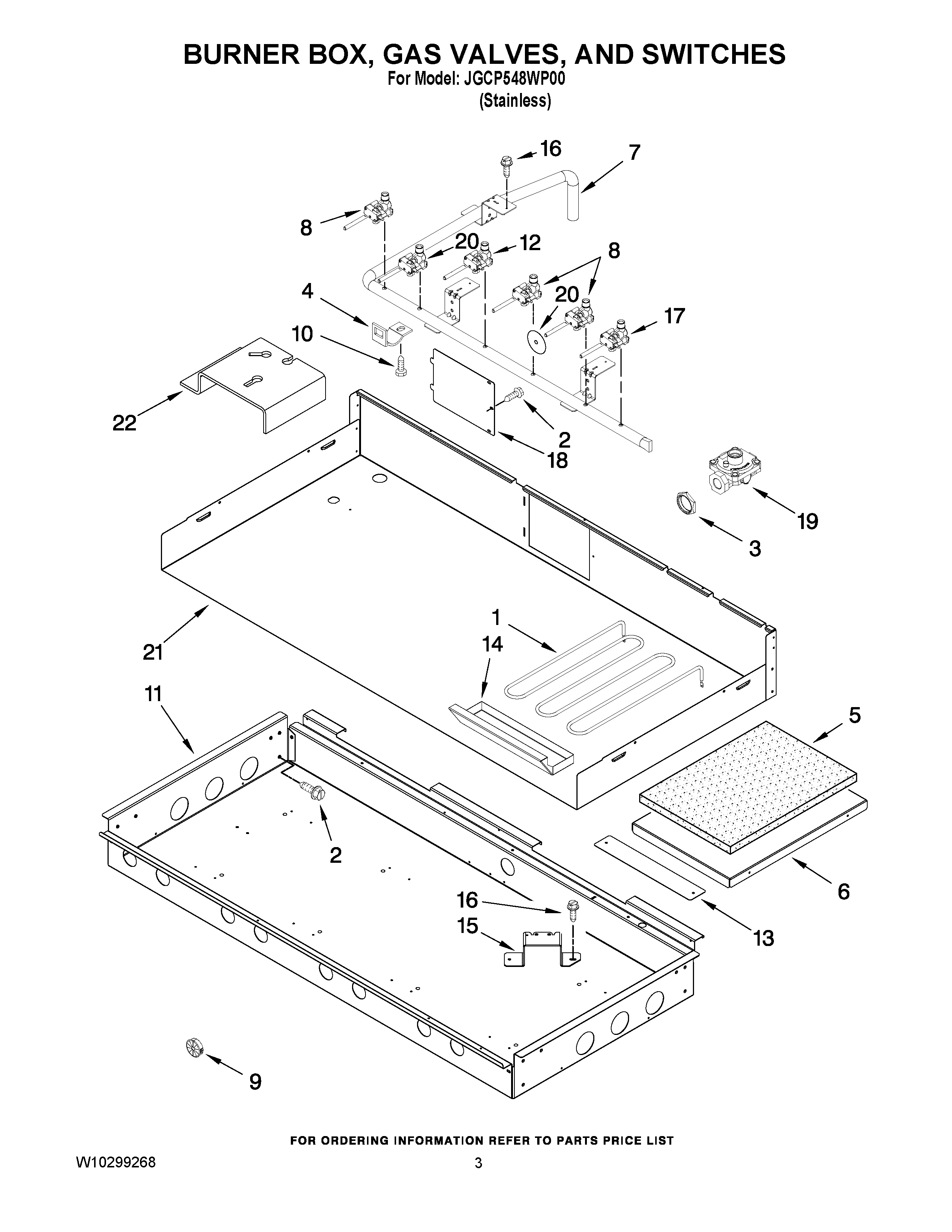

JGCP548WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGCP548WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGCP548WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LR)
NITUBING, GAS (RF)
NITUBING, GAS (LF)
NITUBING, GAS (RR)
1ELEMENT, GRIDDLE
2MAY W10145620
3MAY W10115953
4MAY W10189107
5MAY W10145621
6MAY W10246074
7MAY W10115896
8MAY W10250407
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10250424
12VALVE, SIMMER
13MAY W10250433
14DRIP, TRAY GRIDDLE
15BRACKET, BURNER (RF,RR,CF,LR,LF)
15BRACKET, BURNER (CR)
16MAY 4450800
17MAY W10250410
18MAY W10115843
19REGULATOR,PRESSURE
20MAY W10189177
21MAY W10189155
22BRACKET, MOUNTING ORIFICE
