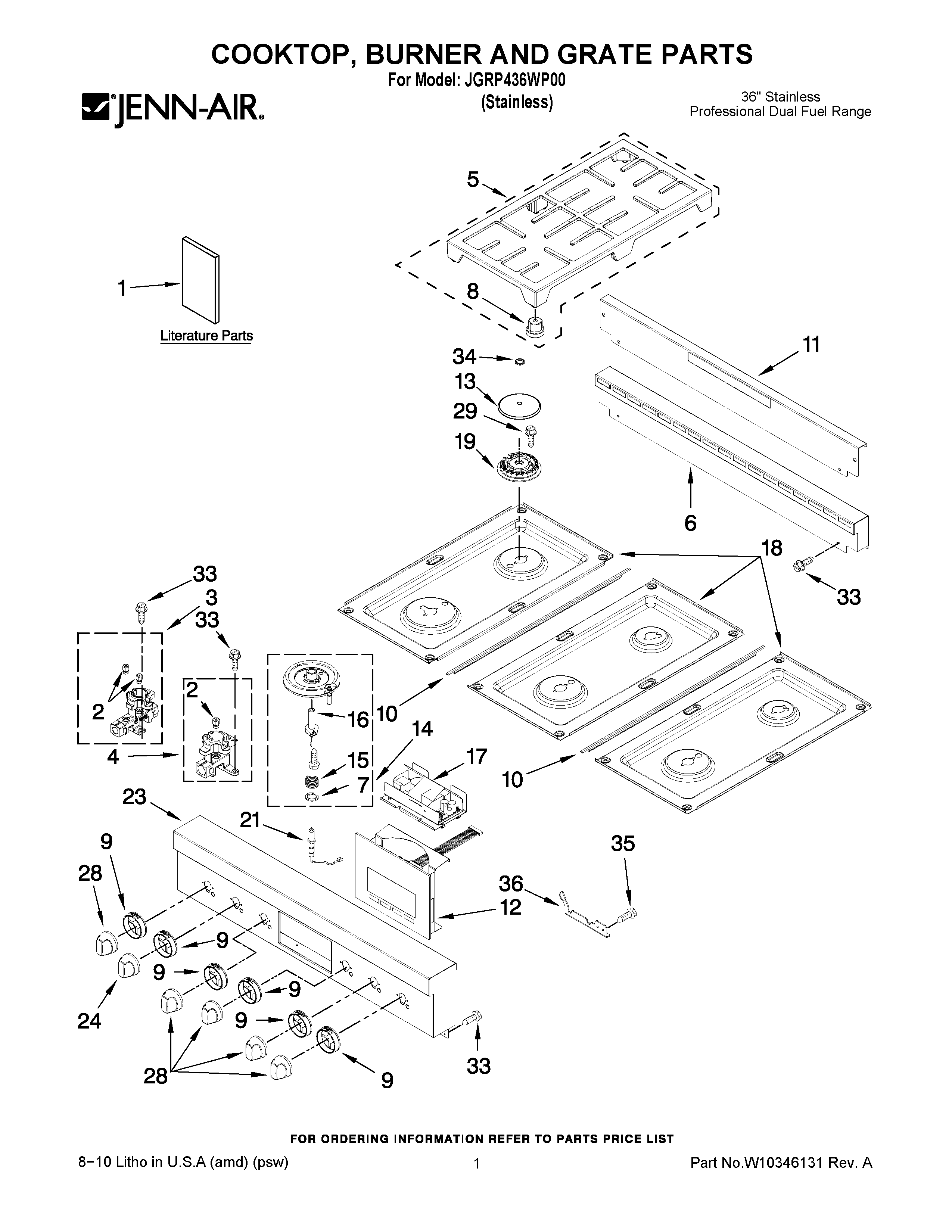

JGRP436WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10322719
1INSTR, INSTALLER
1MAY W10323234
1MAY W10323233
1MAY W10322721
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2ORIFICE (CR)
2ORIFICE (LF)
2ORIFICE (L)
2ORIFICE (LR & RF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (RR)
4ORIFICE HOLDER (LR & RF)
5MAY W10276551
6MAY W10323249
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10TRIM, T-STRIP
11MAY W10323250
12MAY W10335686
13CAP, BURNER (LF)
13CAP, BURNER (RR)
13CAP, BURNER (LR & RF)
14BASE, BURNER (LR & RF)
14BASE, BURNER (LF)
15SPRING, ELECTRODE (RR)
15SPRING, ELECTRODE (LF, LR & RF)
16ELECTRODE (LR & RF)
16ELECTRODE (CR)
16ELECTRODE (LF)
17ASSEMBLY, POWER SUPPLY
18MAY W10189104
18COOKTOP (CENTER)
18MAY W10189101
19BURNER HEAD (RR)
19BURNER HEAD (LF)
19BURNER HEAD (LR & RF)
21ELECTRODE, WIRE
23MAY W10295785
24KNOB, CONTROL LF
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
33SCREW (8BX3/8-NI)
34MAY W10115953
35MAY 7101P500-60
36BRACKET,CONSOLE (LEFT)
36BRACKET,CONSOLE (RIGHT)
