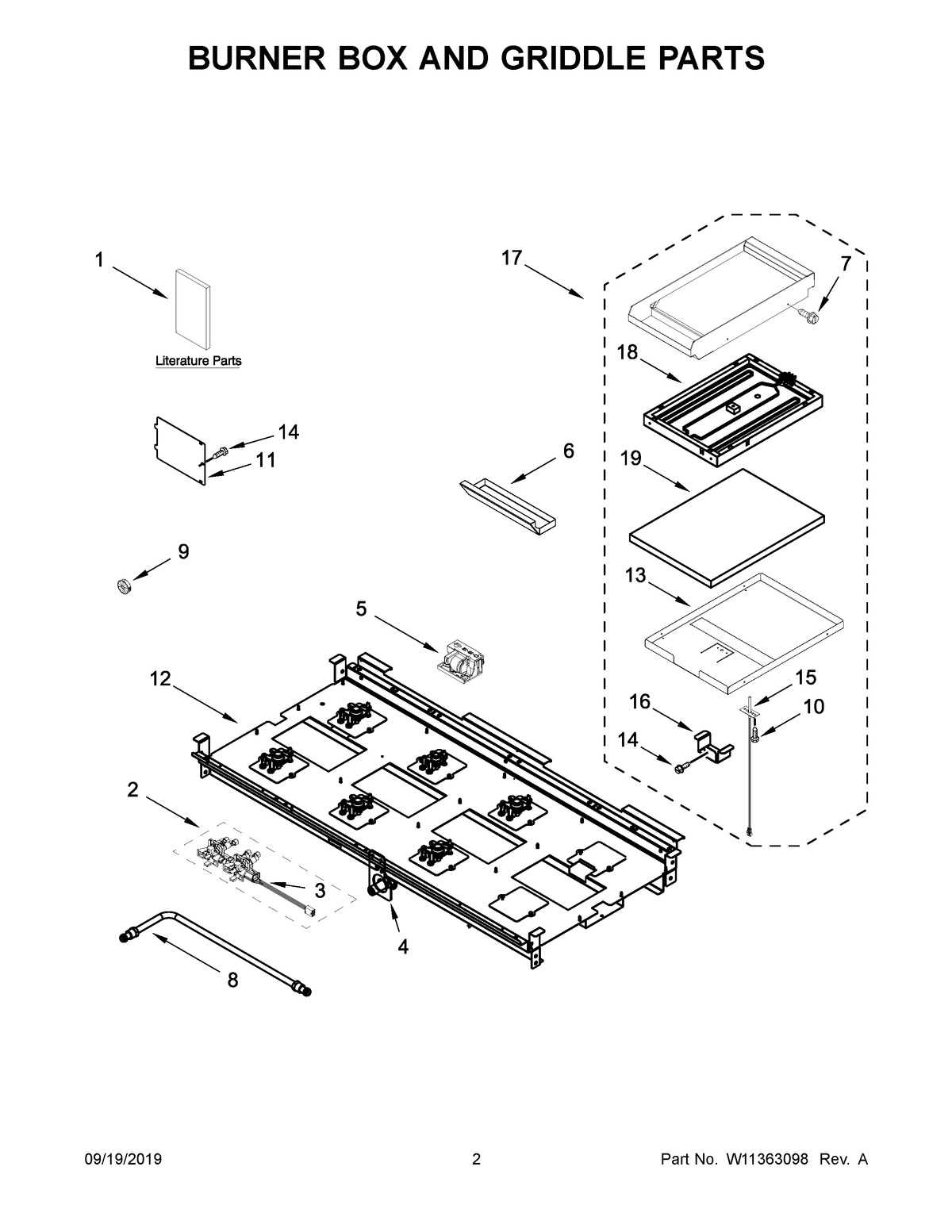

JGRP548HM00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	HARNESS, COOKTOP
NI	HARNESS, DOOR LOCK
NI	HARNESS, WIFI
NI	KIT, LP CONVERSION
NI	MAY W11311196
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11311197
NI	MAY 4450800
NI	MAY 9759877
NI	HARNESS, GRIDDLE
NI	BRACKET, ANTI-TIP
NI	HARNESS, COMMUNICATION
NI	MAY W11200305
NI	CORD, POWER
1C	MAY W11177312
1D	MAY W11202375
1A	MAY W11177278
1	MAY W11177275
1B	GUIDE, INTERNET CONNECTIVITY
1E	MAY W11202275
2A	ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
2	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2B	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	DRIP, TRAY GRIDDLE
7	Screw
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
9	MAY W10189097
10	MAY 3196160
11	MAY W10115843
13	MAY W11330430
14	MAY 7101P426- 60
15	SENSOR, GRIDDLE
16	BRACKET, GRIDDLE-RTD
17	ASSEMBLY, GRIDDLE MODULE
18	ELEMENT, GRIDDLE
19	INSULATION, GRIDDLE
