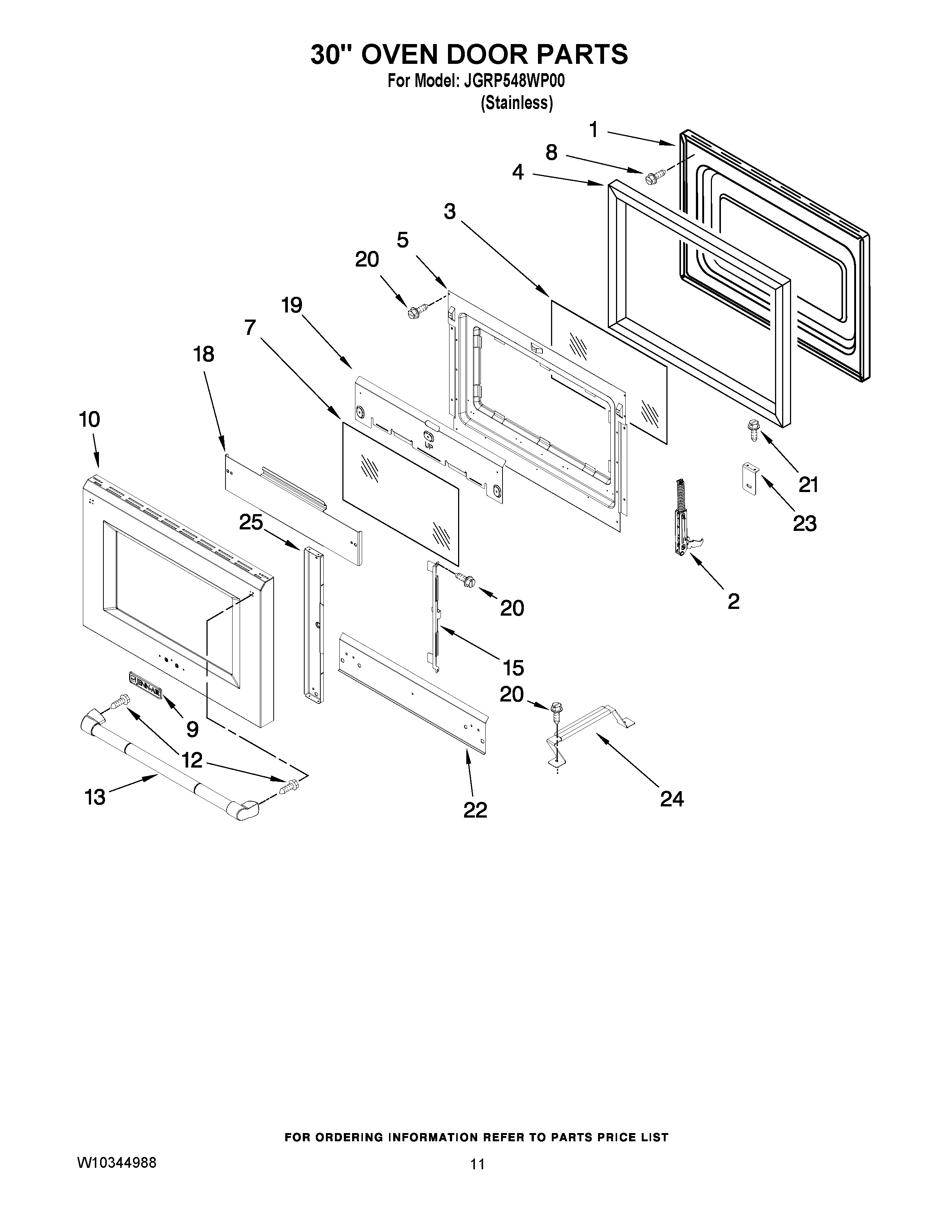

JGRP548WP00 07 – 30“ OVEN DOOR PARTS

JGRP548WP00 07 – 30“ OVEN DOOR PARTS

Written by

in

JGRP548WP00 07 – 30“ OVEN DOOR PARTS

Products

PositionProduct
1MAY W10226001
2MAY W10269202
2MAY W10269201
3MAY 4449259
4MAY 4451722
5MAY W10226002
7MAY 9759225
8MAY W10292297
9MAY W10159578
10MAY W10322618
12SCREW, HANDLE
13MAY 7701P475-60
15MAY 9759229
18BRACKET, CENTER OUTER GLASS
19SHIELD, HEAT TOP
20Screw
21MAY 7101P426- 60
22SHIELD, HEAT BOTTOM
23MAY W10115715
24MAY 9759230
25BRACKET, SIDE
