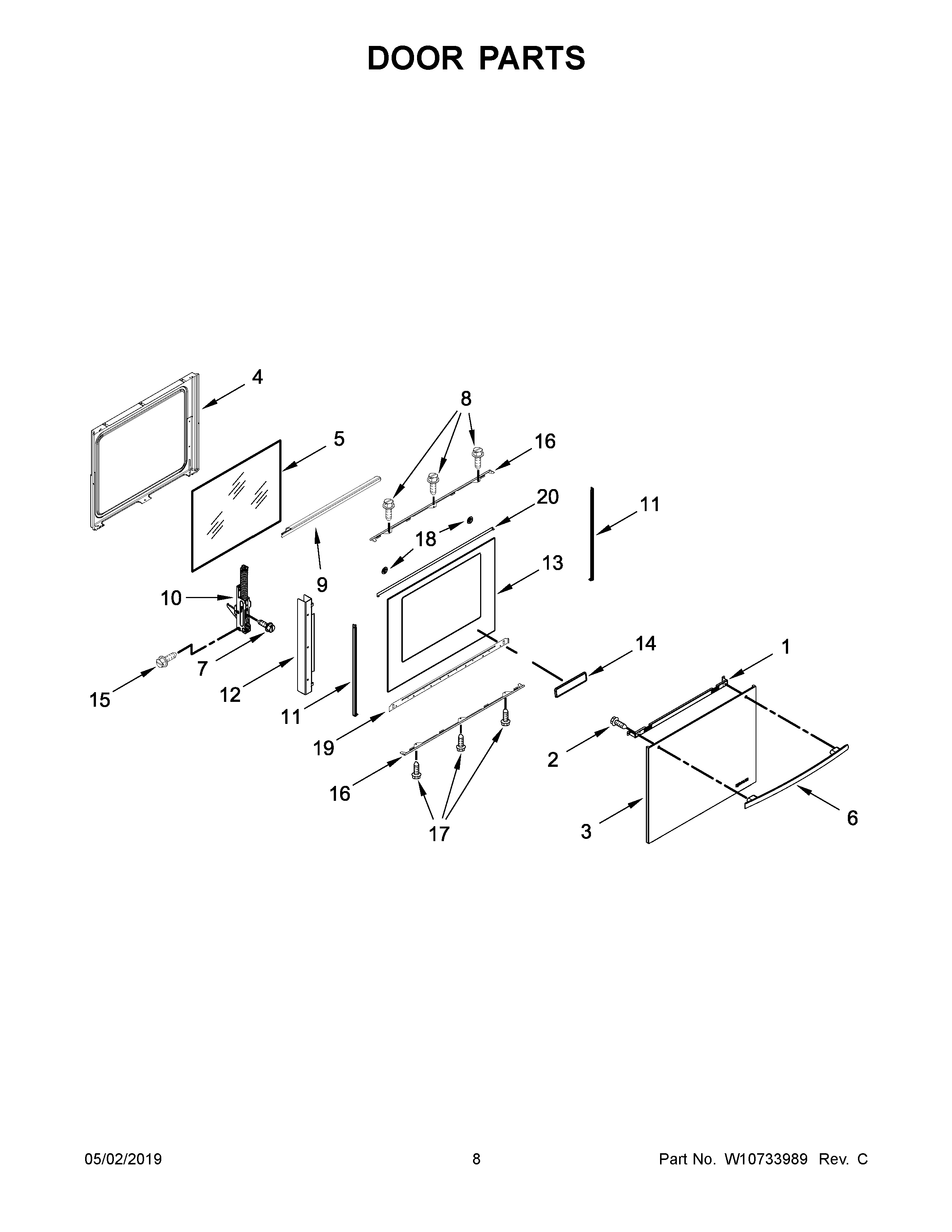

JGS1450DS0 05 – DOOR PARTS

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2	SCREW
3	DOOR, COMPLETE (STAINLESS)
4	MAY W10541882
5	MAY W10541888
6A	ASSEMBLY, DOOR HANDLE (STAINLESS)
6	ASSEMBLY, DOOR HANDLE (BLACK)
7	MAY W10031780
8	SCREW
9A	SCOOP, DOOR (STAINLESS)
9	SCOOP, DOOR (BLACK)
10	MAY W10541887
10A	HINGE, SLOW CLOSE (STAINLESS MODELS)
11	TRIM, DOOR SIDE (BLACK)
12	MAY W10541883
13	ASSEMBLY, OUTER DOOR (BLACK)
14A	ASSEMBLY, BADGE (STAINLESS)
14	ASSEMBLY, BADGE (BLACK)
15	SCREW
16	MAY W10541885
17	SCREW
18	WASHER, DOOR
19	MAY W10541912
20	DOOR, TRIM TOP
