JGS8750BDS 04 – DOOR/DRAWER (SER PRE 11)

JGS8750BDS 04 – DOOR/DRAWER (SER PRE 11)

Written by

in

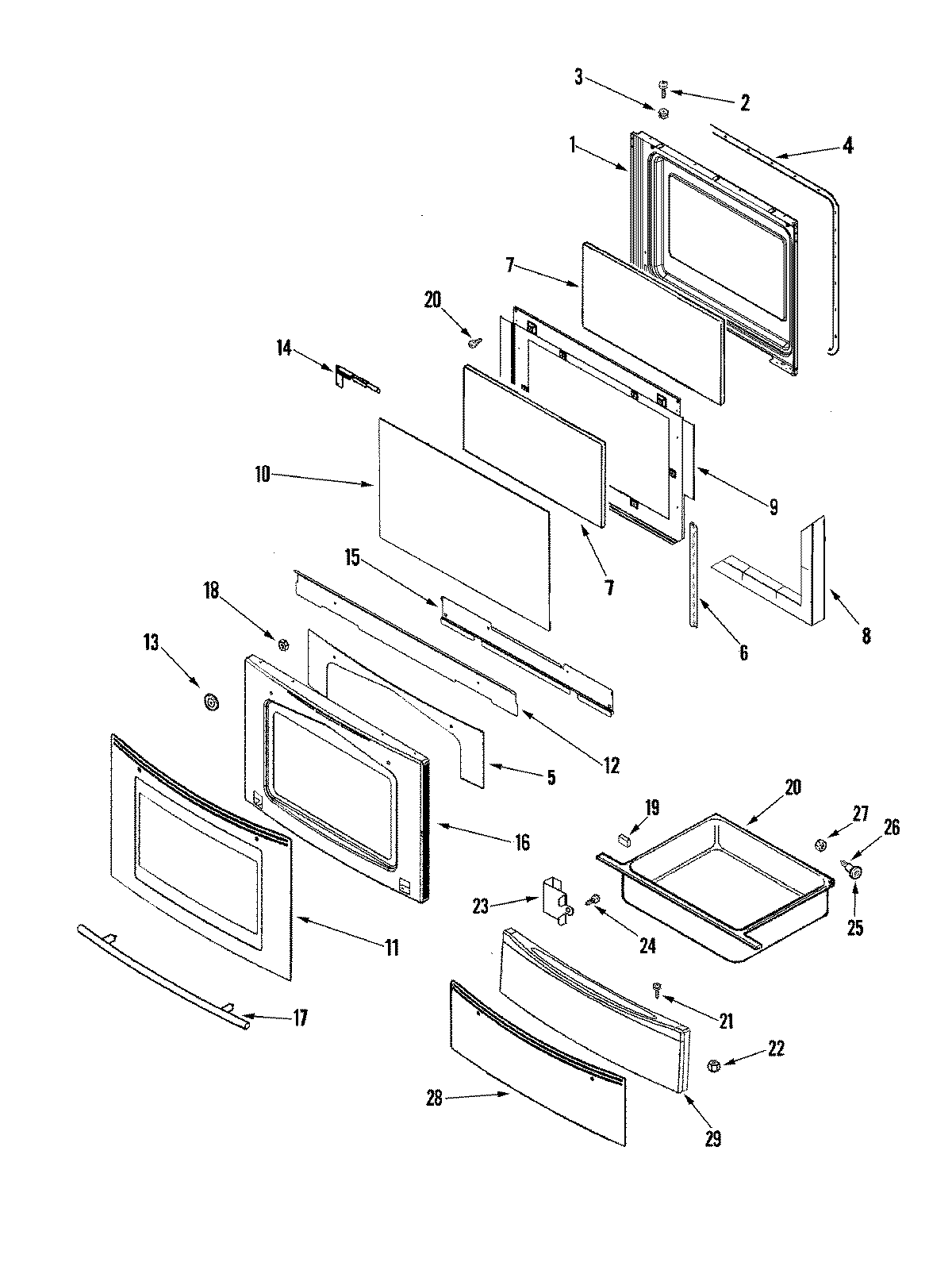

JGS8750BDS 04 – DOOR/DRAWER (SER PRE 11)

Products

PositionProduct
1LINING, DOOR
2WP98008545 Whirlpool Screw
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
63801F886-51 Whirlpool Mounting Bracket
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
93601F373-51 Whirlpool Baffle
10GLASS, DOOR (INNER/COATED)
11MAY 74011542
12MAY 74011049
13MAY 74009194
14MAY 74011797
14MAY 74011463
15MAY 74011464
16MAY 74011507
17WP74008625 Whirlpool Door Handle
18WP3400029 Whirlpool Dishwasher Nut
19WP74005546 Whirlpool RU Spacer
20DRAWER, STORAGE
21SCREW
2274005230 Whirlpool Oven Lock Nut (8-32)
23MAY 74010896
24SCREW, 8 X 1/2
25WP74004078 Whirlpool Door Roller
26SHAFT, STORAGE DRAWER ROLLER
27WP488130 Whirlpool Air Conditioner Nut
28WPW10297248 Whirlpool Drawer Panel
28SCREW (8BX3/8-NI)
29WP2416F086-70 Whirlpool Panel Assembly
