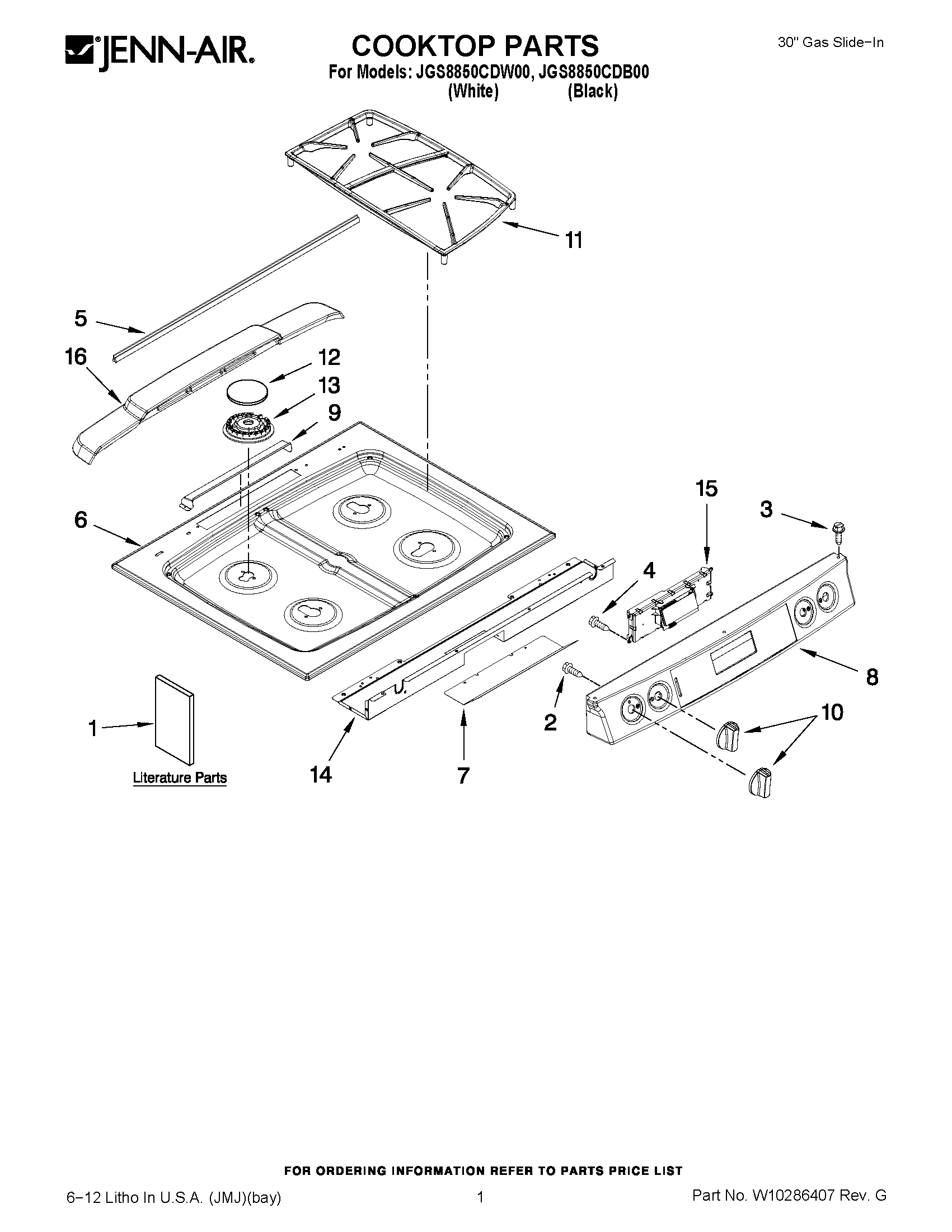

JGS8850CDB00 01 – COOKTOP PARTS

JGS8850CDB00 01 – COOKTOP PARTS

Written by

in

JGS8850CDB00 01 – COOKTOP PARTS

Products

PositionProduct
1WIRING DIAGRAM BROCHURE, TIPS
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10253459
1MAY W10235526
2MAY 7101P636-60
3MAY 7101P426- 60
4WP59002061 Whirlpool Microwave Screw
5GASKET, DOOR TOP
6MAY W10204432
6MAY W10202584
7SHIELD, CONTROL
8MAY W10235331
8MAY W10235330
9BAFFLE,VENT COVER
10KNOB, VALVE (WHITE)
10KNOB, VALVE (4)
11MAY 7518P358-60
12CAP, BURNER (DUAL INNER)
12MAY 7504P260-60
12CAP, BURNER (DUAL OUTER)
12CAP, BURNER (CTR)
12CAP, BURNER (LF & RR)
12CAP, BURNER (LR & RF)
13BASE, BURNER (DUAL BURNER, LF)
13MAY 7540P036-60
13MAY 7540P038-60
13MAY 7540P037-60
14MAY 3807F751-51
15CONTROL, (EOC)
16MAY 7724P200-60
