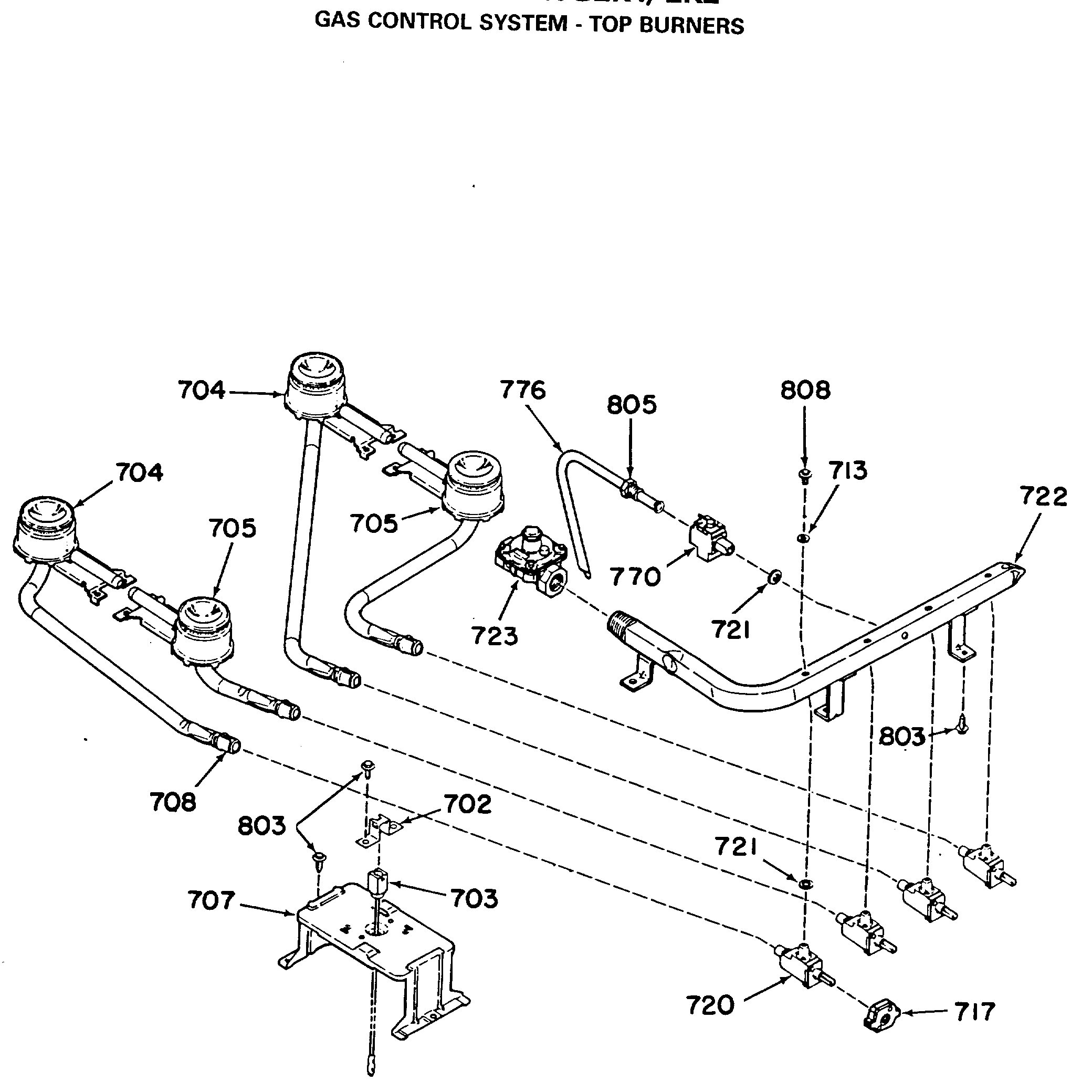

JGSP10GEK2 GAS CONTROL SYSTEM-TOP BURNERS

JGSP10GEK2 GAS CONTROL SYSTEM-TOP BURNERS

Written by

in

JGSP10GEK2 GAS CONTROL SYSTEM-TOP BURNERS

Products

PositionProduct
702IGNITER BRACKET
703GEN WB02X9277
703SPARK IGN ELECTRODE LT
704TOP BURNER-REAR-RIGHT
704GEN WB28X0085
705GEN WB28X0084
705GEN WB28X0087
707SUPPORT-TOP BURNER-R/L
708GEN WB02X9007
713VALVE SCREW GASKET
717GEN WB02X9280
717SWITCH-VALVE-TOP BURNER
720GAS VALVE-LF/LR/RR
721VALVE GASKET
722GEN WB02X9279
723GEN WB21X0465
770BURNER BOX BOTTOM
770VALVE–SHUT-OFF
776GEN WB02X9166
803WB1M1 GE Oven Screw
805NUT
808GEN WB01X1121
