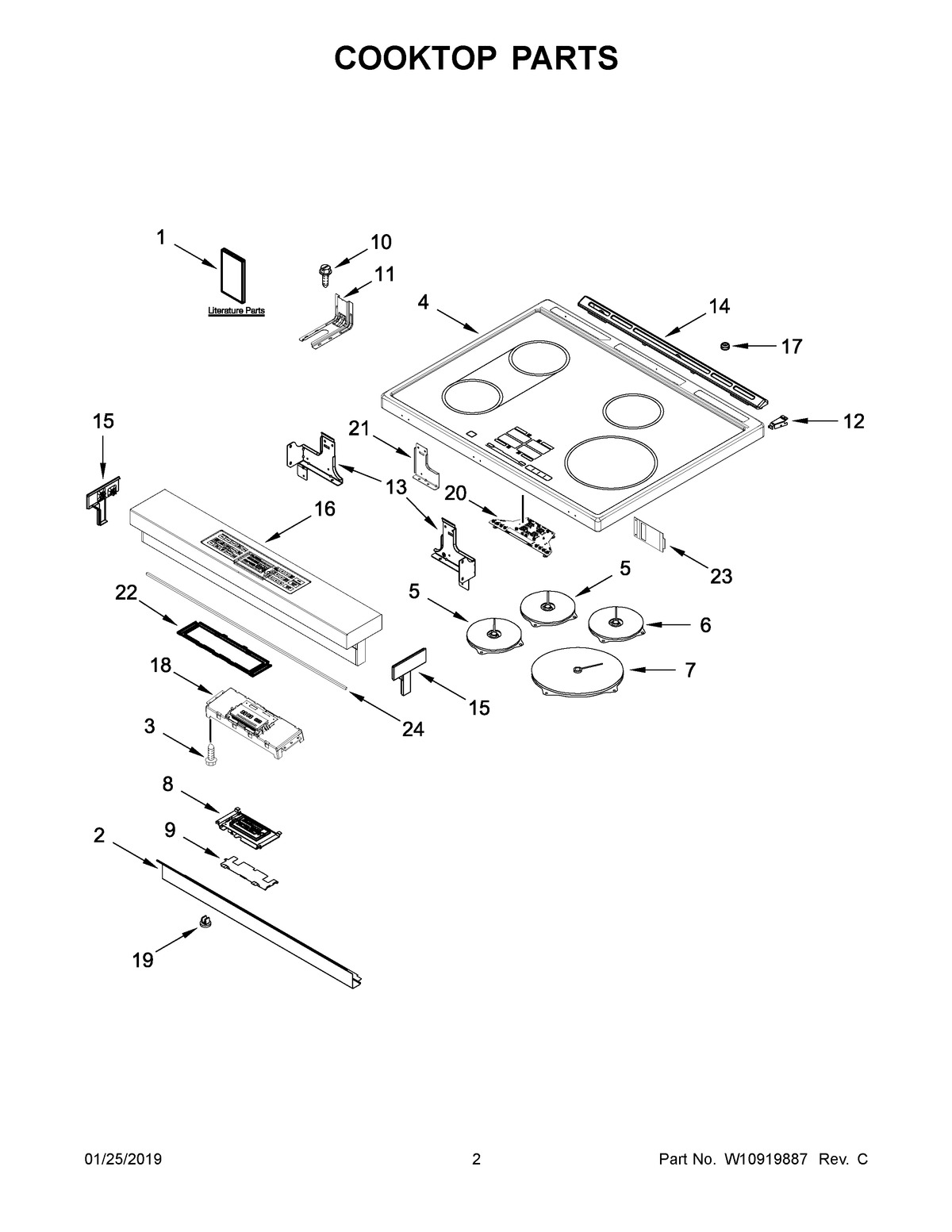

JIS1450DS1 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10598170
NI	MAY W10575120
NI	MAY W10580316
NI	CLIP, WIRE
1B	SHEET, TECH
1	INSTALLATION, INSTRUCTIONS
1E	MAY W10400065
1D	MAY W10400064
1A	USE AND CARE GUIDE
1C	WIRING DIAGRAM
2	MAY W10743281
3	SCREW
4	COOKTOP (BLACK)
5	ELEMENT (LEFT FRONT AND LEFT REAR)
6	HOTPLATE (LEFT FRONT AND RIGHT REAR)
7	HOTPLATE (RR)
8	MAY W10759324
9	BRACKET, CONTROL
10	SCREW, ANTI-TIP KIT
11	BRACKET, ANTI-TIP
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13A	SUPPORT, COOKTOP (LEFT)
13	SUPPORT, COOKTOP (RIGHT)
14	VENT, TRIM TOP (STAINLESS)
15A	ENDCAP (STAINLESS (RIGHT))
15	ENDCAP (STAINLESS (LEFT))
16	CONSOLE (STAINLESS)
17	BUMPER
18	CONTROL, ELECTRONIC (MAXWELL)
19	GROMMET
20	USER, INTERFACE
21	BRACKET, CONSOLE (CE
22	BRACKET, CONTROL
23	SHIELD, KEYPAD
24	GASKET, CONSOLE/COOKTOP
