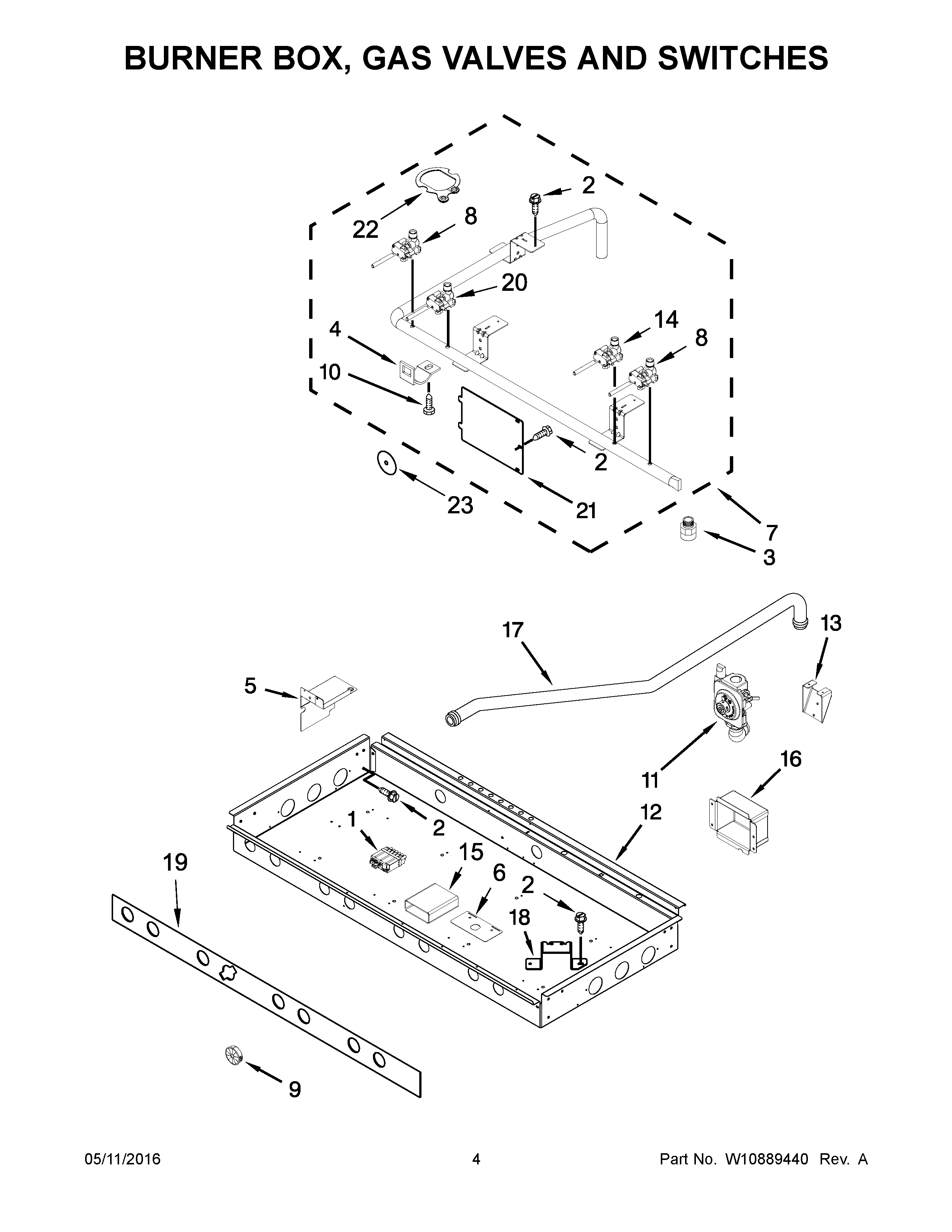

JLRP536WP00 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LF-RIGHT)
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LR)
NIMAY W10368335
NIMAY W10276501
NILINER (NOT A SERVICEABLE PART)
1MODULE, SPARK
2MAY 7101P426- 60
3ADAPTER, FEMALE
4BRACKET, VALVE
5BRACKET, SPARK MODULE
6MAY W10115855
7MAY W10815788
8VALVE, SINGLE (LEFT REAR, RIGHT REAR, CENTER FRONT)
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10813917
12MAY W10371520
13MAY W10308042
14VALVE, SIMMER (CENTER REAR)
15INSULATION, SPARK MODULE
16MAY W10308051
17MAY W10348600
18BRACKET, BURNER
19MAY W10145622
20VALVE, GAS (LF)
21MAY W10115843
22MAY 8286930
23MAY W10189177
