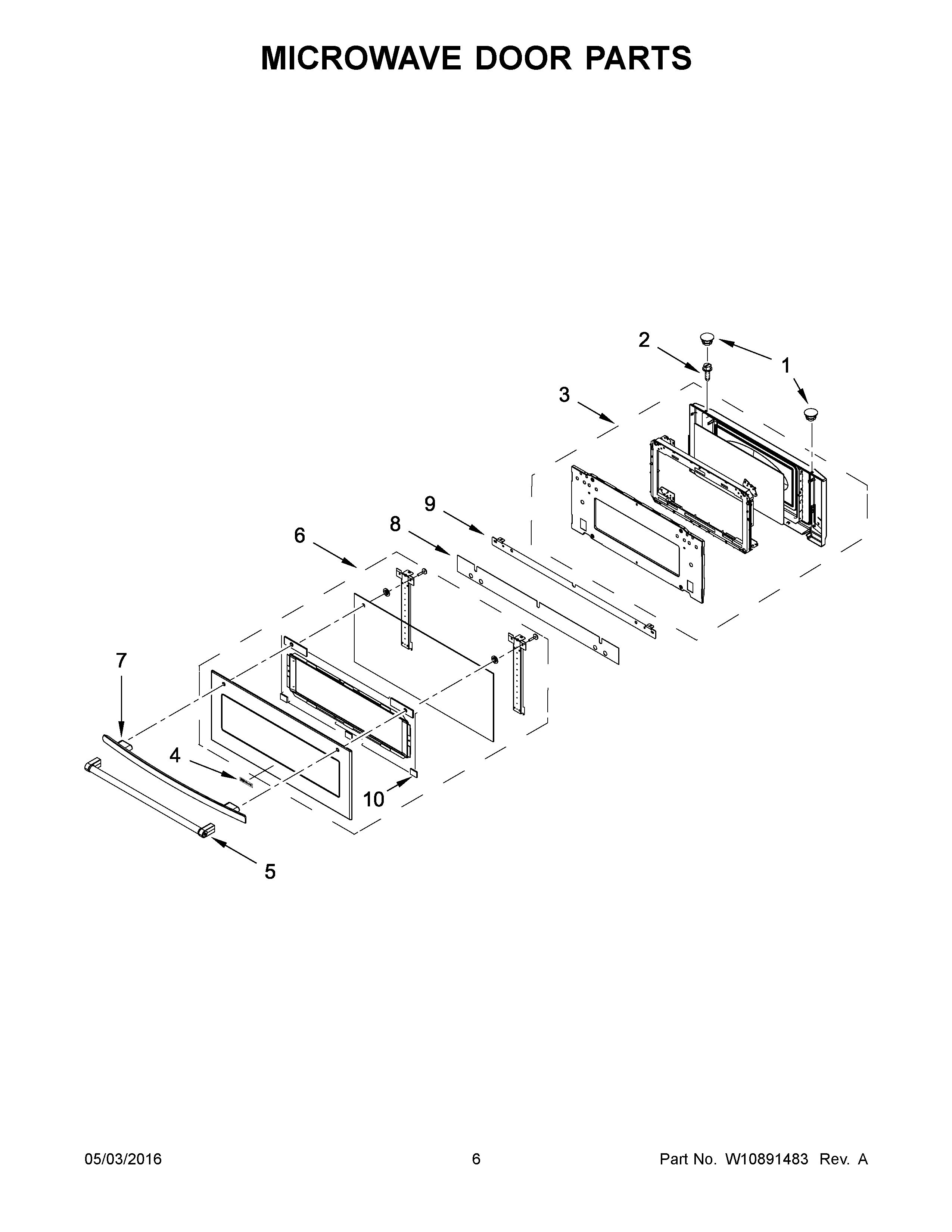

JMC2430DB01 04 – MICROWAVE DOOR PARTS

Products

PositionProduct
1CAP, SCREW
2SCREW (8BX3/8-NI)
3ASSEMBLY, INNER DOOR
4ASSEMBLY, BADGE (BLACK)
4AASSEMBLY, BADGE (STAINLESS)
4BMAY W10159578
5ASSEMBLY, DOOR HANDLE (STAINLESS)
6ASSEMBLY, OUTER DOOR (BLACK)
6AASSEMBLY, OUTER DOOR (STAINLESS)
7AASSEMBLY, DOOR HANDLE (STAINLESS)
7ASSEMBLY, DOOR HANDLE (BLACK)
8FOAM, DOOR HANDLE
9BRACKET, BALANCING DOOR (BLACK MODEL ONLY)
10SPACER, VENT
