JMW2430LM02 04 – OVEN DOOR PARTS

JMW2430LM02 04 – OVEN DOOR PARTS

Written by

in

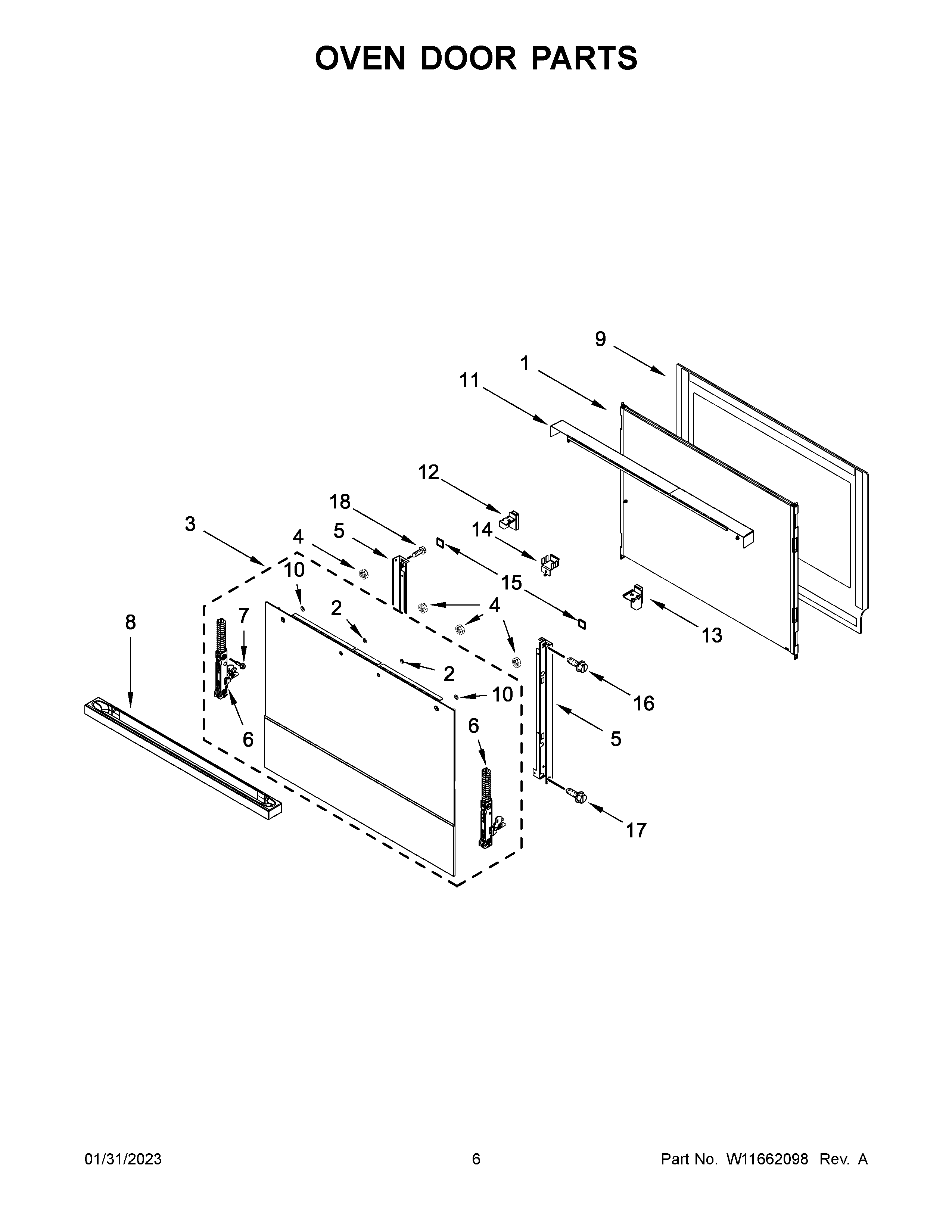

JMW2430LM02 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11600213 Whirlpool Oven Door Glass
2SPACER, HANDLE
3W11602613 Whirlpool Door Glass
4W11602632 Whirlpool Nut Assembly
5AW11598127 Whirlpool Support Bracket
5W11598126 Whirlpool Support Bracket
6HINGE, DOOR (LEFT)
6AHINGE, DOOR (RIGHT)
7WP3196183 Whirlpool Screw
8W11411894 Whirlpool Door Handle Assembly
9W11602610 Whirlpool Oven Glass Door
10W11676355 Whirlpool Washer
11TRIM-VENT
12W11598130 Whirlpool Oven Support Bracket
13W11598128 Whirlpool Oven Support Bracket
14W11598131 Whirlpool Oven Clip
15WPW10517428 Whirlpool Spacer
16WP694091 Whirlpool Screw
17W11617225 Whirlpool Oven Screw
18W10443110 Whirlpool Screw
