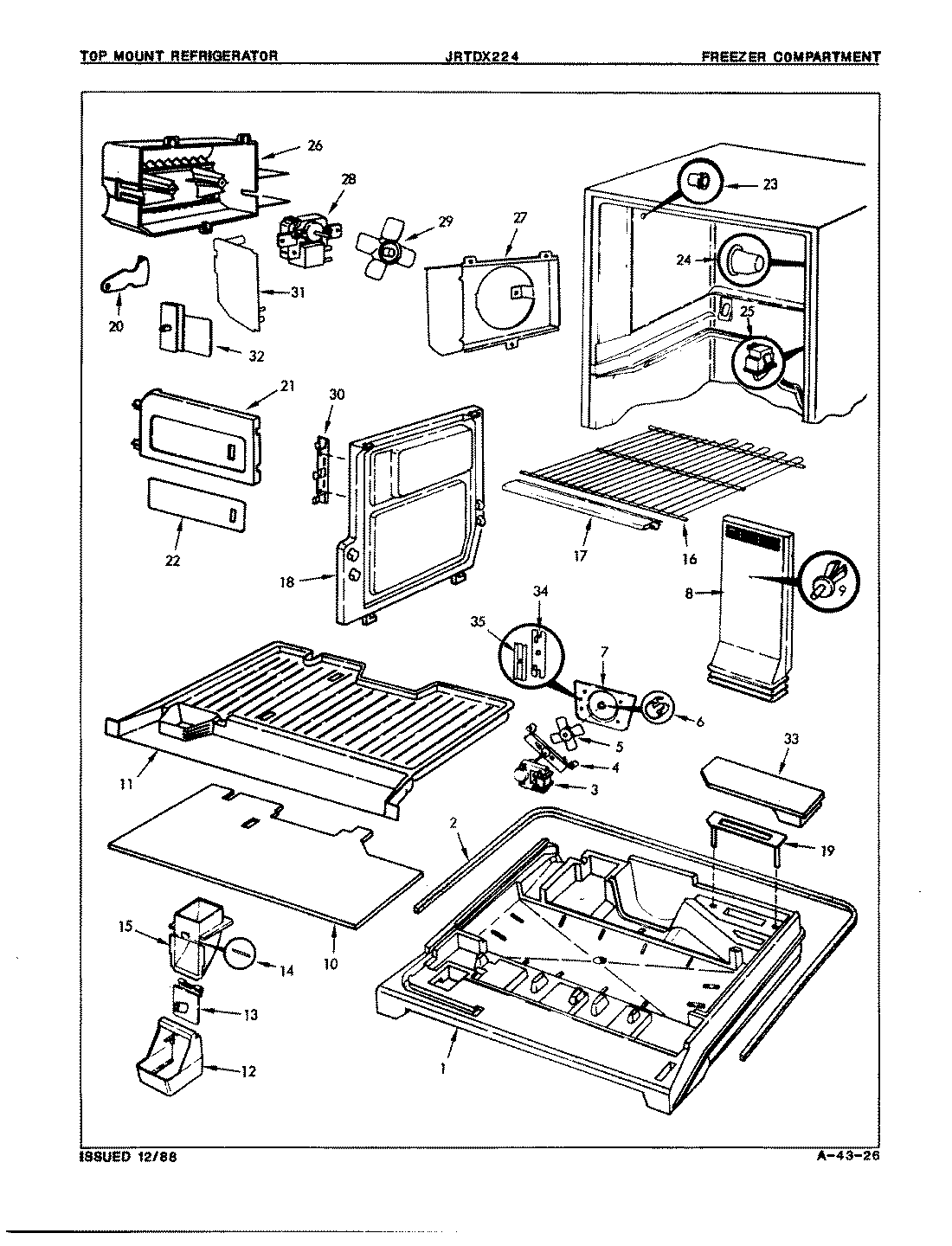

JRTDX224R 05 – FREEZER COMPARTMENT (B/M 7B24A)
Written by
in
JRTDX224R 05 – FREEZER COMPARTMENT (B/M 7B24A)
Products
Position
Product
1
MAY 65766-1
2
MAY 66325-8
3
MAY 60565-1
3
MAY 54482-10
3
MAY 29675-30
3
MAY 406062-1
4
MAY 64856-1
4
MAY 400015-12
5
MAY 64359-1
6
MAY 420092-900
7
MAY 60608-2
8
MAY 60084-7
9
MAY 66045-1
10
MAY 66403-7
11
MAY 60474-15
12
MAY 60503-1
13
MAY 60502-3
13
MAY 65275-3
14
MAY 60505-1
15
MAY 60504-1
16
MAY 60514-1
17
MAY 60414-44
18
MAY 65622-1
19
MAY 60657-1
19
MAY 400021-1
20
MAY 65631-1
21
MAY 65627-2
22
MAY 65755-11
23
MAY 60313-1
24
MAY 65570-1
25
MAY 55732-2
26
MAY 65621-1
27
SCREW
27
MAY 65639-1
28
MAY 65754-1
28
MAY 420052-900
28
MAY 420051-900
28
MAY 400018-103
29
MAY 65676-1
29
MAY 65688-2
30
MAY 66146-1
31
MAY 65638-1
32
MAY 65716-1
32
MAY 65662-1
33
MAY 60656-1
34
MAY 12096-1
35
MAY 109-5
35
MAY 65150-1
←
