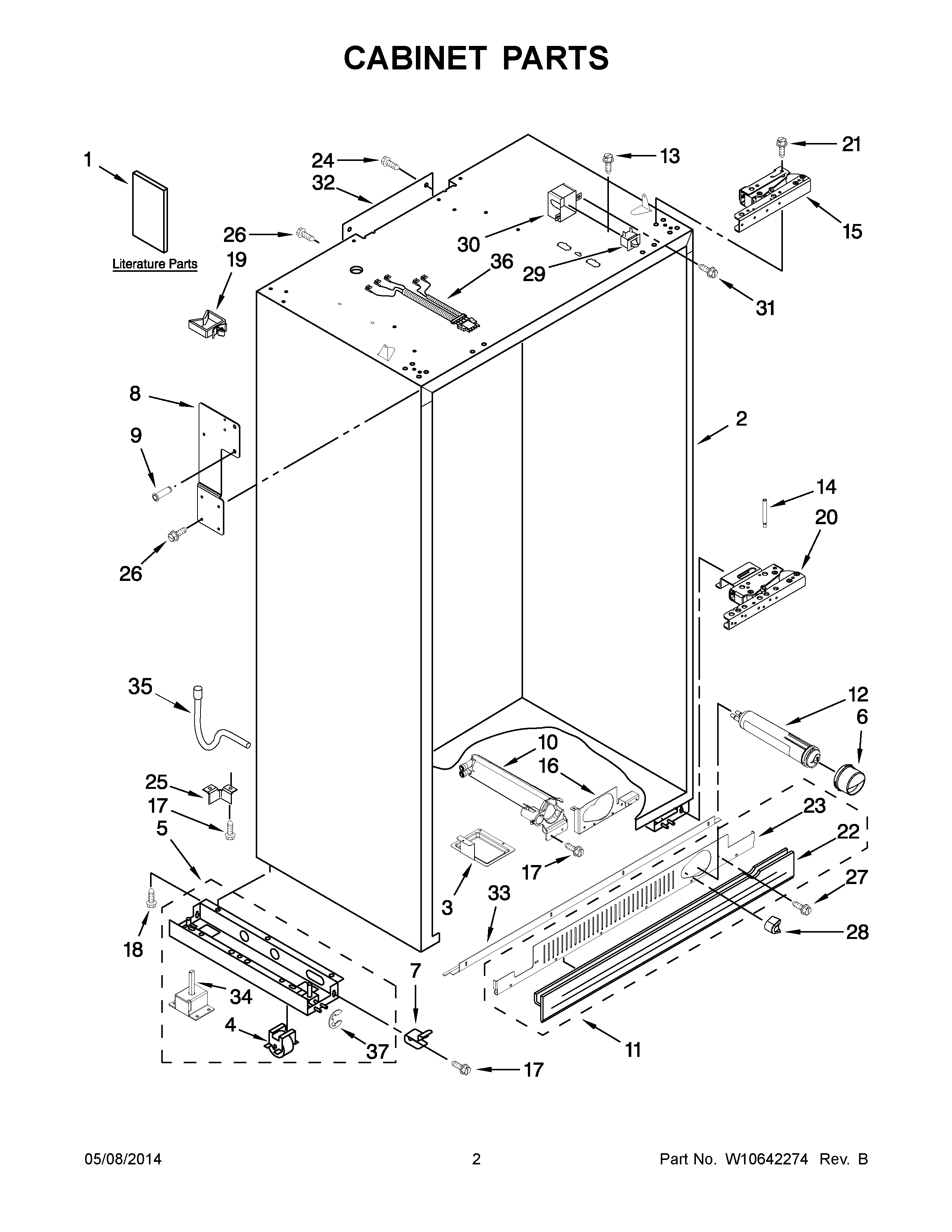

JS42NXFXDW05 02 – CABINET PARTS

Products

Position	Product
1	MAY W10234149
1	MAY W10303992
1	MAY W10246792
1	MAY W10234151
1	MAY W10379136
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	MAY 2260518B
7	Mounting Stud, Grille
8	SUPPORT, GRILLE (RH)
8	SUPPORT, GRILLE (LH)
9	Nutsert (4)
10	MAY W10121140
11	GRILLE KIT ASSY (INCLUDES 22 & 23)
12	Filter, Water
13	Screw 8-32 x 5/16
14	Pin-Stop, Door
15	Hinge (Top) (FC)
15	Hinge (Top) (RC)
16	BRACKET, FILTER
17	MAY W10001250
18	SCREW
19	Wire Clip (5)
20	MAY W10182693
20	MAY W10182692
21	Screw 1/4-20 x 5/8
22	Skirt-Grille, Bottom
23	Grille Bottom, Front
24	MAY 1157158
25	Bracket, Support Base (Rear) (2)
26	SCREW
27	Screw
28	Button, Filter (Black)
29	SWITCH, LIGHT
30	COVER, SWITCH (LH)
30	COVER, SWITCH (RH)
31	Screw
32	Cover, Rear
33	MAY W10250962
34	LEVELER ASSY
35	MAY 2314064
36	MAY W10209510
37	Ring, Retainer
