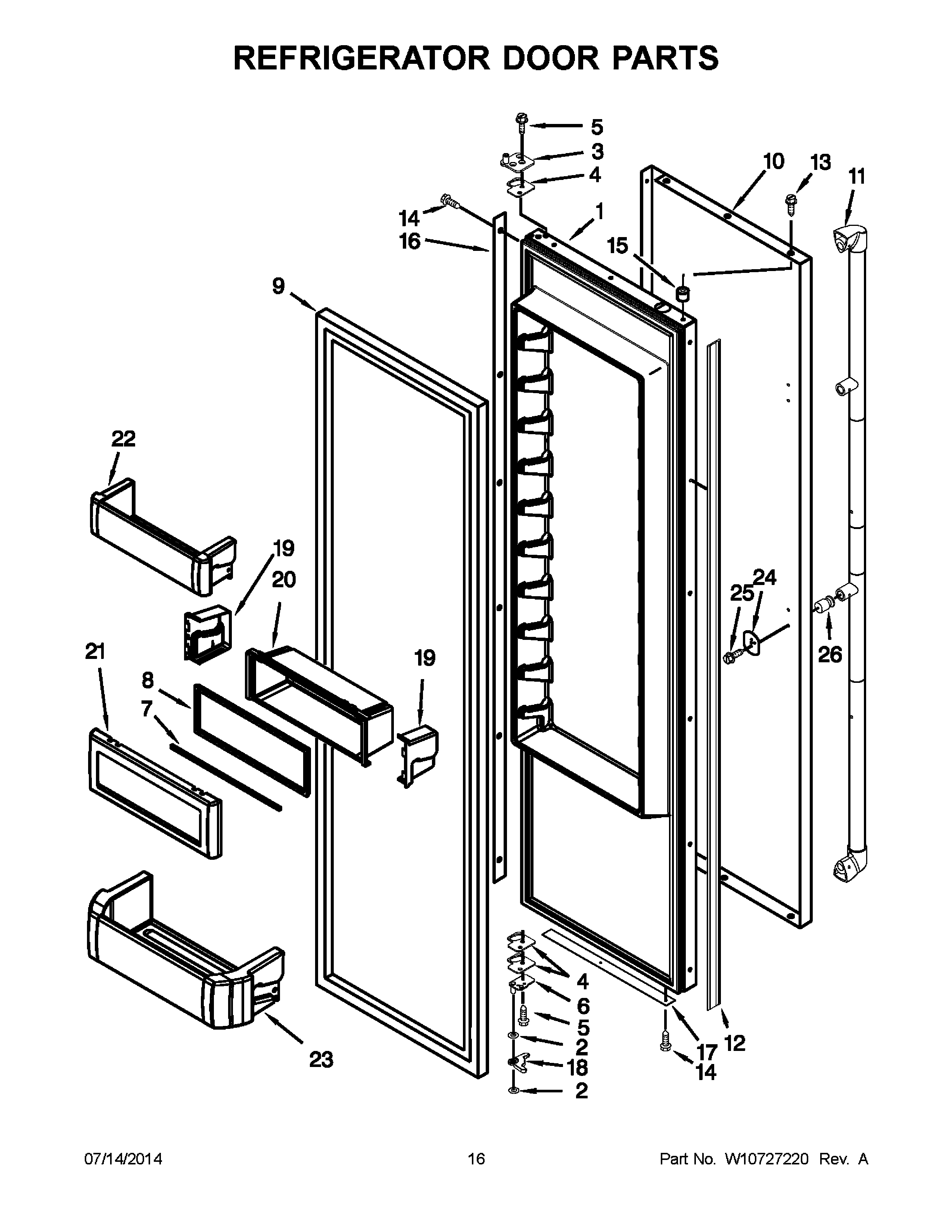

JS48PPDUDB20 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Includes Item 9)
2WASHER
3ASSEMBLY, TOP HINGE
4Spacer-Door, Top & Bottom
5MAY W10162602
6Hinge Assembly, Bottom
7MAY 2222797
8MAY 2222983
9MAY W10694212
10MAY W10523734
11Handle, Door
12SPACER, DOOR-SKIN (HANDLE SIDE)
13SCREW
14Screw, 8-15 x .500 (Stainless Steel)
15Spacer, Door-Skin (Top)
16SPACER, DOOR
17Spacer, Door-Skin (Bottom)
18MAY W10482554
19AEND CAP (LEFT HAND)
19END CAP (RIGHT HAND)
20MAY W10323037
21MAY 2257617
22BIN, DOOR
23BIN, DOOR
24MAY W10127710
25Screw
26STUD, HANDLE MOUNTING
