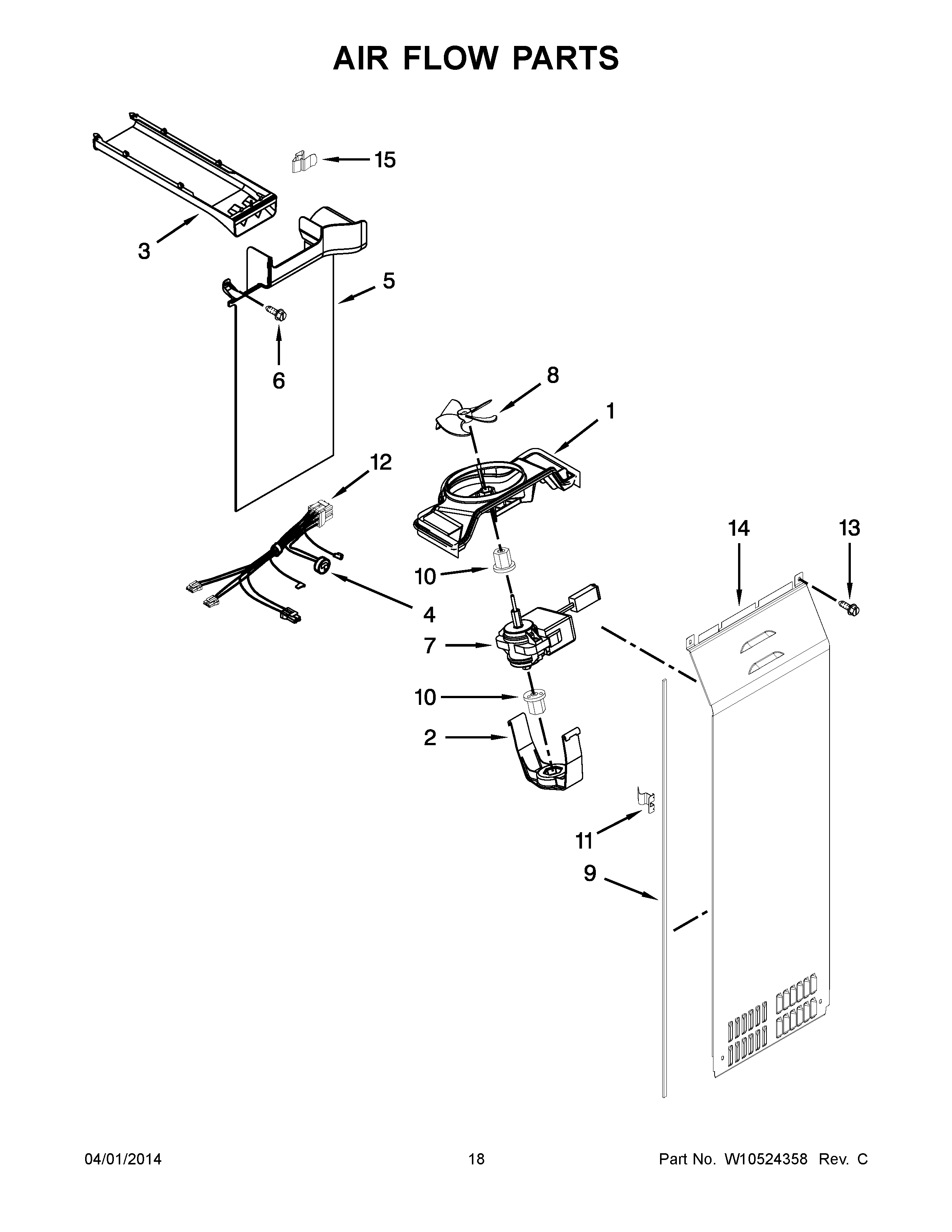

JSC24C8EAM00 10 – AIR FLOW PARTS

Products

Position	Product
1	MAY W10251462
2	MAY W10260421
3	DUCT, UPPER AIR
4	MAY W10260437
5	MAY W10382902
6	SCREW, 8 X 1/2
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	MAY W10240370
10	GROMMET, MOTOR
11	MAY W10369602
12	MAY W10242409
13	SCREW
14	COVER, EVAPORATOR
15	MAY W10331728
