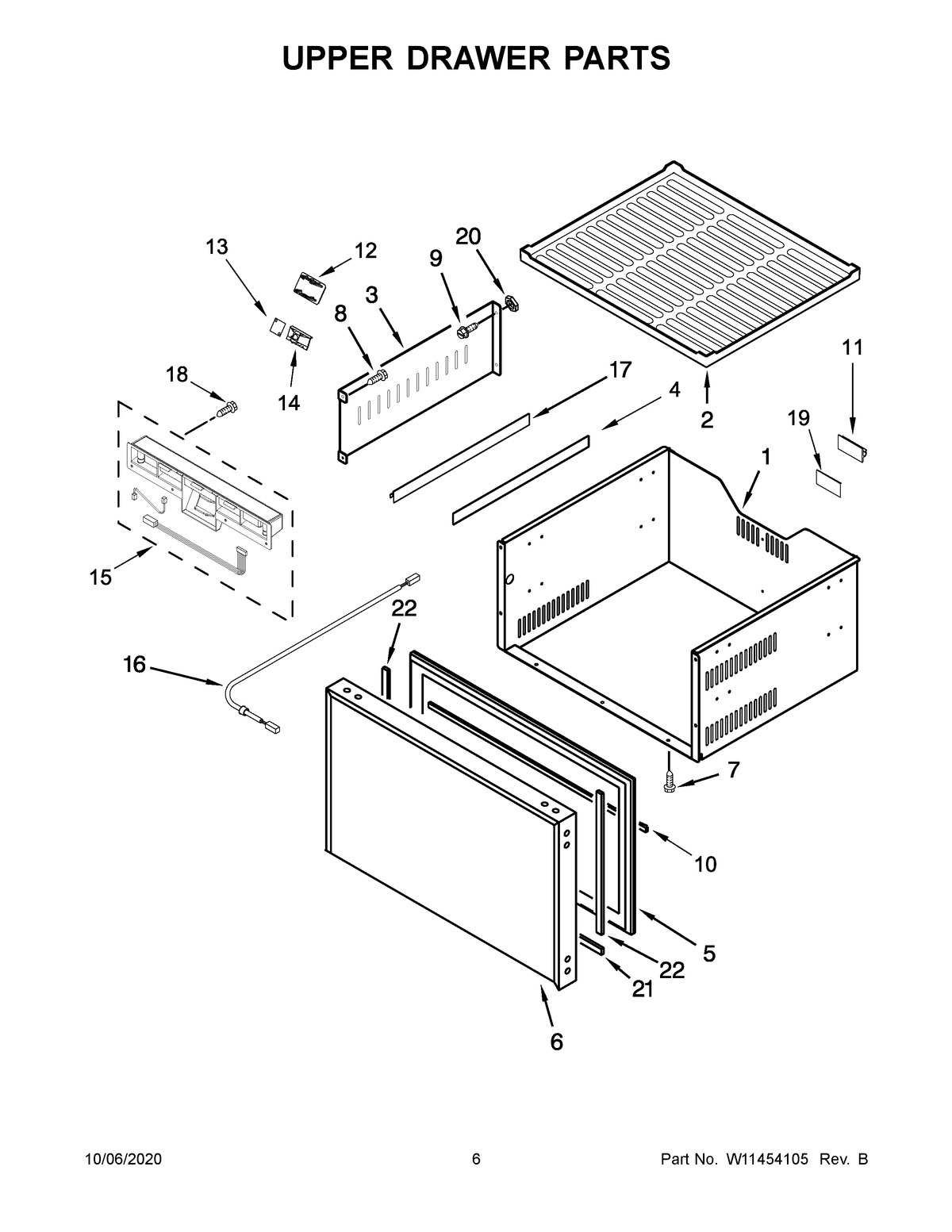

JUDFP242HX00 04 – UPPER DRAWER PARTS
Written by
in
JUDFP242HX00 04 – UPPER DRAWER PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
MAY W10788702
1
DRAWER BOX ASSEMBLY, UPPER
2
MAT, UPPER DRAWER
3
DRAWER PARTITION
4
WIRE SUPPORT TAPE
5
GASKET
6
TOP FOAMED DOOR ASSEMBLY
7
SCREW
8
MAY W10204809
9
SCREW
10
COLD AIR SEAL
11
SUPPORT, WIRE
12
LAMP COVER
13
LED LAMP
14
LAMP HOLDER
15
CONTROL ASSEMBLY
16
HARNESS, DISPLAY TO INDICATOR
17
SUPPORT, LEAD WIRE
18
SCREW
19
WIRE SUPPORT TAPE
20
NUT
21
DOOR GASKET, LONG
22
DOOR GASKET, SHORT
←
