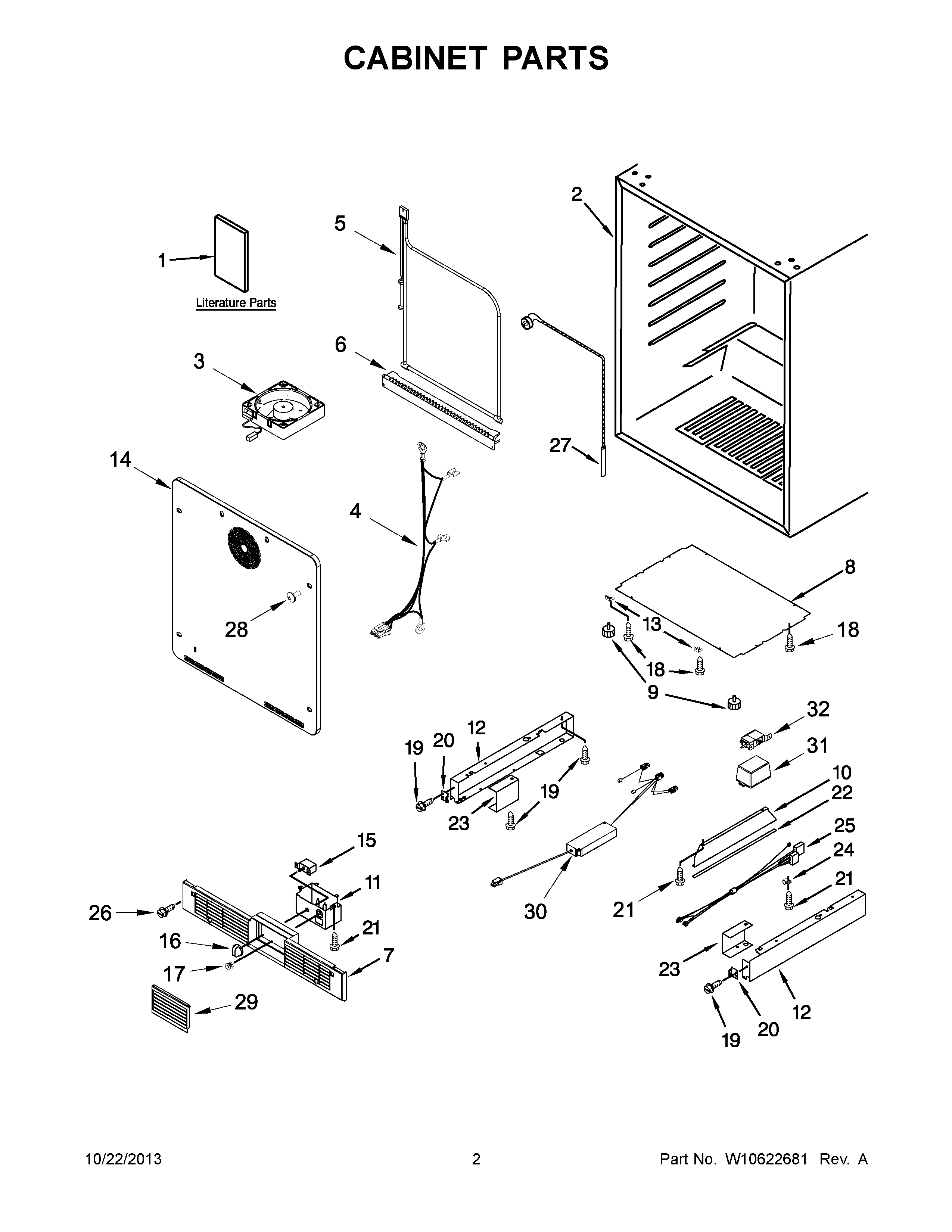

JUR24FLARS00 02 – CABINET PARTS
Written by
in
JUR24FLARS00 02 – CABINET PARTS
Products
Position
Product
1
MAY 2300280
1
MAY W10623039
1
MAY W10623040
2
LINER (NOT A SERVICEABLE PART)
3
MAY W10204942
4
MAY W10622796
5
MAY W10622776
6
MAY 4344747
7
MAY W10622777
8
MAY 4344762
9
MAY 4344763
10
MAY W10204638
11
MAY W10622780
12
MAY W10622781
12
MAY W10622785
13
MAY W10622786
14
MAY W10622787
15
MAY W10622789
16
MAY 4344768
17
MAY 4344767
18
MAY 4344826
19
MAY W10243104
20
MAY W10622791
21
MAY 4344825
22
MAY 4344823
23
MAY 4344820
23
MAY 4344821
24
MAY W10270482
25
MAY W10622792
26
MAY W10319184
27
MAY W10244414
28
MAY 4344793
29
MAY W10622795
30
MAY W10646523
31
MAY W10646526
32
MAY W10646528
←
