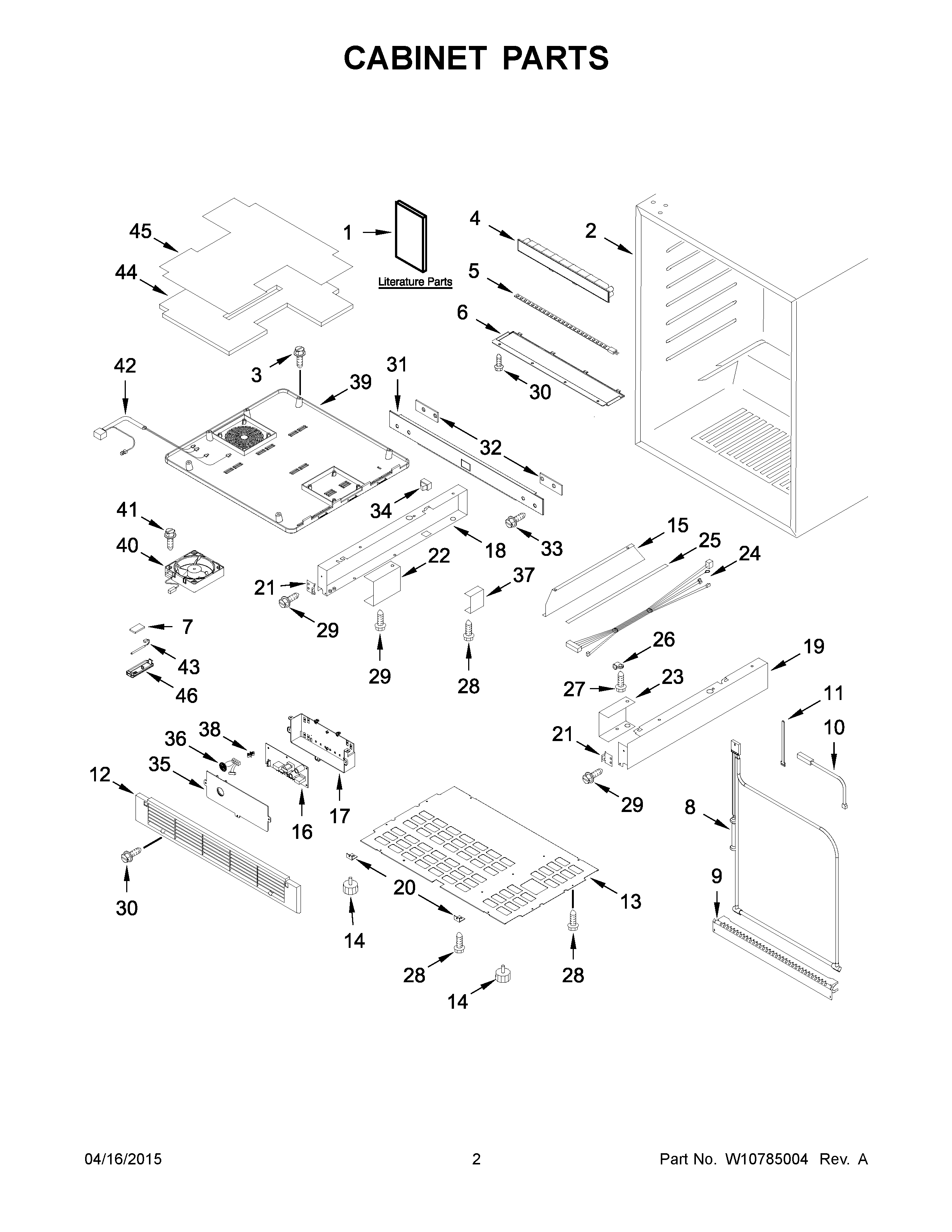

JUR24FLECX00 02 – CABINET PARTS
Written by
in
JUR24FLECX00 02 – CABINET PARTS
Products
Position
Product
1
MAY W10800030
1A
MAY W10741579
2
LINER (NOT A SERVICEABLE PART)
3
MAY W10774183
4
MAY W10800027
5
MAY W10797323
6
MAY W10622774
7
MAY W10204948
8
MAY W10292475
9
MAY 4344747
10
MAY W10772858
11
MAY 4344829
12
MAY W10204635
13
MAY W10772863
14
MAY 4344763
15
MAY W10778959
16
MAY W10797386
17
MAY W10772866
18
MAY W10800049
19
MAY W10800050
20
MAY 4344771
21
MAY W10772865
22
MAY 4344820
23
MAY 4344821
24
MAY W10772870
25
MAY 4344823
26
MAY W10270482
27
MAY 4344825
28
MAY 4344826
29
MAY W10780355
30
MAY W10319184
31
MAY W10780356
32
MAY W10780357
33
MAY W10780349
34
MAY W10721454
35
COVER, SPEAKER SENSOR
36
SPEAKER
37
MAY W10788699
38
PCB STANDOFF
39
MAY W10797392
40
MAY W10204942
41
MAY W10205061
42
MAY W10797393
43
MAY W10772916
44
MAY W10797394
45
MAY W10797395
46
MAY W10778979
←
