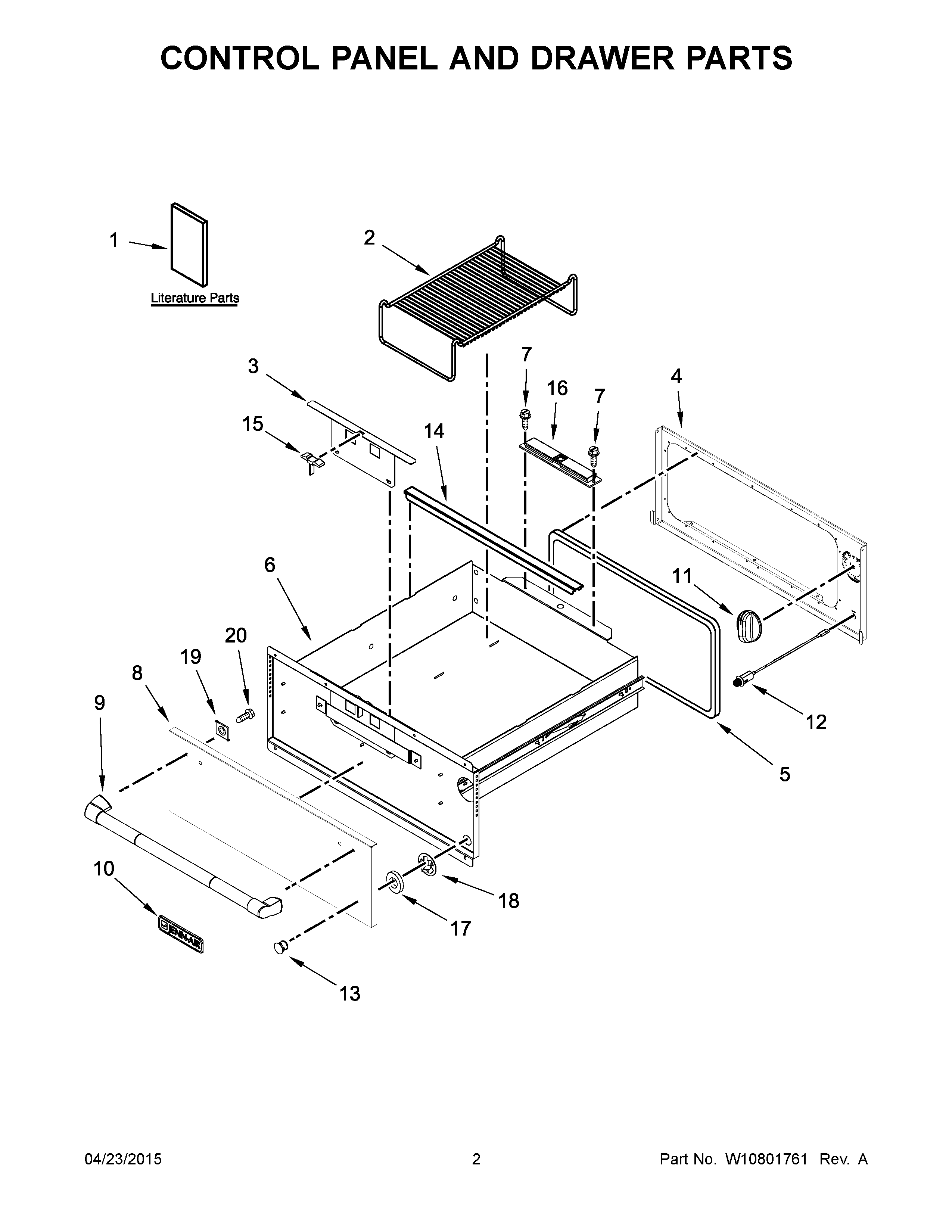

JWD3030EP00 02 – CONTROL PANEL AND DRAWER PARTS
Written by
in
JWD3030EP00 02 – CONTROL PANEL AND DRAWER PARTS
Products
Position
Product
1B
MAY W10736619
1A
SHEET, TECH
1
MAY W10736617
2
RACK, WARMING DRAWER
3
SLIDE, VENT
4
PANEL, FRONT
5
GASKET, DRAWER
6
ASSEMBLY, DRAWER
7
Screw
8
MAY W10737286
9
ASSEMBLY, DOOR HANDLE (STAINLESS)
10
MAY W10159578
11
KNOB, THERMOSTAT
12
LIGHT, INDICATOR
13
LENS, INDICATOR
14
RAIL, PAN
15
GRIP, VENT
16
MAGNET
17
SPACER, LENS
18
CLIP, LENS RETAINER
19
MAY 3823F017-45
20
SCREW
←
