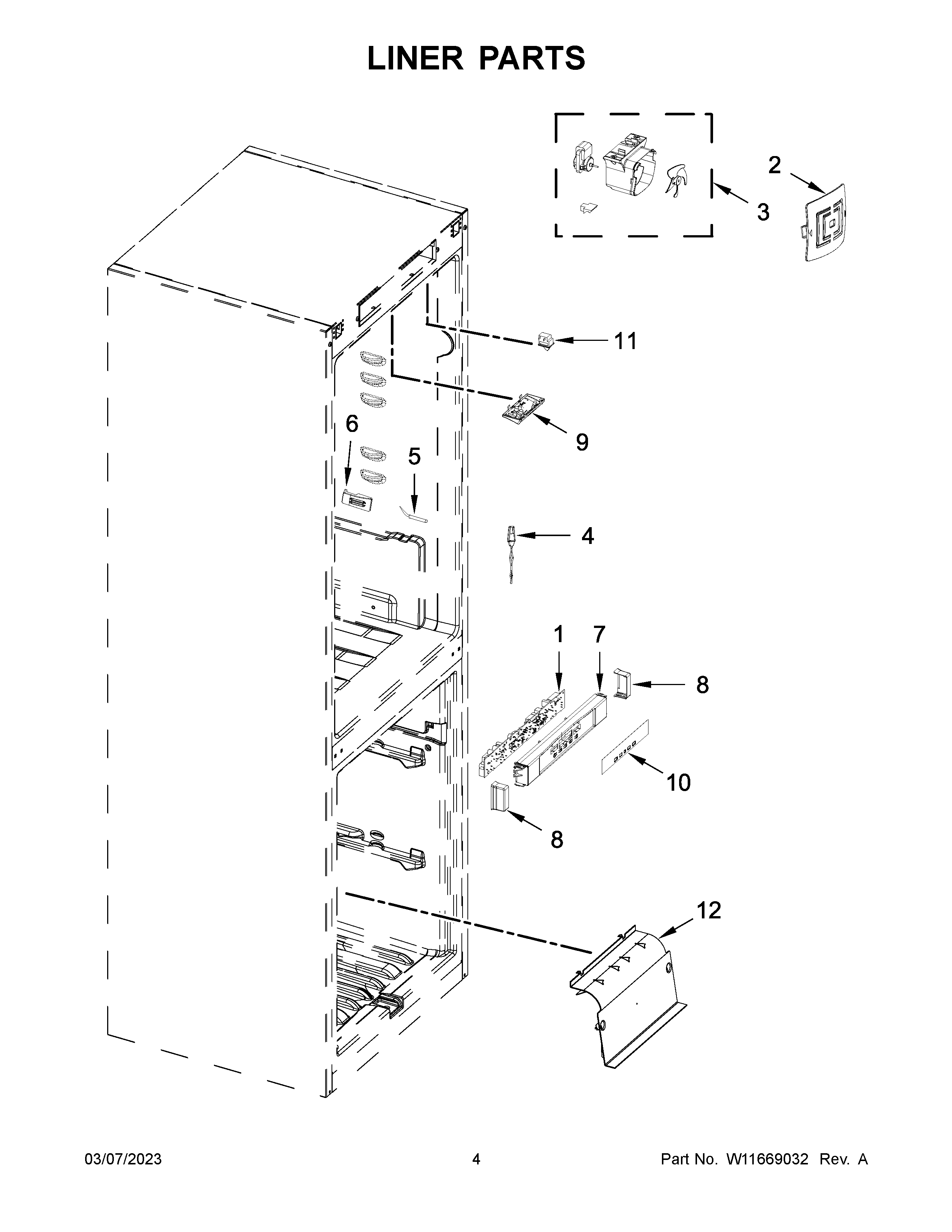

KBBX104EPA04 03 – LINER PARTS

Written by

Products

Position	Product
1	CONTROL, ELECTRONIC
2	COVER, FAN
3	ASSEMBLY, EVAPORATOR MOTOR
4	PIN, DRAIN
5	KIT, SERVICE SENSOR
6	COVER, SENSOR
7	HOUSING, CONTROL (ALSO ORDER OVERLAY)
8	ENDCAP, CONTROL HOUSING
9	LED ASSEMBLY
10	OVERLAY
11	SWITCH, LIGHT
12	CONVEYOR, AIR
