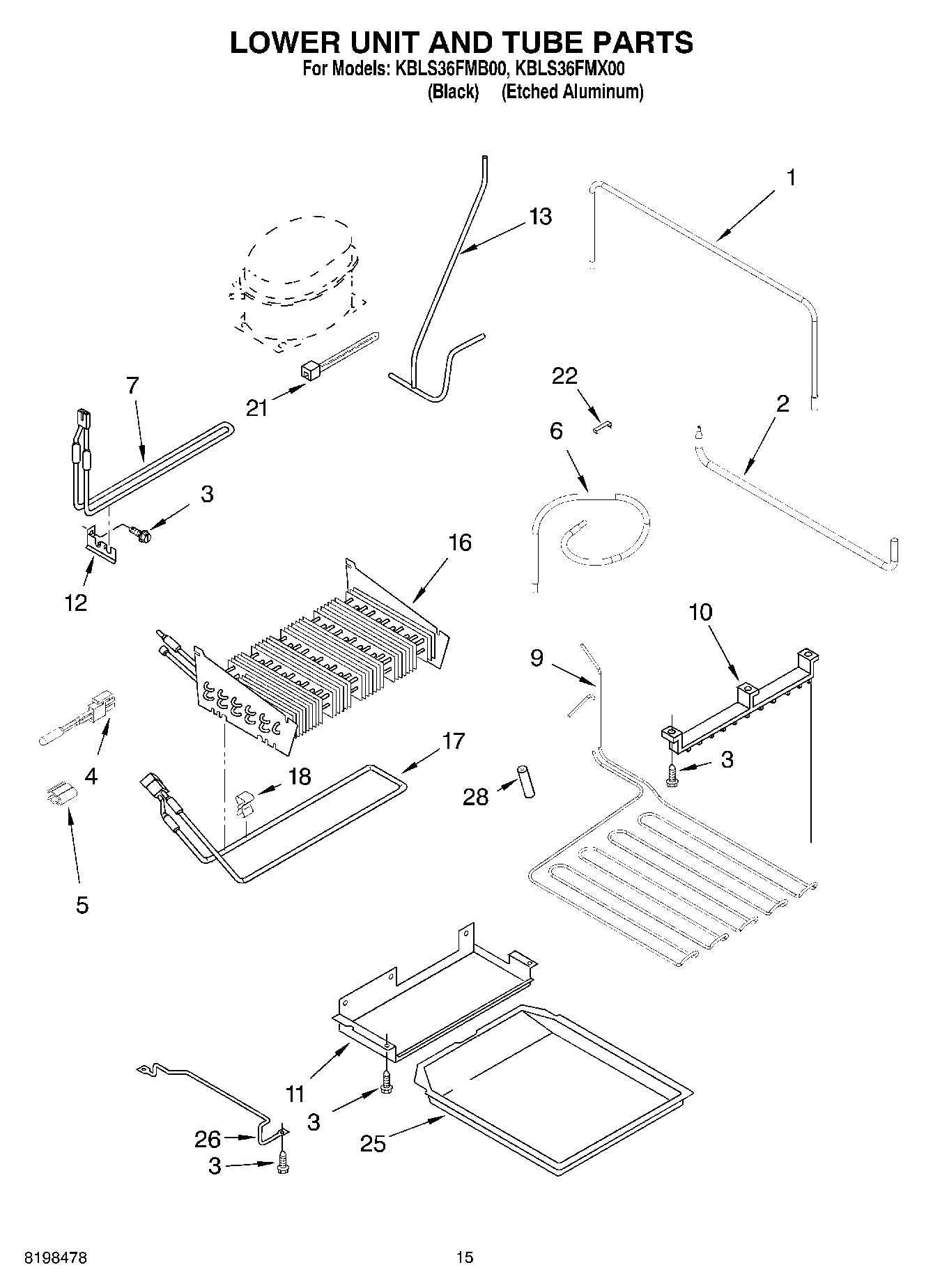

KBLS36FMB00 09 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Tube, Transition (Condenser)
2Tube, Transition (Drier/Restrictor)
3W11624204 Whirlpool Screw
4WP2188819 Whirlpool Thermistor
5CLIP
6Suction Tube
7Heater, Defrost (Rear)
9Heater, Drain Pan
10Hanger, Heater
11Shield, Drain Pan
12Support, Heater
13Tube, Discharge
16EVAPORATOR
17Heater, Defrost (Front)
18Clamp, Heater (2)
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Left)
26Bracket, Drain Pan (Right)
282215648 Whirlpool Refrigerator Dampener
