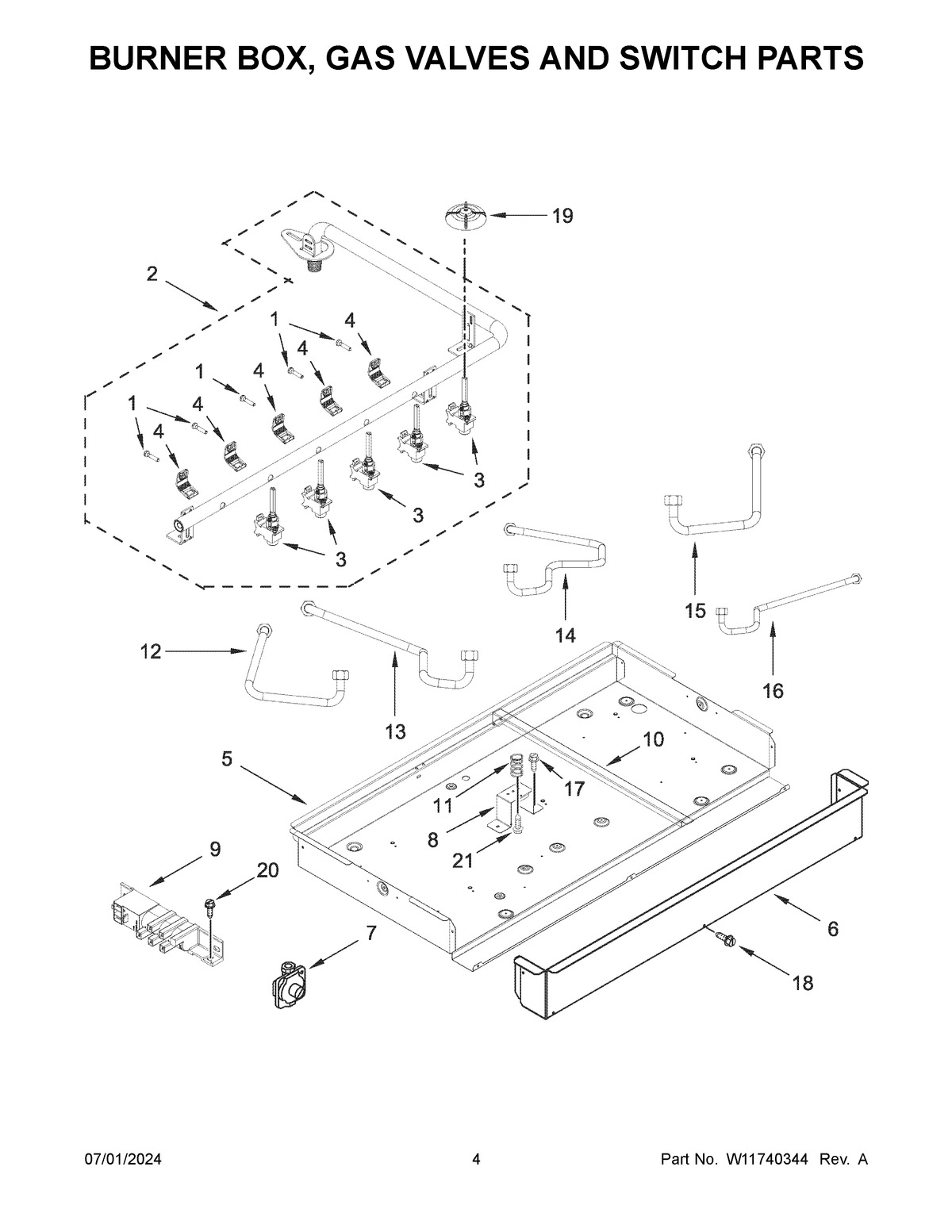

KCGG530PBL01 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

KCGG530PBL01 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

KCGG530PBL01 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIWA906B Whirlpool Cooktop Glass Scraper
NIW10216179 Whirlpool Wok Ring
18287057 Whirlpool Oven Screw
2MANIFOLD ASSEMBLY
3BVALVE-GAS
3AVALVE-GAS
3VALVE-GAS
48287055 Whirlpool Oven Mounting Bracket
5BOX, BURNER (NOT SERVICED)
6PANEL, FRONT
7W11087445 Whirlpool Pressure Regulator
8BRACKET, ORIFICE HOLDER
9W11703692 Whirlpool Speaker Module
10RAIL, COOKTOP REINFORCEMENT
11SPRING, ORIFICE HOLDER
12TUBING, GAS BURNER (LEFT FRONT)
13TUBING, GAS BURNER (LEFT REAR)
14TUBING, GAS BURNER (CENTER)
15TUBING, GAS BURNER (RIGHT FRONT)
16TUBING, GAS BURNER (RIGHT REAR)
17W10443110 Whirlpool Screw
18WP3196557 Whirlpool Screw
19W11507167 Whirlpool Switch Seal
20SCREW
21SCREW
