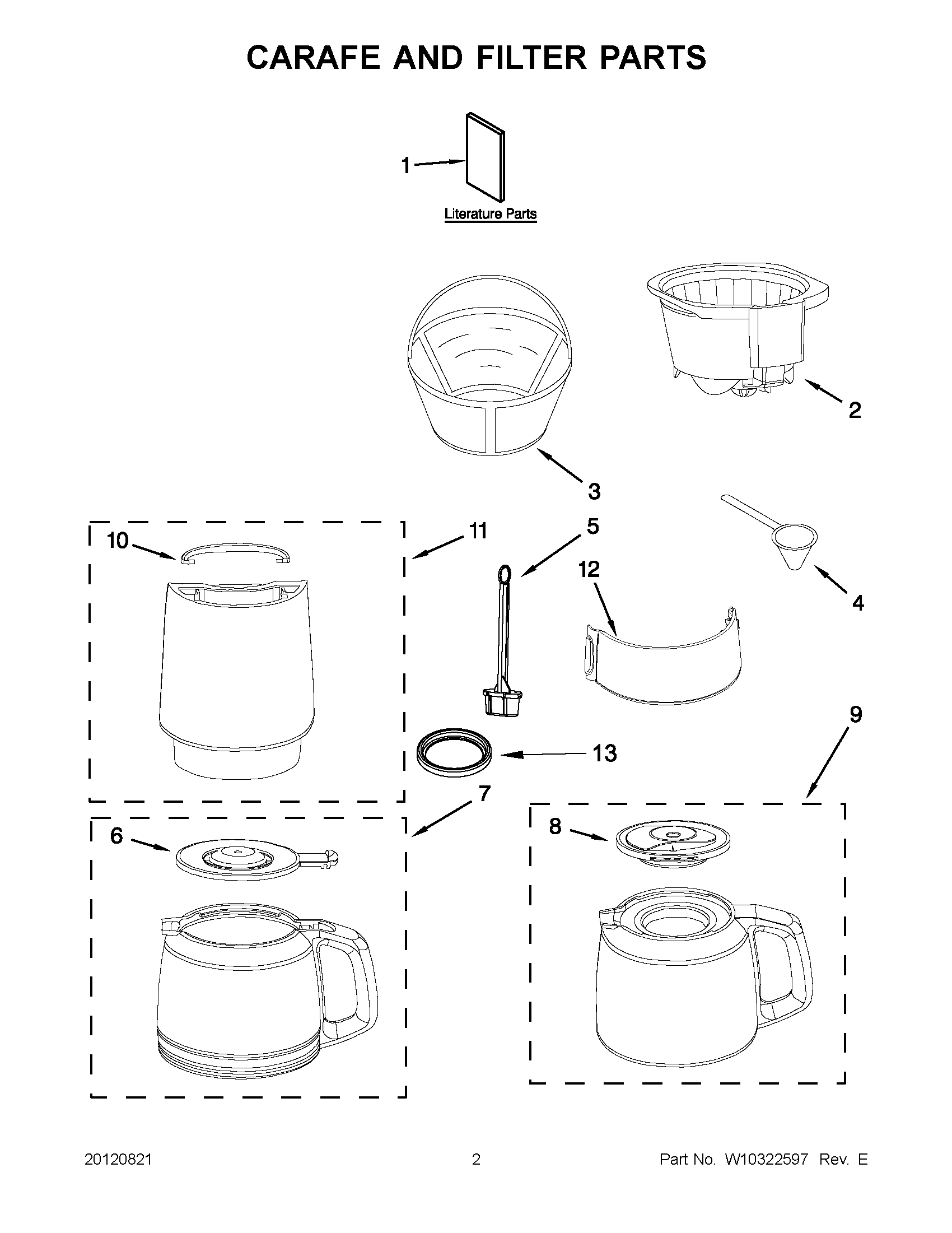

KCM222CS0 01 – CARAFE AND FILTER PARTS

KCM222CS0 01 – CARAFE AND FILTER PARTS

Written by

in

KCM222CS0 01 – CARAFE AND FILTER PARTS

Products

PositionProduct
1GUIDE, USE AND CARE
2BASKET, BREW
3FILTER, GOLDTONE
4SCOOP, COFFEE
5FILTER, WATER
6LID, GLASS CARAFE (BLACK)
7WPW10505658 Whirlpool Carafe
8LID, THERMAL (BLACK)
9WPW10505659 Whirlpool Carafe
10HANDLE, TANK
11TANK, WATER ASSY (14 CUP)
11TANK, WATER ASSY (12 CUP)
12DOOR, BASKET (WITH LOGO)
12DOOR, BASKET (WITHOUT LOGO)
13SEAL
