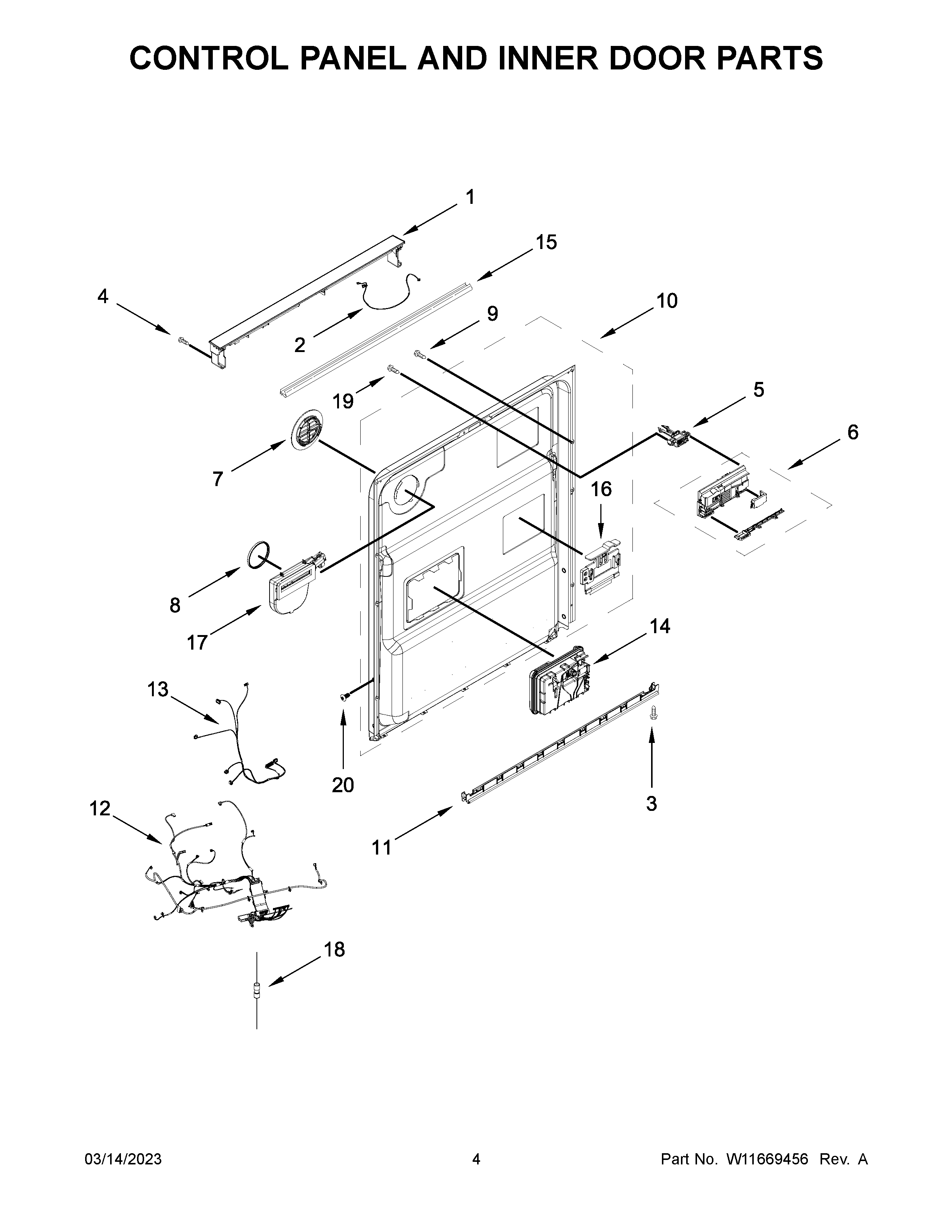

KDFE104KWH1 03 – CONTROL PANEL AND INNER DOOR PARTS

KDFE104KWH1 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

KDFE104KWH1 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11632693 Whirlpool Dishwasher Control Panel
1AW11633229 Whirlpool Control Panel
2W11747582 Whirlpool Wire Harness
3W11627527 Whirlpool Screw
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11672040 Whirlpool Electronic Control Board with Core
7W11545290 Whirlpool Deflector
8W11545539 Whirlpool Gasket Seal
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12W11662348 Whirlpool Dishwasher Wire Harness
13W11685311 Whirlpool Wire Harness
14DISPENSER
15W11412696 Whirlpool Seal
16W11088985 Whirlpool Bracket Assembly
17VENT
18W11397505 Whirlpool Wire Harness
19WPW10348408 Whirlpool Dishwasher Screw
20WP3400071 Whirlpool Screw
