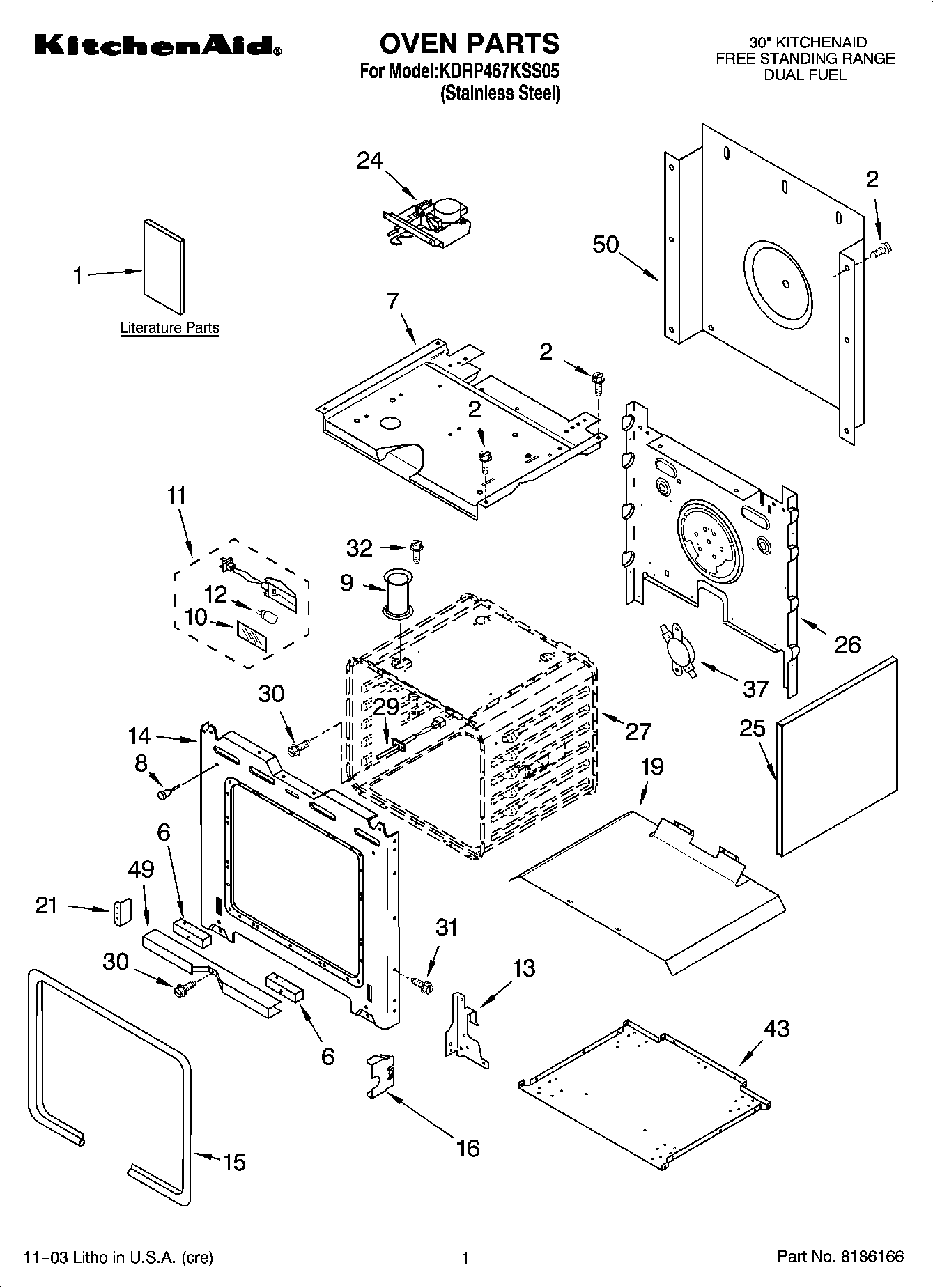

KDRP467KSS05 01 – OVEN PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Safer Cooking Tips
1	Literature Parts (Conversion Instructions)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet)
2	WP4449809 Whirlpool Screw
6	Spacer, Foam
7	Top, Chassis
8	4448520 Whirlpool Oven Bumper
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13	WP4455606 Whirlpool Right Hand Hinge
13	WP4455605 Whirlpool Left Hand Hinge
14	Frame, Front
15	W10858111 Whirlpool Door Gasket
16	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
21	Bracket, Support
24	Latch, Motorized
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP4449154 Whirlpool Screw
31	Screw
32	SCREW
37	WP8300802 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
50	Insulation, Back
50	Insulation, Wrap
50	WP4451747 Whirlpool Rear Cover
50	Insulation, Bottom Vent
