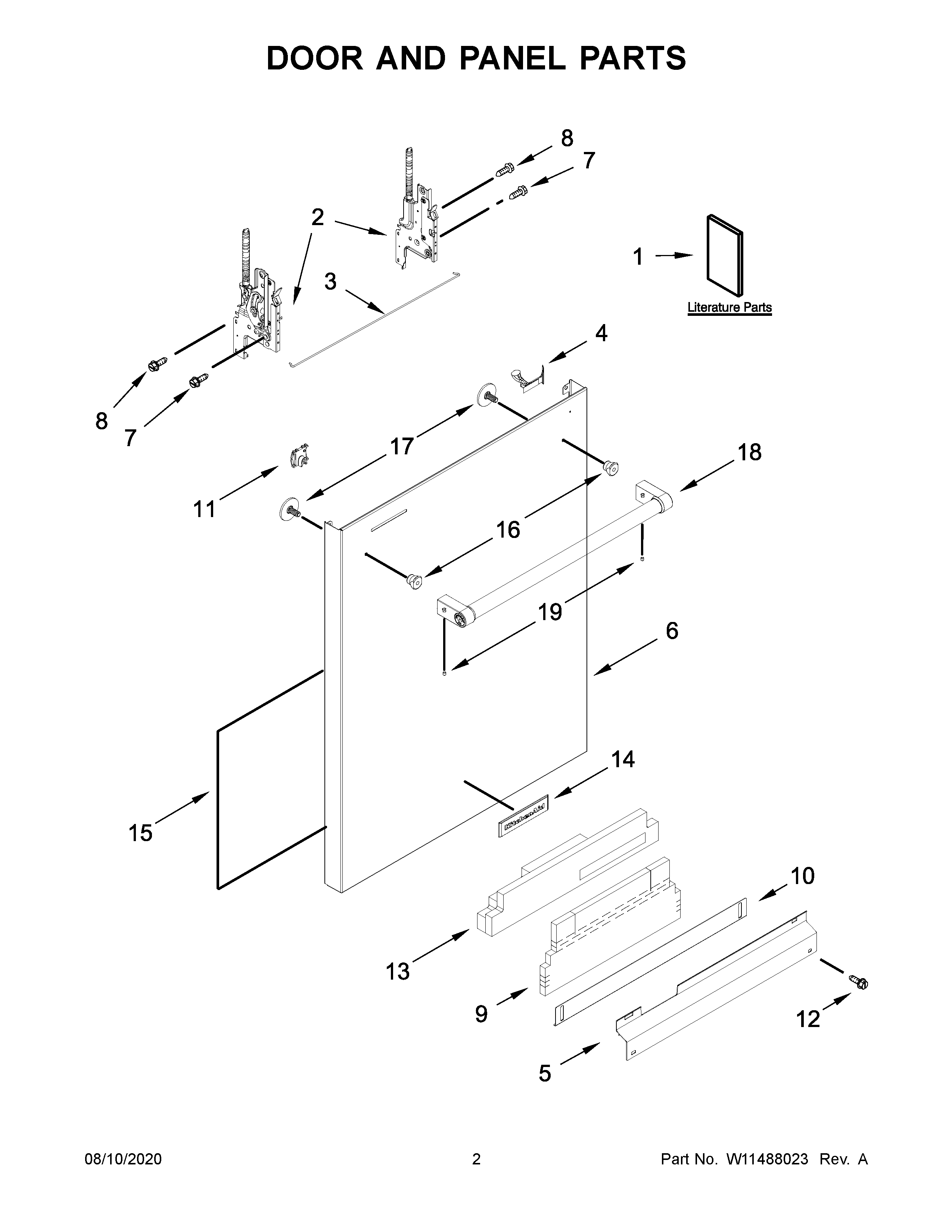

KDTE204KBL0 02 – DOOR AND PANEL PARTS

KDTE204KBL0 02 – DOOR AND PANEL PARTS

Written by

in

KDTE204KBL0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BTECH SHEET
1OWNERS MANUAL
2AW11712996 Whirlpool Door Hinge
2HINGE-DOOR
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5W11545318 Whirlpool Toekick Plate
5AW11110746 Whirlpool Panel
6BW11416371 Whirlpool Door Panel
6CW11416372 Whirlpool Front Panel Assembly
6W11462453 Whirlpool Panel
6AW11461681 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
10AW11467726 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11545329 Whirlpool Fastener
12AW11549054 Whirlpool Screw
13W11573700 Whirlpool Shield
14W10909682 Whirlpool Nameplate Tag
15W10919861 Whirlpool Insulation Pad
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10826179 Whirlpool Dishwasher Screw
18W10708004 Whirlpool Dishwasher Handle
19W10917698 Whirlpool Dishwasher Screw
