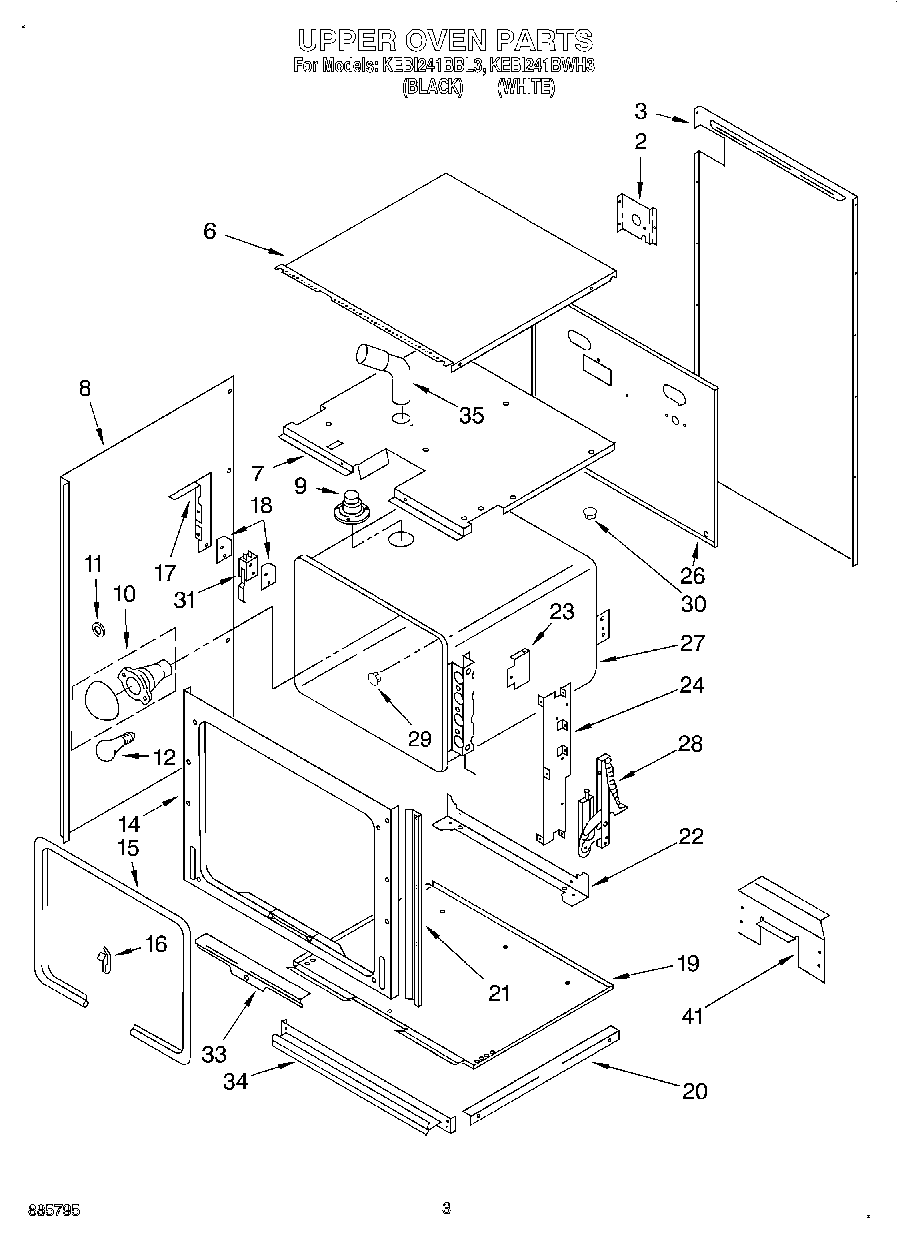

KEBI241BWH3 03 – UPPER OVEN, LITERATURE

Products

Position	Product
	Use & Care Guide
	Installation Instructions
	Tech Sheet
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Trim, Door Side (2) (Black Model)
21	Side Trim, Door (2) (White Model)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
26	Screw
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Screw Black (4))
34	Vent, Middle Trim (Screw (2))
34	Vent, Middle Trim (Black Model)
34	Vent, Middle Trim (White Model)
35	Tube, Vent
41	WPL 3182584
41	WPL 4454419
