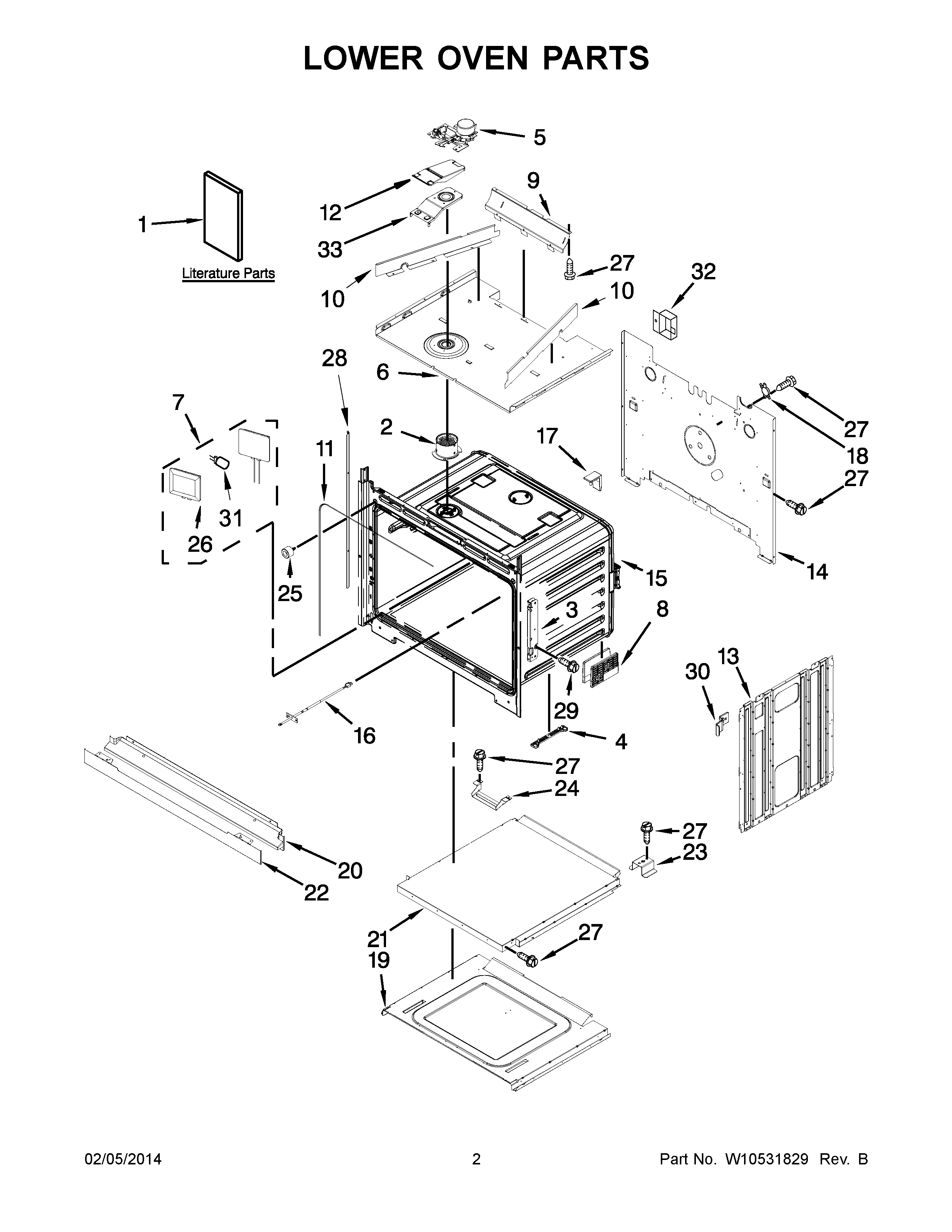

KEBS209BBL00 02 – LOWER OVEN PARTS

KEBS209BBL00 02 – LOWER OVEN PARTS

Written by

in

KEBS209BBL00 02 – LOWER OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11688731 Whirlpool Insulation
NIW11684789 Whirlpool Insulation
1USE & CARE GUIDE
1INSTRUCTIONS, INSTALLATION
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1TECH SHEET (ENGLISH/FRENCH)
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4WPW10318220 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6TOP, CHASSIS
8W10821321 Whirlpool Leveling Foot
9W10351258 Whirlpool Bracket
10CHASSIS, DEFLECTOR
11W11623080 Whirlpool Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14W10282990 Whirlpool Rear Cover
16PROBE, SENSOR
17WPW10323551 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19W11238787 Whirlpool Manifold Pipe
20WPW10327374 Whirlpool Oven Vent
20WPW10506348 Whirlpool Oven Vent
20WPW10351275 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22TRIM, BOTTOM VENT (WHITE)
22WPW10351236 Whirlpool Trim
22WPW10327377 Whirlpool Trim Kit
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28W10536161 Whirlpool Oven Trim Cover Kit
29WPW10254050 Whirlpool Screw
30W10347649 Whirlpool Spacer
31WPW10472384 Whirlpool Light Bulb
328285593 Whirlpool Oven Wire Cover
33W10616809 Whirlpool Vent Tube
