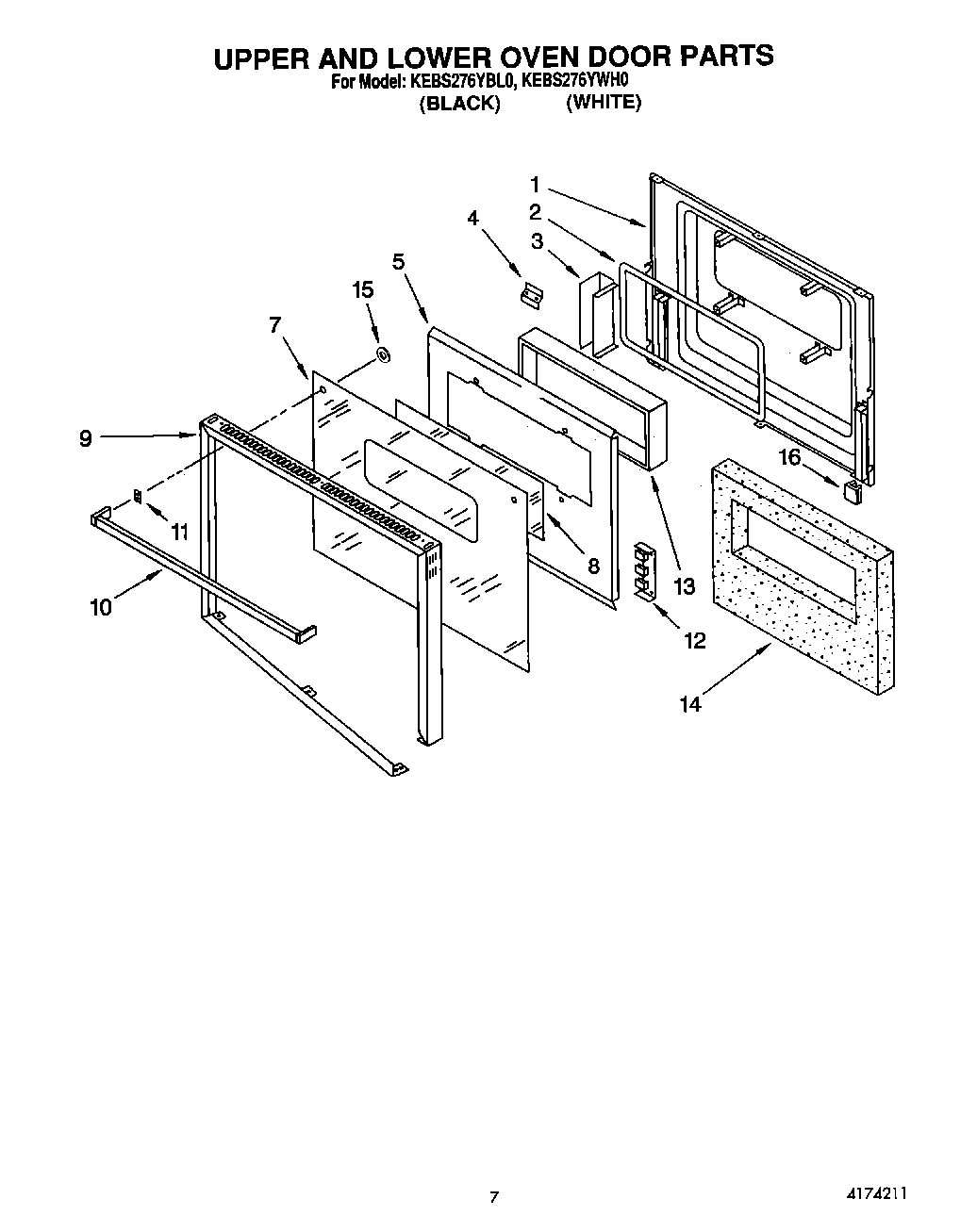

KEBS276YBL0 04 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Vent, Lower Trim (Screw (2))
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
5Screw
7Glass, Door (Black)
7Glass, Door (White)
8Glass, Reflective
9Frame, Door
10Handle, Door (White Model)
10Handle, Door (Black Model)
10Screw
11Spacer, Door Handle
12Bracket, Glass Mtg.
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
