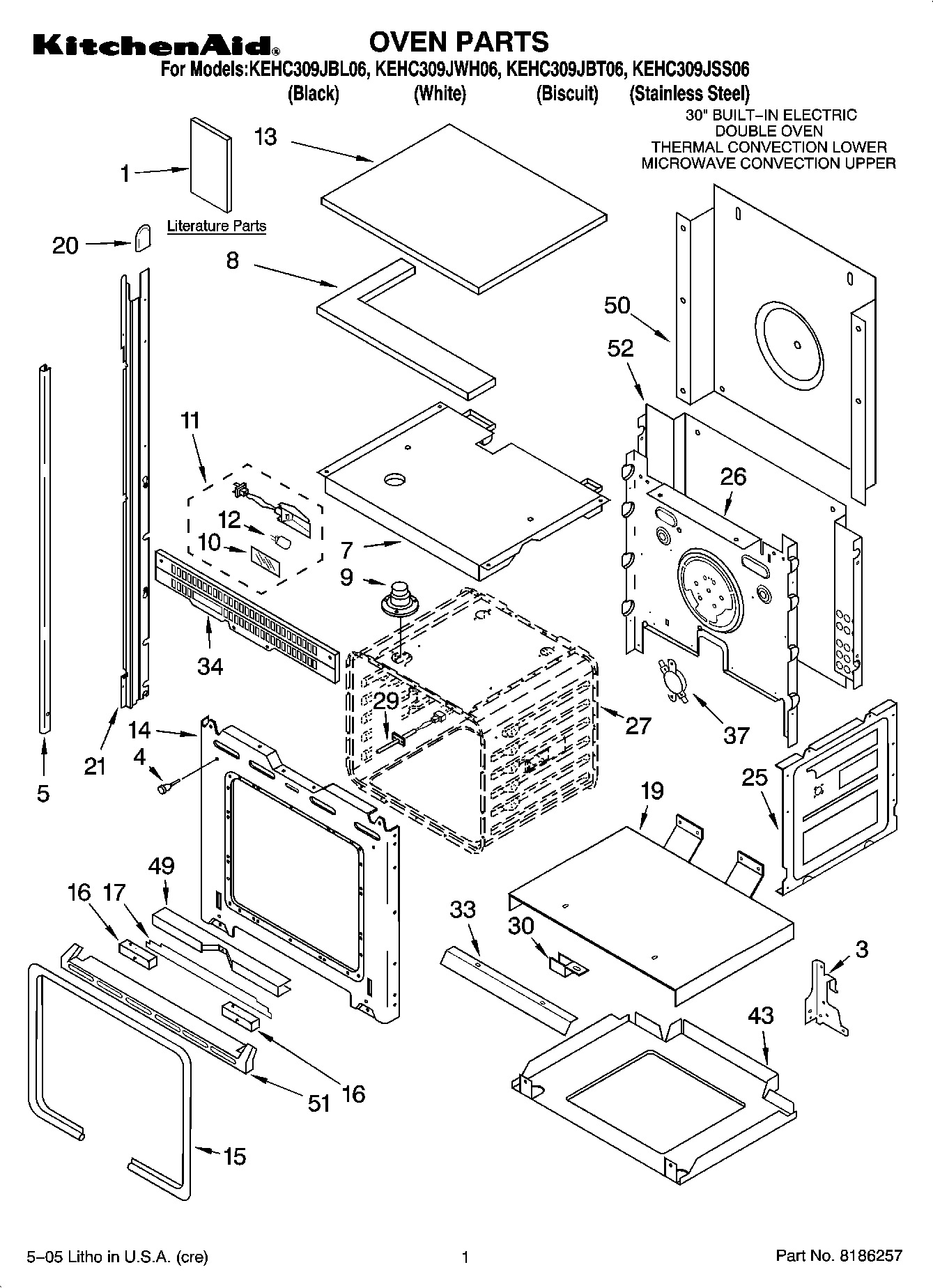

KEHC309JBL06 01 – OVEN PARTS

KEHC309JBL06 01 – OVEN PARTS

Written by

in

KEHC309JBL06 01 – OVEN PARTS

Products

PositionProduct
1Use & Care Guide (Oven)
1Tech Sheet (Oven)
1Easy Set Guide
1Use & Care Guide (Microwave)
1Chart, High Speed Cooking
1Safe Cooking Tips
1Cooking Guide (Lable)
1Installation Instructions
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Trim, Side Right Hand (White)
5(Trim, Side Left Hand) (Black)
5(Trim, Side Left Hand) (White)
5Trim, Side Right Hand (Biscuit)
5(Trim, Side Left Hand) (Biscuit)
5Trim, Side (LH Stainless Steel)
5Trim, Side Right Hand (Black)
5WP8281236 Whirlpool Screw
5Trim, Side (RH Stainless Steel)
7Top, Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34WP3400832 Whirlpool Screw
34Vent, Center
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51Trim, Bottom (Screw)
51WPL 4455147
51WPL 4455443
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455445
51WPL 4455447
52WPL 4451756
52WPL 4450365
52W11684730 Whirlpool Insulation
52WPL ARI84818A2
