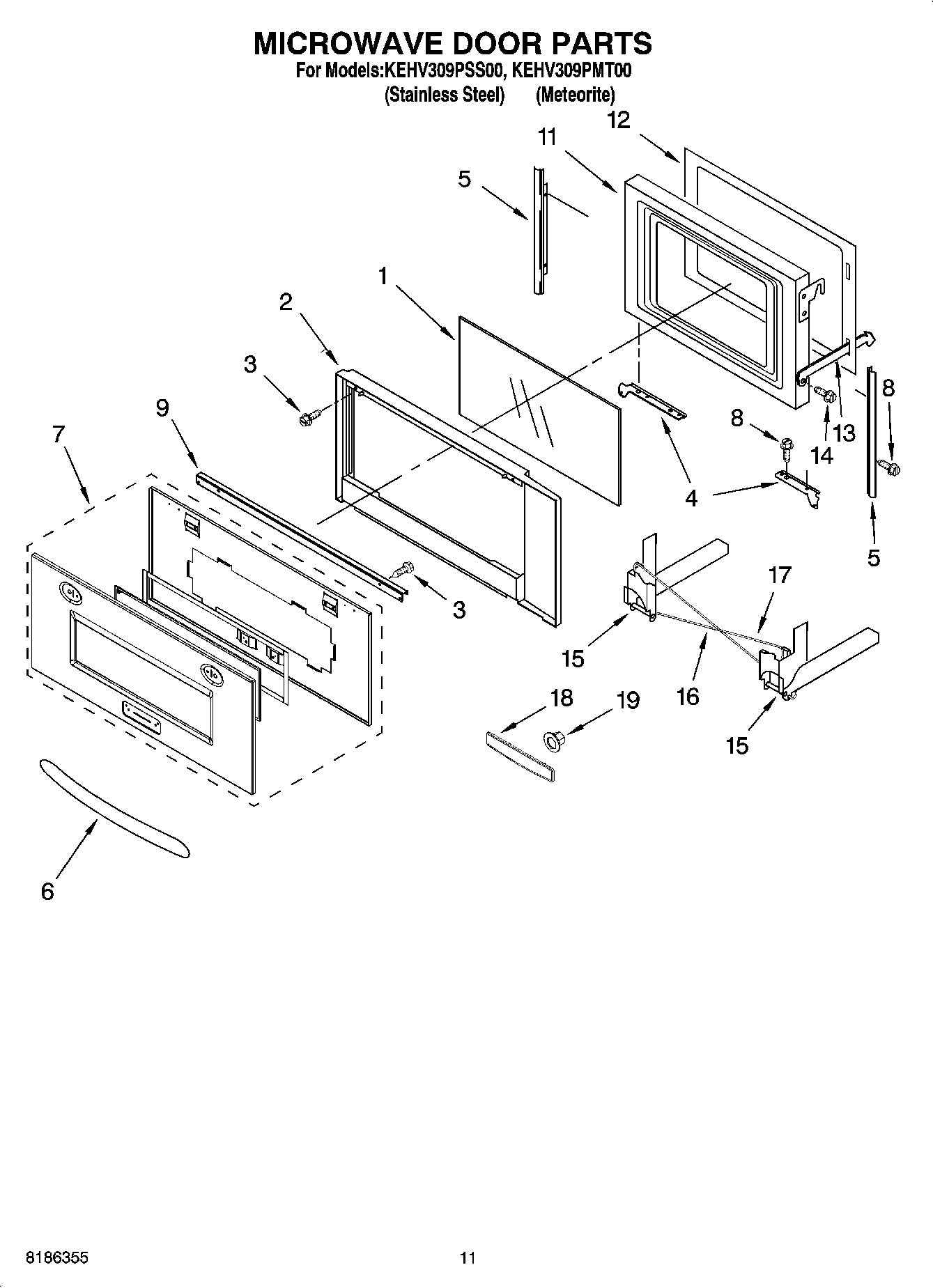

KEHV309PMT00 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHV309PMT00 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHV309PMT00 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI85139A1
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
18 Ga. 80~c Rating (Red)
1
WPL 591014
WPL ARI85138A9
WPL ARI85137A6
WPL ARI85136A2
8301909 Whirlpool Oven Wire Harness
WPL 8301923
WPL ARI85140A9
261900 Whirlpool Microwave Spray
4450950 Whirlpool Oven Conduit
Wire (14 Ga. 200 c Brown)
Spacer, Harness
WP4448950 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
Ground (M/W)
4452400 Whirlpool Microwave Wire Harness
72032 Whirlpool Touch Up Paint Black
16515 Whirlpool Clip
Wire, 25` Roll (Black 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Cleaner (Stainless Steel)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
4450800 Whirlpool Oven Screw
350930 Whirlpool White Spray Paint
1Glass, Middle
2WP4450038 Whirlpool Screw
2WP8303556 Whirlpool Microwave Door Frame
3screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side (Left Side)
5Filler, Side
6Handle, Door (Stainless Steel)
7Glass, Outer (Meteorite)
7Glass, Outer (Stainless Steel)
9Bracket, Handle
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4451009 Whirlpool Microwave Spring
16WP4452396 Whirlpool Microwave Spring
17WP4452395 Whirlpool Spring Assembly
18Nameplate
19Palnut
