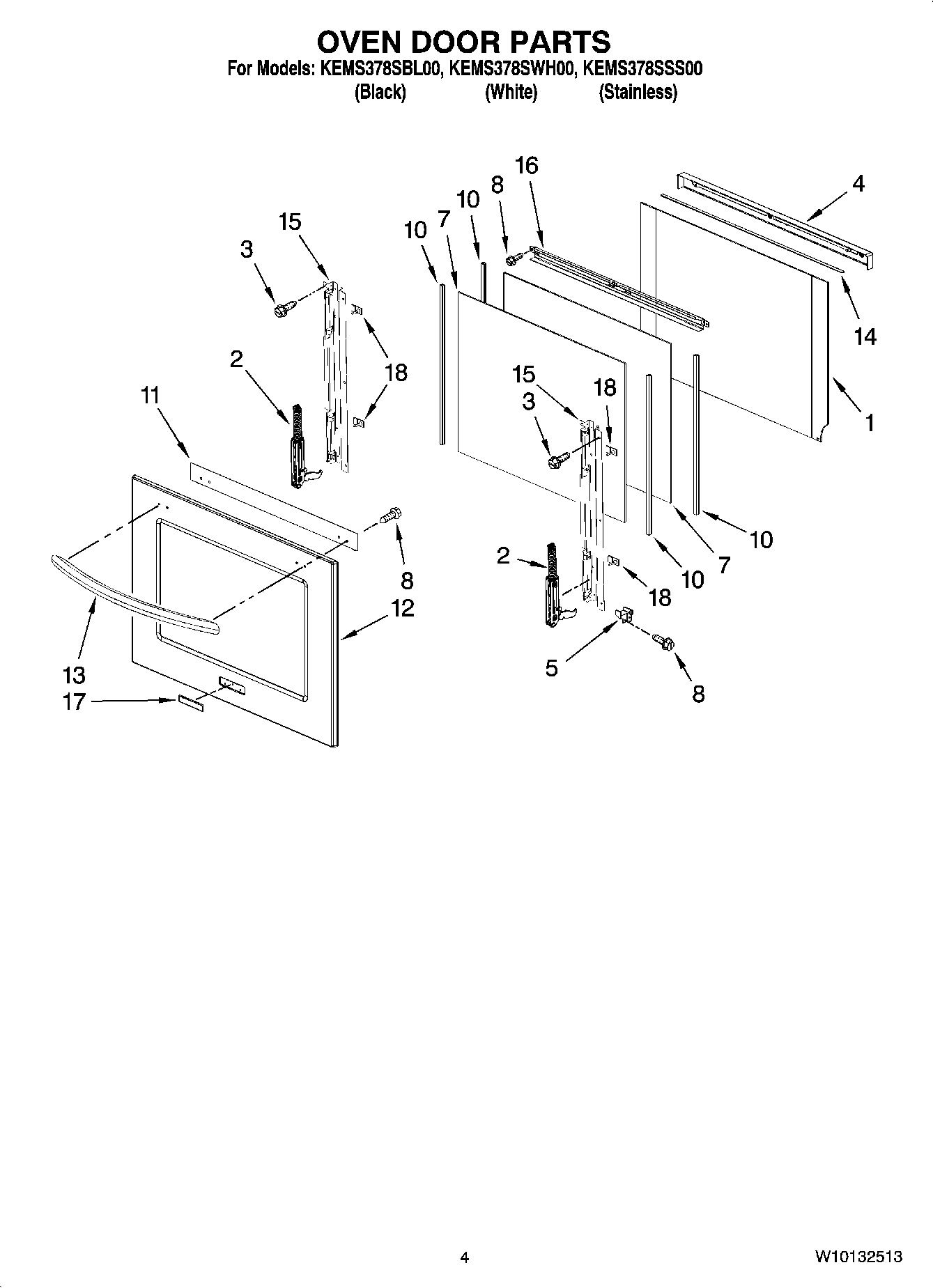

KEMS378SSS00 03 – OVEN DOOR PARTS

KEMS378SSS00 03 – OVEN DOOR PARTS

Written by

in

KEMS378SSS00 03 – OVEN DOOR PARTS

Products

PositionProduct
1Door Liner
2Hinge, Door (2)
3WP3196183 Whirlpool Screw
4Vent, Door Top
58304378 Whirlpool Oven Support Bracket
5Bracket, Door (Right)
7Glass, Inner
8WP4449154 Whirlpool Screw
10W10754409 Whirlpool Seal
11Bracket, Handle
12Door Glass, Assembly Includes 17 (White)
12Door Glass, Assembly Includes 17 (Black)
12Door Glass, Assembly Includes 17 (Stainless)
13Handle, Door
13Handle, Door (White)
13Handle, Door (Black)
14W10754473 Whirlpool Seal
15Frame, Door Side
16Door, Top Bracket
17Badge (White)
17Badge (Stainless)
17Badge (Black)
18Bumper, Glass
