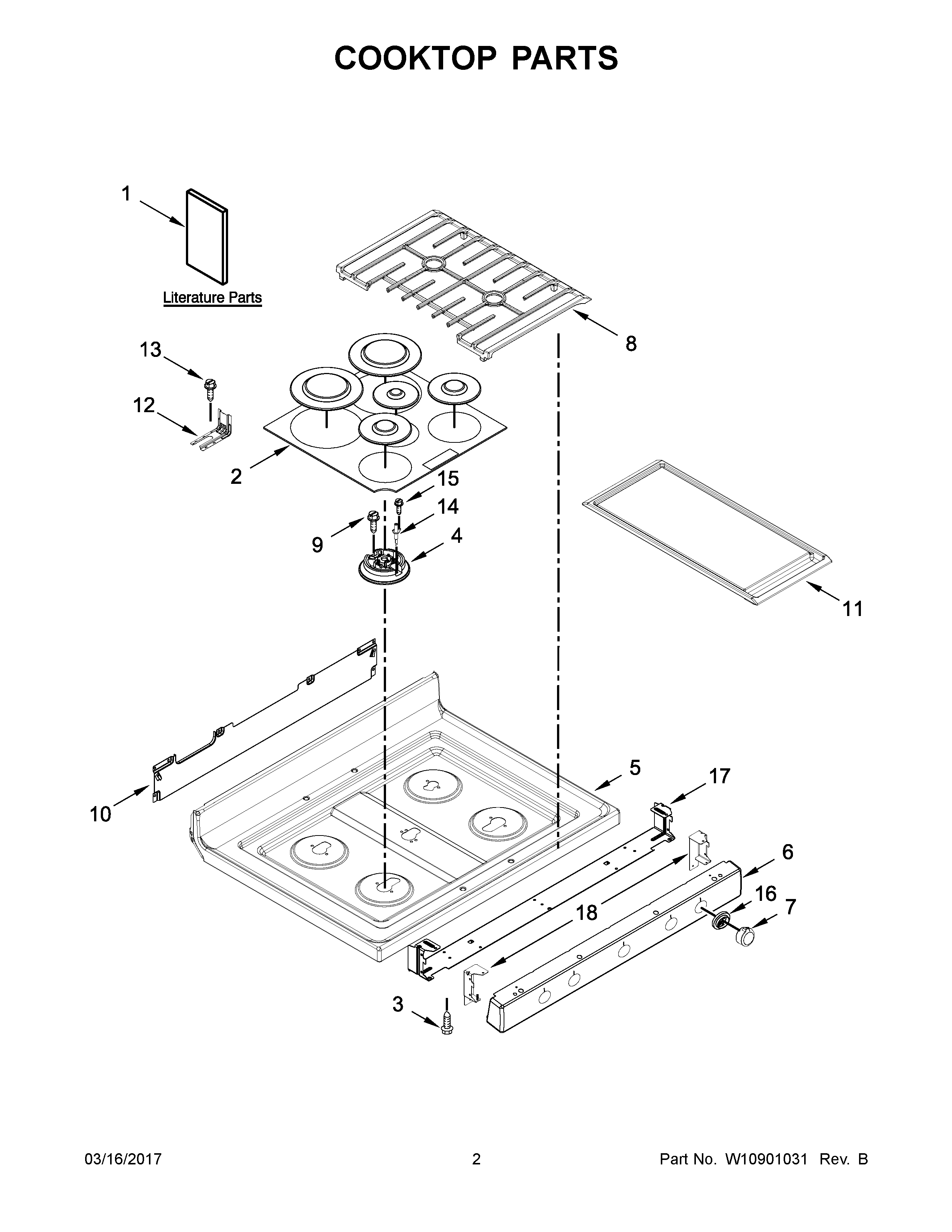

KFGG500ESS1 02 – COOKTOP PARTS

Products

Position	Product
NI	3400964 Whirlpool Oven Clip
NI	W10738993 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	W10519920 Whirlpool Wire Harness
NI	W10580269 Whirlpool Wire Harness
NI	W10809928 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
1B	SHEET, TECH (ENGLISH)
1F	GUIDE, QUICK START
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
1C	SHEET, TECH (FRENCH)
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4B	WPW10515453 Whirlpool Burner Head
4A	WPW10515454 Whirlpool Burner Head
4	WPW10515455 Whirlpool Burner Head
5B	W11241183 Whirlpool Cooktop
5A	W10457322 Whirlpool Cooktop
5	W10457321 Whirlpool Cooktop
6B	W10724442 Whirlpool Manifold Panel
6A	W10724448 Whirlpool Manifold Panel
6	W10724449 Whirlpool Manifold Panel
7	W11030413 Whirlpool Knob
8A	W11199168 Whirlpool Grate Kit
8	W11381340 Whirlpool Grate Kit
9	WP3368921 Whirlpool Screw
10	W10530070 Whirlpool Support Bracket
11	W10432544 Whirlpool Range Griddle
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
16	W10814133 Whirlpool Knob Bezel
17	W10534174 Whirlpool Support Bracket
18A	W10106419 Whirlpool Support Bracket
18	W10289096 Whirlpool Bracket Support
