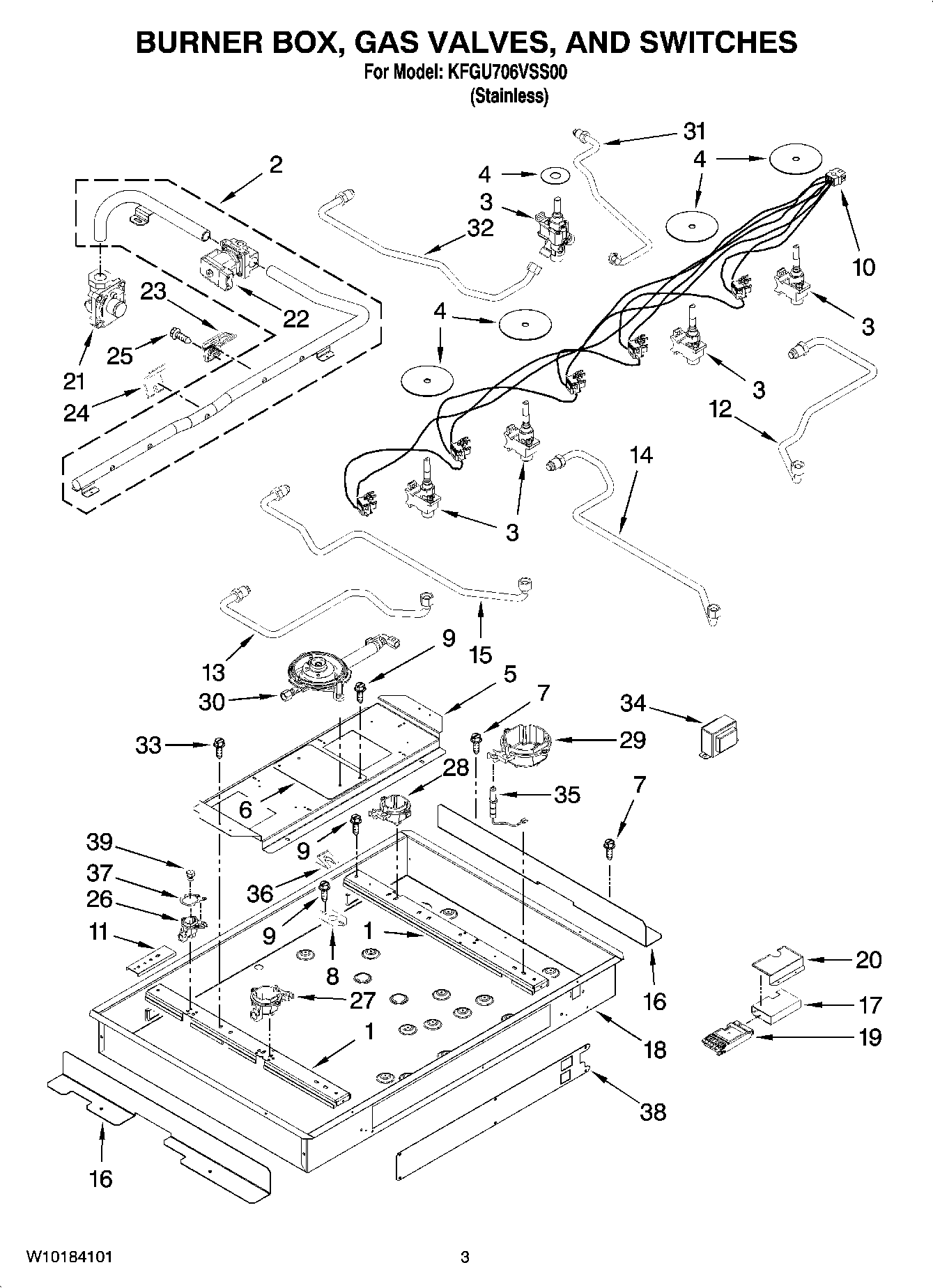

KFGU706VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

KFGU706VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KFGU706VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL W10163727
GROMMET, FLEXIBLE
WPL W10163349
WPL ARI87187A9
WPL ARI87186A4
CONNECTOR, ADAPTOR (BURNER BOX)
WPL ARI87185A4
Cleaner, Stainless Steel
8286987 Whirlpool Oven Wire Harness
Screw (4)
W10392003 Whirlpool Power Cord
WPL 8286693
WPL W10136725
4173634 Whirlpool Bushing
WP3177991 Whirlpool Screw
1RAIL, BURNER (LEFT)
1RAIL, BURNER (RIGHT)
2PIPE, MANIFOLD
38286919 Whirlpool Gas Valve
3WP8287058 Whirlpool Gas Valve
3VALVE, SINGLE (LEFT FRONT)
38286916 Whirlpool Gas Valve
4W10140571 Whirlpool Seal Switch
4W10140577 Whirlpool Switch Seal
5Rail, Center
6Plate, Center Brnr
7WP12990527 Whirlpool Microwave Screw
88286858 Whirlpool Cover Plate
9W10491985 Whirlpool Screw
10HARNESS, SWITCH
118186533 Whirlpool Hardware
12Tubing, Gas Burner (RF)
13Tubing, Gas Burner (LF)
14Tubing, Gas Burner (RR)
15Tubing, Gas Burner (LR)
16SHIELD, HEAT
17MODULE, REIGNITION
18Burner Box
19INSULATION, REIGNITION MODULE
20COVER,REIGNIT.MDL.
21W11087445 Whirlpool Pressure Regulator
22W10368615 Whirlpool Solenoid Valve
238287055 Whirlpool Oven Mounting Bracket
248287056 Whirlpool Oven Mounting Bracket
258287057 Whirlpool Oven Screw
268286820 Whirlpool Oven Orifice Holder
27W10140569 Whirlpool Orifice Holder
288286821 Whirlpool Oven Orifice Holder
29HOLDER, ORIFICE (12K) (RIGHT FRONT)
30Orific HLD 15K (Ctr)
31PIPE,EXT. CROWN
32PIPE,INT. CROWN
33W11676349 Whirlpool Screw
34TRANSFORMER
35WPW10560001 Whirlpool Surface Igniter
358286723 Whirlpool Surface Igniter
35W10854967 Whirlpool Surface Igniter
35WPL 8286724
35Electrode (CTR)
368286863 Whirlpool Oven Clip
378286930 Whirlpool Oven Gasket
37WPL 8286931
378286932 Whirlpool Gasket
38COVER, PLATE
39W10791076 Whirlpool Spud Orifice
39W10791081 Whirlpool Orifice Spud
39W10791072 Whirlpool Orifice Spud
39W10151350 Whirlpool Spud Orifice
39W10791614 Whirlpool Orifice Spud
