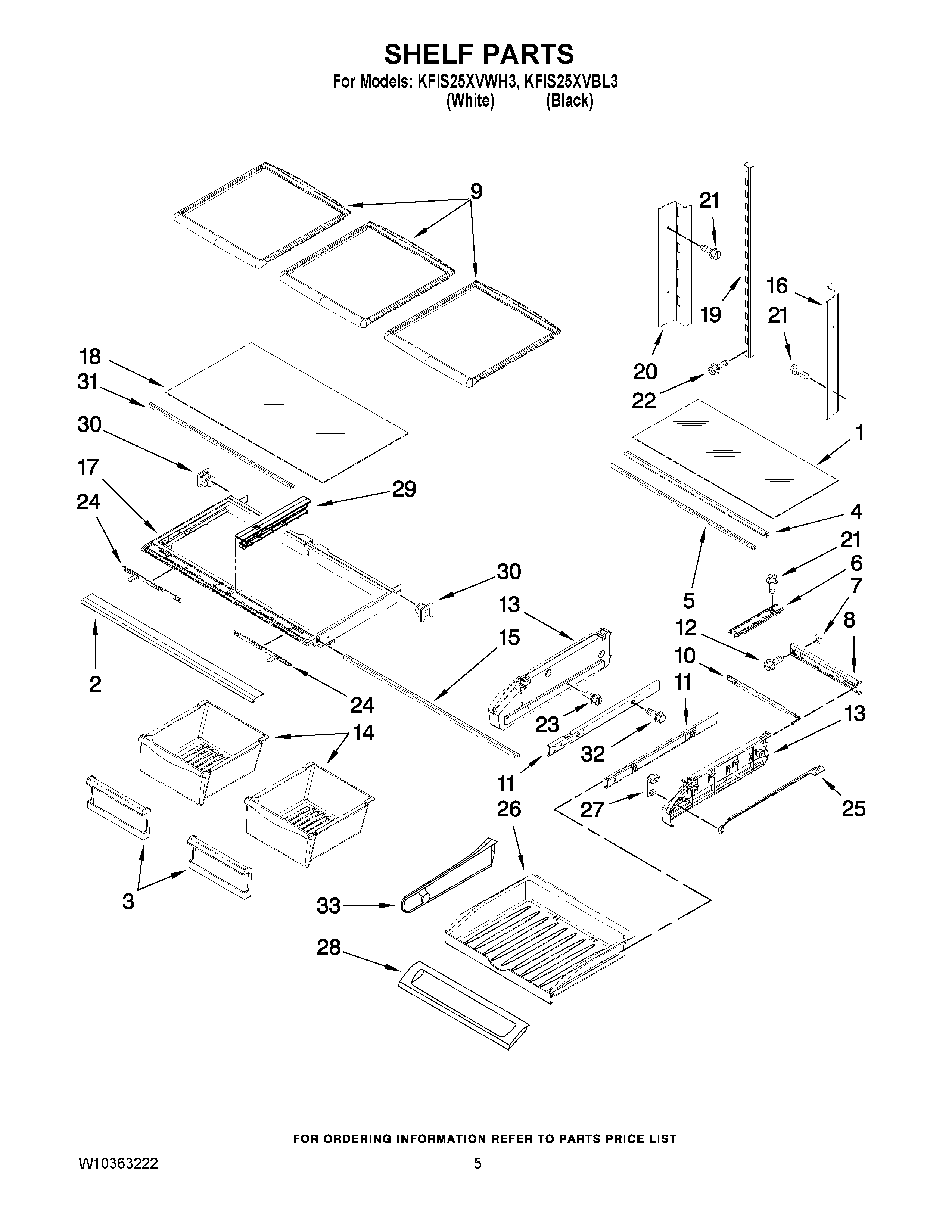

KFIS25XVBL3 03 – SHELF PARTS

KFIS25XVBL3 03 – SHELF PARTS

Written by

in

KFIS25XVBL3 03 – SHELF PARTS

Products

PositionProduct
1W11033333 Whirlpool Glass Shelf
2TRIM, CRISPER
3FRONT-CRISPER PAN
4WP67006010 Whirlpool Refrigerator Shelf Trim
6WP67001719 Whirlpool Refrigerator Track
767002329 Whirlpool Refrigerator Pantry Gasket
812656202 Whirlpool Refrigerator Housing
9W11402525 Whirlpool Glass Shelf
10WP67003793 Whirlpool Refrigerator Temperature Slide
11WPW10235370 Whirlpool Refrigerator Glide
13W10874836 Whirlpool Endcap Assembly Left Hand and Right
14WP67004515 Whirlpool Crisper Drawer
15WP12227305WD Whirlpool Drawer Support
16W10251965 Whirlpool Refrigerator Ladder
17WPW10329866 Whirlpool Frame
18WP67006704 Whirlpool Glass Crisper Cover
19W10273464 Whirlpool Refrigerator Ladder
20W10251966 Whirlpool Refrigerator Ladder
2167006425 Whirlpool Refrigerator Screw
22W10709795 Whirlpool Refrigerator Screw
23WP67006415 Whirlpool Refrigerator Screw
24SLIDE
25WP67003795 Whirlpool Refrigerator Temperature Control Bar
26WP67003531 Whirlpool Drawer Assembly
27W11498983 Whirlpool Refrigerator Knob
28WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
29WPW10326469 Whirlpool Drawer Slide Rail
30WP13062602 Whirlpool Refrigerator Support
31WP12642303WD Whirlpool Refrigerator Drawer Support
32WP98165 Whirlpool Screw
33WP67002759 Whirlpool Refrigerator Divider
