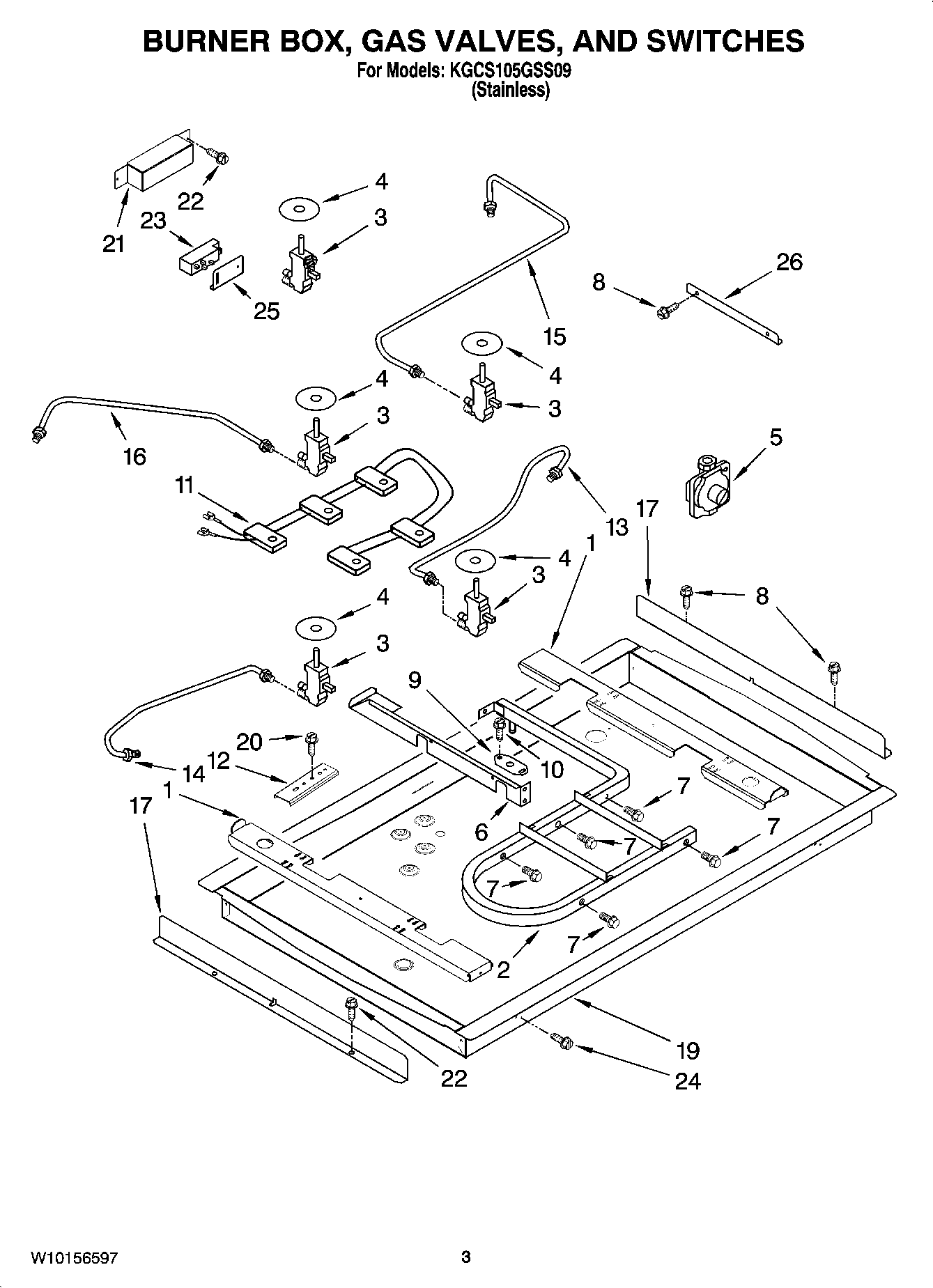

KGCS105GSS09 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

KGCS105GSS09 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Written by

in

KGCS105GSS09 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

PositionProduct
WP3192741 Whirlpool LP Conversion Kit
Miscellaneous
Following Parts Not Illustrated
4456626 Whirlpool Wire
WIRING HARNESS PARTS
4456627 Whirlpool Wire Harness
WP3177991 Whirlpool Screw
W10392007 Whirlpool Power Cord
18285796 Whirlpool Support Assembly
2Pipe, Manifold
3Valve, Gas Burner (White)
3Valve, Burner (Bronze)
3WP4456817 Whirlpool Burner Valve
3Valve, Gas Burner (Yellow)
4WP3188425 Whirlpool Seal Switch
5W11170853 Whirlpool Regulator Assembly
6Rail, Center
7WP3186217 Whirlpool Screw
8WP12990527 Whirlpool Microwave Screw
93192491 Whirlpool Support Bracket
10W10491985 Whirlpool Screw
11WP4456905 Whirlpool Wire Harness
128186533 Whirlpool Hardware
138285793 Whirlpool Gas Tubing
148285794 Whirlpool Oven Gas Tubing
158285792 Whirlpool Oven Gas Tubing
168285795 Whirlpool Oven Gas Tubing
173191462 Whirlpool Oven Heat Shield
19Burner Box
20WP3400093 Whirlpool Screw
218285788 Whirlpool Oven Heat Shield
23WPW10110491 Whirlpool Spark Module
24WP4449809 Whirlpool Screw
254455837 Whirlpool Oven Mounting Bracket
269759145 Whirlpool Oven Support Bracket
