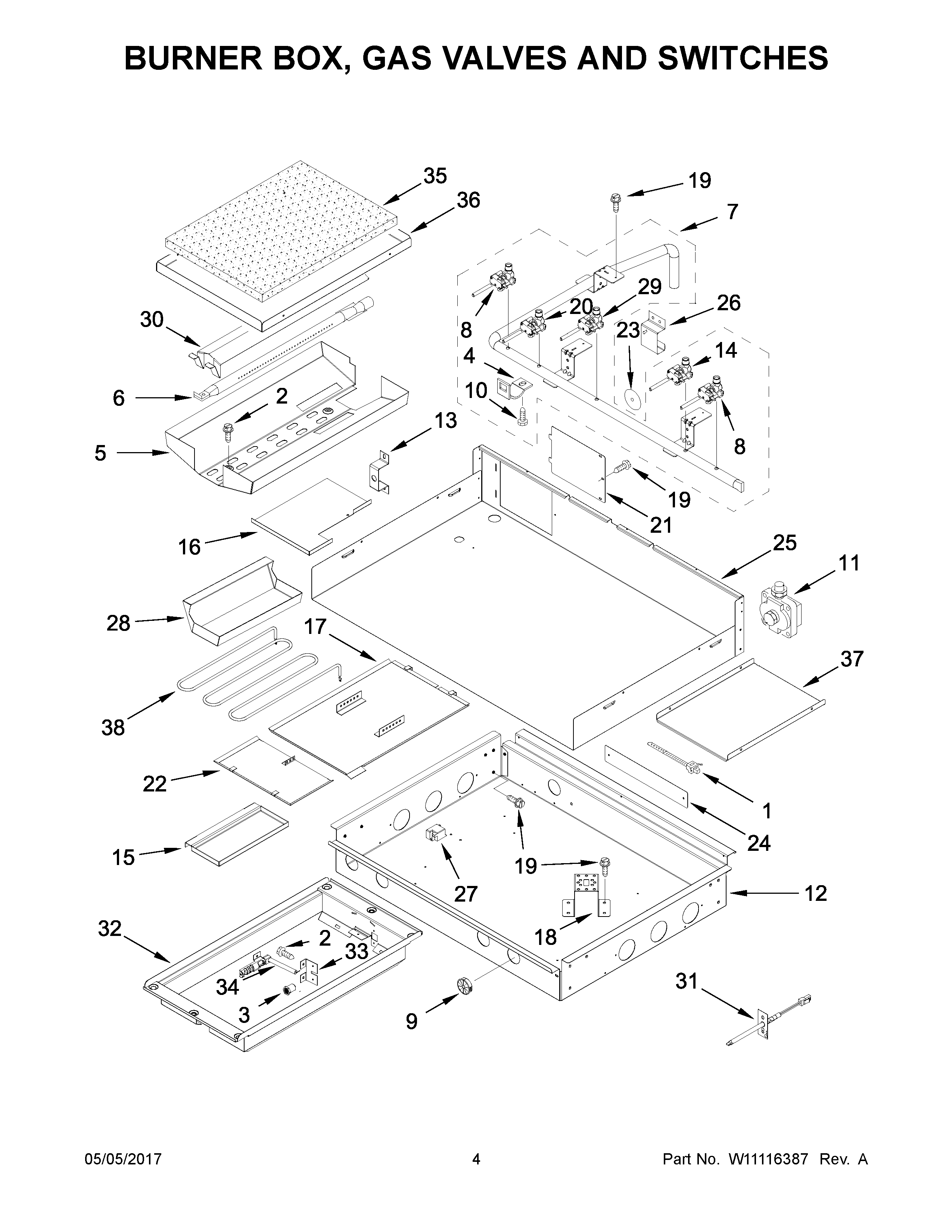

KGCU484VSS02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

Position	Product
NI	W10158807 Whirlpool Burner Tube
NI	W10280797 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10353152 Whirlpool Gas Tubing
NI	W10353154 Whirlpool Gas Tubing
NI	WPW10353133 Whirlpool Gas Tubing
NI	CABINET (NOT A SERVICEABLE PART)
1	W11675299 Whirlpool Tie Wire
2	SCREW
3	4456495 Whirlpool Oven Orifice
4	BRACKET, VALVE
5	DEFLECTOR, GRILL
6	W10223569 Whirlpool Burner Grille
7	MANIFOLD
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W11106948 Whirlpool Pressure Regulator
12	BOX, BURNER
13	BRACKET, GRILL ORIFICE MOUNTING
14	WPW10385583 Whirlpool Burner Valve
15	W10250473 Whirlpool Drip Tray
16	HOLDER, DRIP TRAY
17	DRIP TRAY, ROUTER 1
18	W10560553 Whirlpool Mounting Bracket
19	SCREW
20	WPW10371235 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
22	W10250468 Whirlpool Grille Guard
23	W10189177 Whirlpool Seal Switch
24	COVER, PLATE
25	COVER, BURNER BOX
26	Bracket, Mounting Orifice
27	W11601369 Whirlpool Spark Module
28	W10276497 Whirlpool Drip Tray
29	W10385584 Whirlpool Grill Valve
30	FLAME SPREADER
31	W10319835 Whirlpool Sensor
32	WPW10267890 Whirlpool Module
33	BRACKET, GRILL IGNITOR
34	W10268770 Whirlpool Surface Igniter
35	W11684995 Whirlpool Insulation
36	W10246074 Whirlpool Insulation Tray
37	W10145620 Whirlpool Bottom Model
38	W10193014 Whirlpool Grille Element
