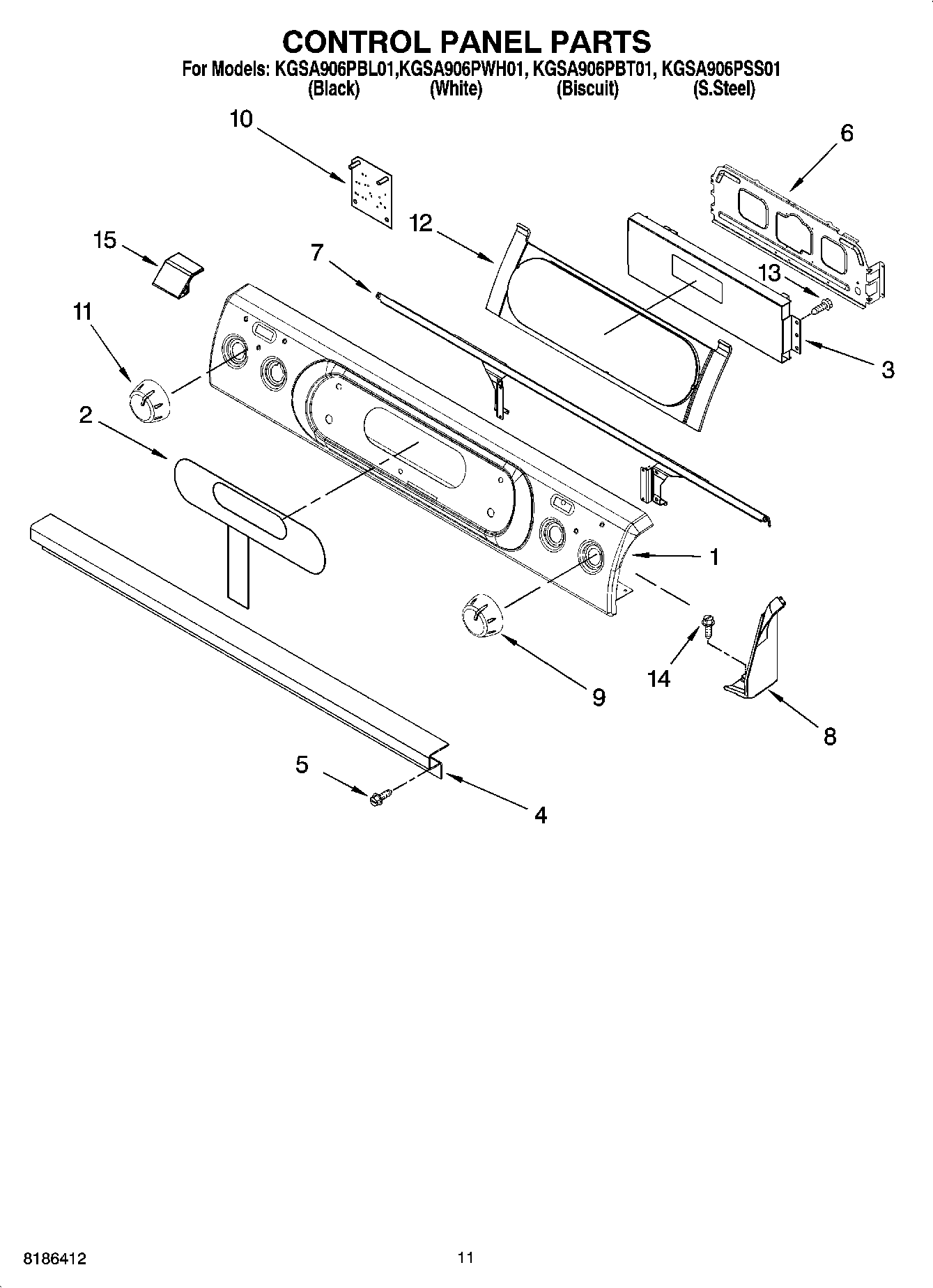

KGSA906PBL01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

KGSA906PBL01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Written by

in

KGSA906PBL01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Products

PositionProduct
Bakeware, 5 pc
WPL ARI88134A5
WPL ARI88135A9
WPL ARI88136A4
261900 Whirlpool Microwave Spray
Filler, Counter Top (Biscuit)
WPL 591014
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WPL ARI88133A8
W10624584 Whirlpool Power Cord
Filler, Counter Top (Black)
Gasket 19 x 388
9757426 Whirlpool Oven LP Conversion Kit
9756921 Whirlpool Oven Wire Harness
Gasket
WPL 9756920
WPL 9760526
Filler, Counter Top (White)
WPL ARI88132A4
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Harness, Wire
Spacer, Harness
W11447673 Whirlpool Range Tip Anchor
Clip, Ground Wire
WP4448950 Whirlpool Screw
1Control Panel (Black)
1Control Panel (White)
1Control Panel (Biscuit)
1Control Panel (S.Steel)
2WP9756559BT Whirlpool Membrane Switch
2Membrane Switch (Black)
2Membrane Switch (White)
2WP9756559ES Whirlpool Membrane Switch
3Control, Migration
4Bracket, Console
5WP3196557 Whirlpool Screw
6Support, Gas Valve
7Bracket, User Interface
8Endcap (White RH)
8Endcap (Cashmere Metal RH)
8Endcap (Black LH)
8Endcap (Cashmere Metal LH)
8Endcap (White LH)
8Endcap (Black RH)
8Endcap (Biscuit LH)
8Endcap (Biscuit RH)
9Knob (White)
9Knob (Biscuit)
9Knob, Burner (4) (Meteorite Model)
9Knob (Black)
10WPW10331686 Whirlpool Oven Spark Module
11Knob (Cashmere Metal)
11Knob (White)
11Knob (Biscuit)
11Knob (Black)
12Insert, Membrane
13Screw
143196172 Whirlpool Oven Screw
15Insert, Console (R.Hand)
15Insert, Console (L.Hand)
15WP4449745 Whirlpool Screw
