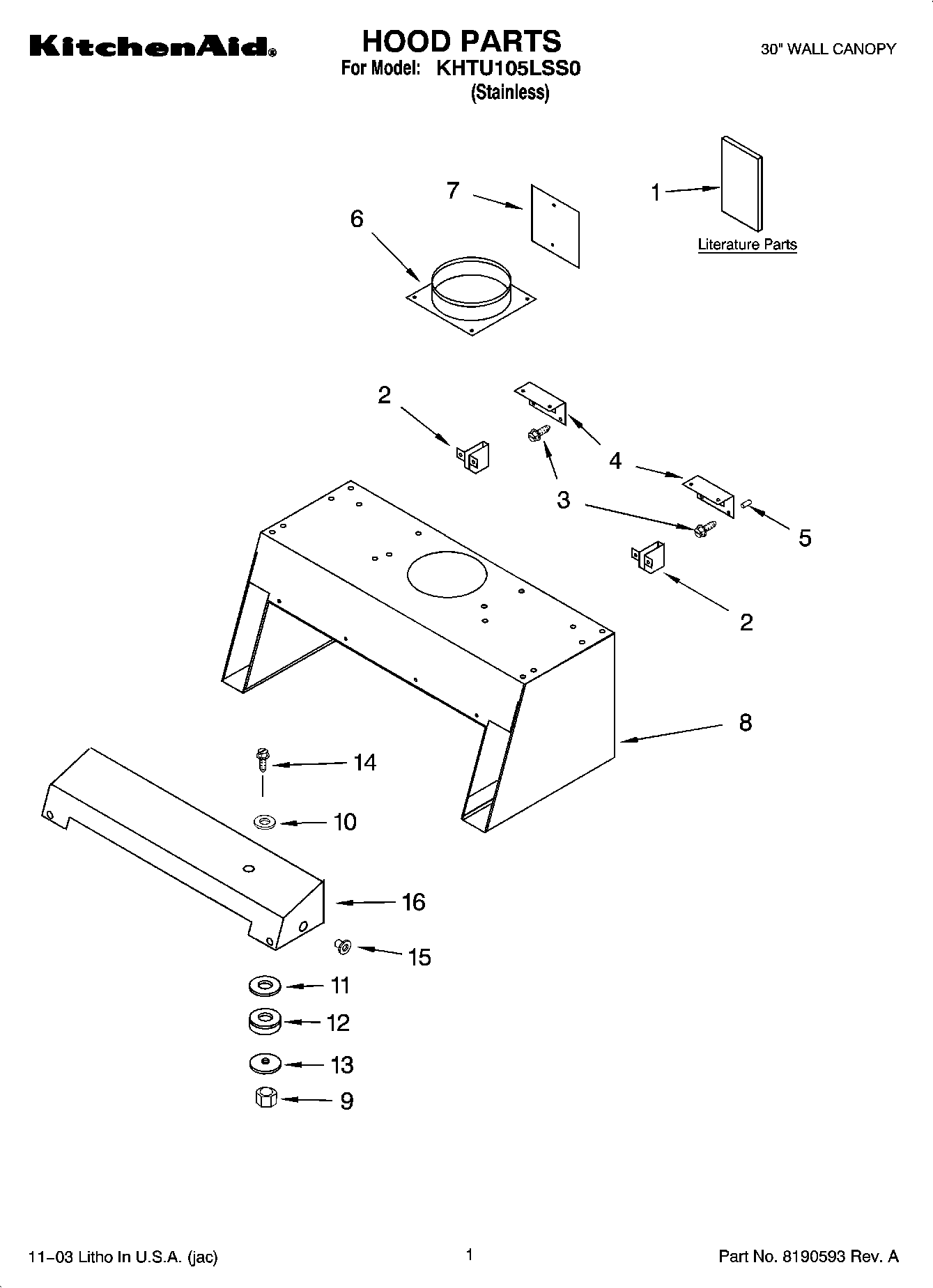

KHTU105LSS0 01 – HOOD PARTS

Written by

Products

Position	Product
1	Literature Parts (Use & Care Guide)
2	Bracket, Hood
3	Screw
4	Bracket, Mounting
5	Plug
6	Damper
7	Cover, Wiring
8	Hood
9	WP776338 Whirlpool Compactor Nut
10	Washer
11	Plate (Rubber)
12	WPW10252120 Whirlpool Transformer
13	Plate (Nylon)
14	Screw
15	Relief, Strain
16	Cover, Wire
