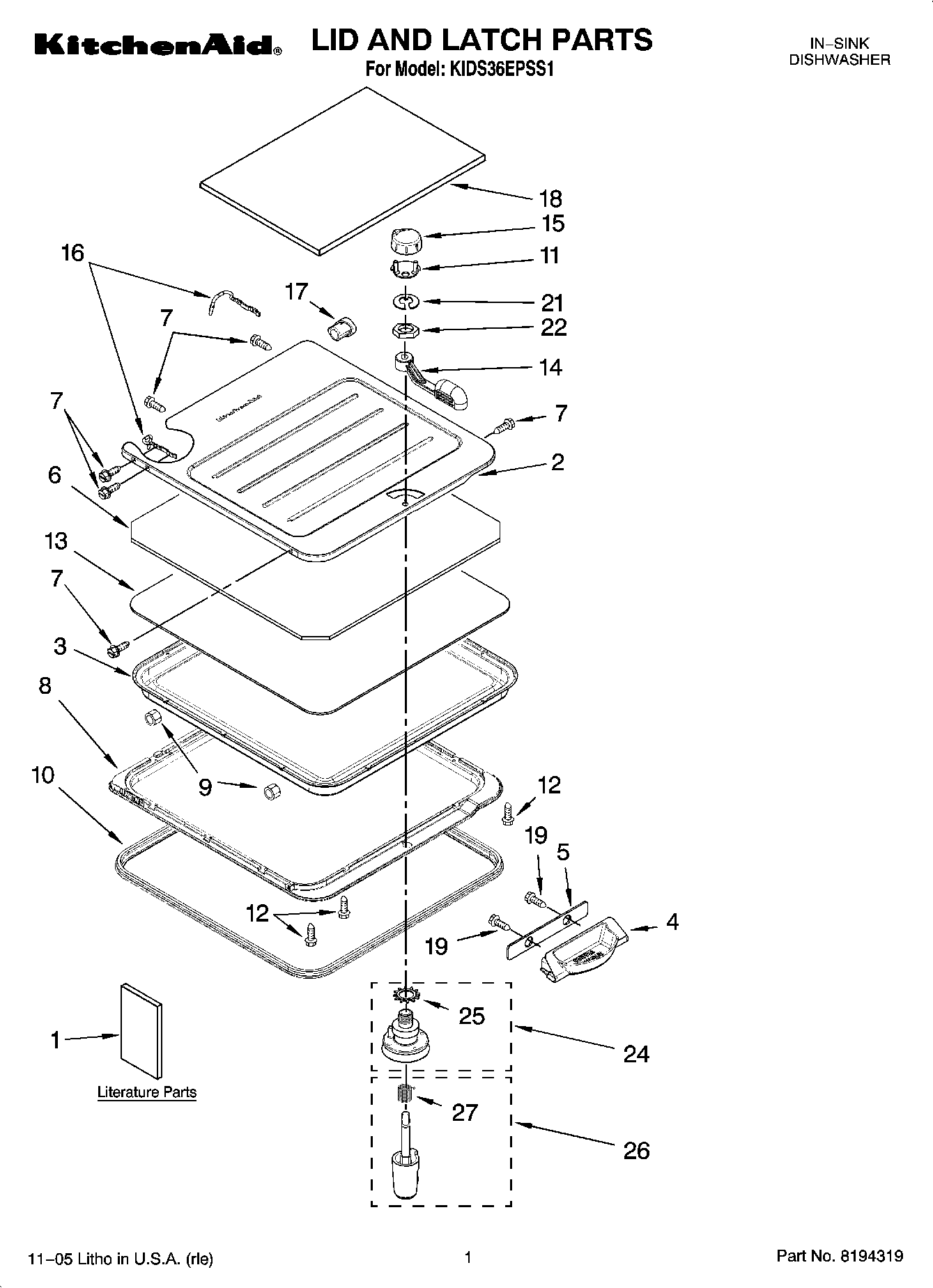

KIDS36EPSS1 01 – LID AND LATCH PARTS

Products

PositionProduct
1Energy Guide
1Instructions, Installation
1English/French
1Guide, Use & Care Tech Sheet
2Lid, Outer
3Lid, Inner
4Cup, Detergent
5Seal, Detergent Cup
6Insulator, Sound Lid
7SCREW
8Retainer, Gasket
9NUT
10Gasket, Lid
11Plate, Mounting Knob
12SCREW
13Mastic, Lid
14Lever, Lid Locking
15Knob, Latch
16Pin, Hinge (Left Hand)
16Pin, Hinge (Right Hand)
17Bearing, Lid Hinge (2)
18Board, Cutting
19W11631670 Whirlpool Screw
21E-Ring
22WP33001443 Whirlpool Hex Nut
24Collar Assembly
25WASHER
26Cam Assembly
27Spring, Torsion
