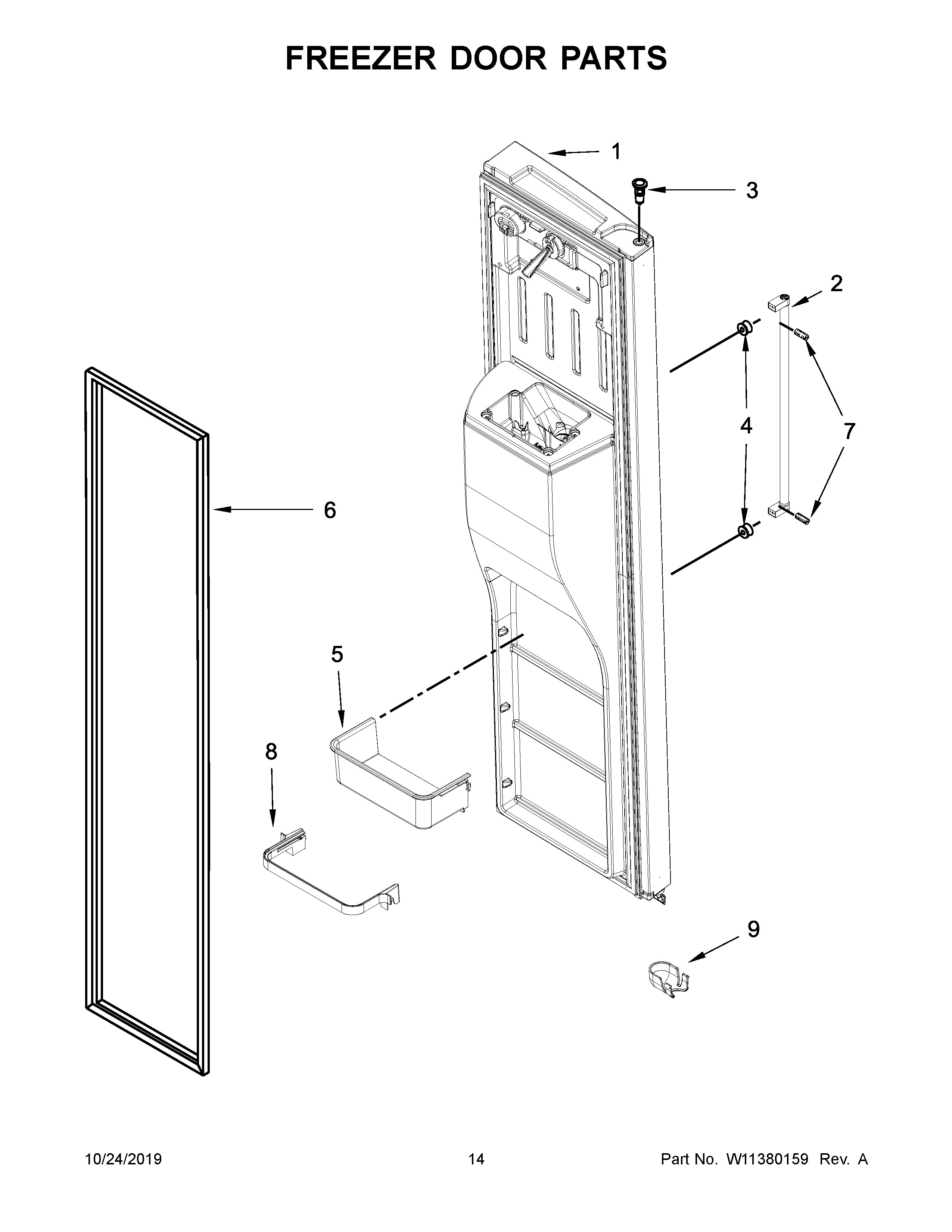

KRSC700HPS00 08 – FREEZER DOOR PARTS

KRSC700HPS00 08 – FREEZER DOOR PARTS

Written by

in

KRSC700HPS00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1AW11395871 Whirlpool Refrigerator Door Assembly
1W11395876 Whirlpool Refrigerator Door Assembly
2W11340150 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10661886 Whirlpool Refrigerator Door Handle Screw
5WPW10434529 Whirlpool Refrigerator Bin
6AWPW10355585 Whirlpool Refrigerator Door Gasket + AH
6WPW10249913 Whirlpool Refrigerator FIP Gasket
7SCREW
8WPW10494336 Whirlpool Refrigerator Bin Frame
9W10323148 Whirlpool Refrigerator Wire Cover
