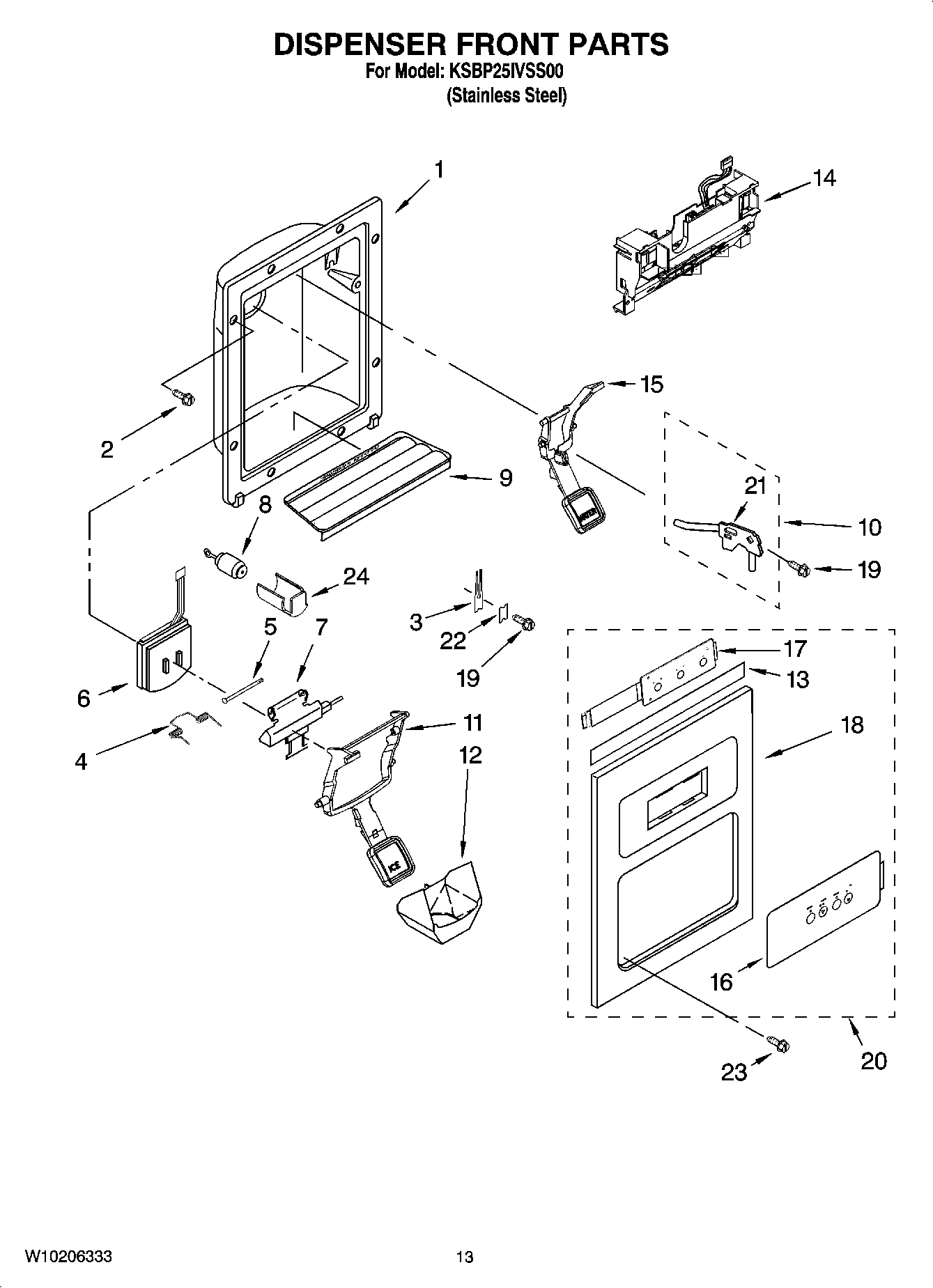

KSBP25IVSS00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670B Whirlpool Dispenser Tray
10	ASSEMBLY, WATER TUBE & BRACKET
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2305571 Whirlpool Gasket Assembly
14	Bracket, Control
15	WPW10152858 Whirlpool Refrigerator Dispenser Arm
16	Overlay, Front Cover (Not Available, Order 20)
17	LED Display (Not Available, Order 20)
18	Front Cover, Housing (Not Available, Order 20)
19	WP3400906 Whirlpool Refrigerator Screw
20	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
21	WP2304673 Whirlpool Refrigerator Bracket
22	WP2195051 Whirlpool Refrigerator Clip
23	WP3400065 Whirlpool Refrigerator Screw
24	Sleeve, Delay Mechanism
