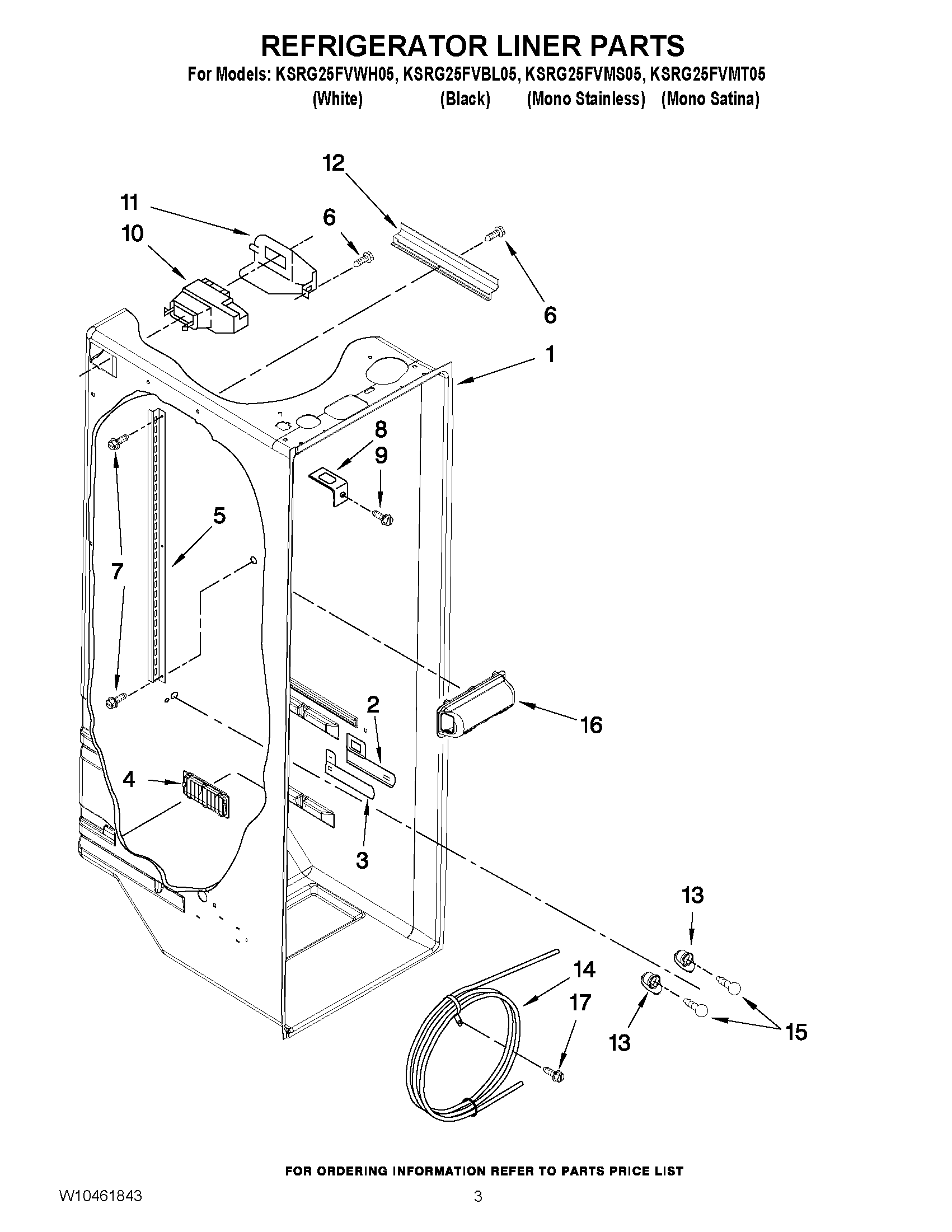

KSRG25FVMS05 02 – REFRIGERATOR LINER PARTS

KSRG25FVMS05 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRG25FVMS05 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Shelf Ladder
6W10759522 Whirlpool Screw
7WP489478 Whirlpool Refrigerator Screw
8WP2256085 Whirlpool Refrigerator Retainer
9WP488488 Whirlpool Refrigerator Screw
10WPW10151375 Whirlpool Refrigerator Diffuser
112152019 Whirlpool Refrigerator Cover
122150331 Whirlpool Refrigerator Wire Cover
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15W11679940 Whirlpool Refrigerator Light Bulb Assembly
16W11239891 Whirlpool Refrigerator Light Lens
17W10141518 Whirlpool Refrigerator Screw
