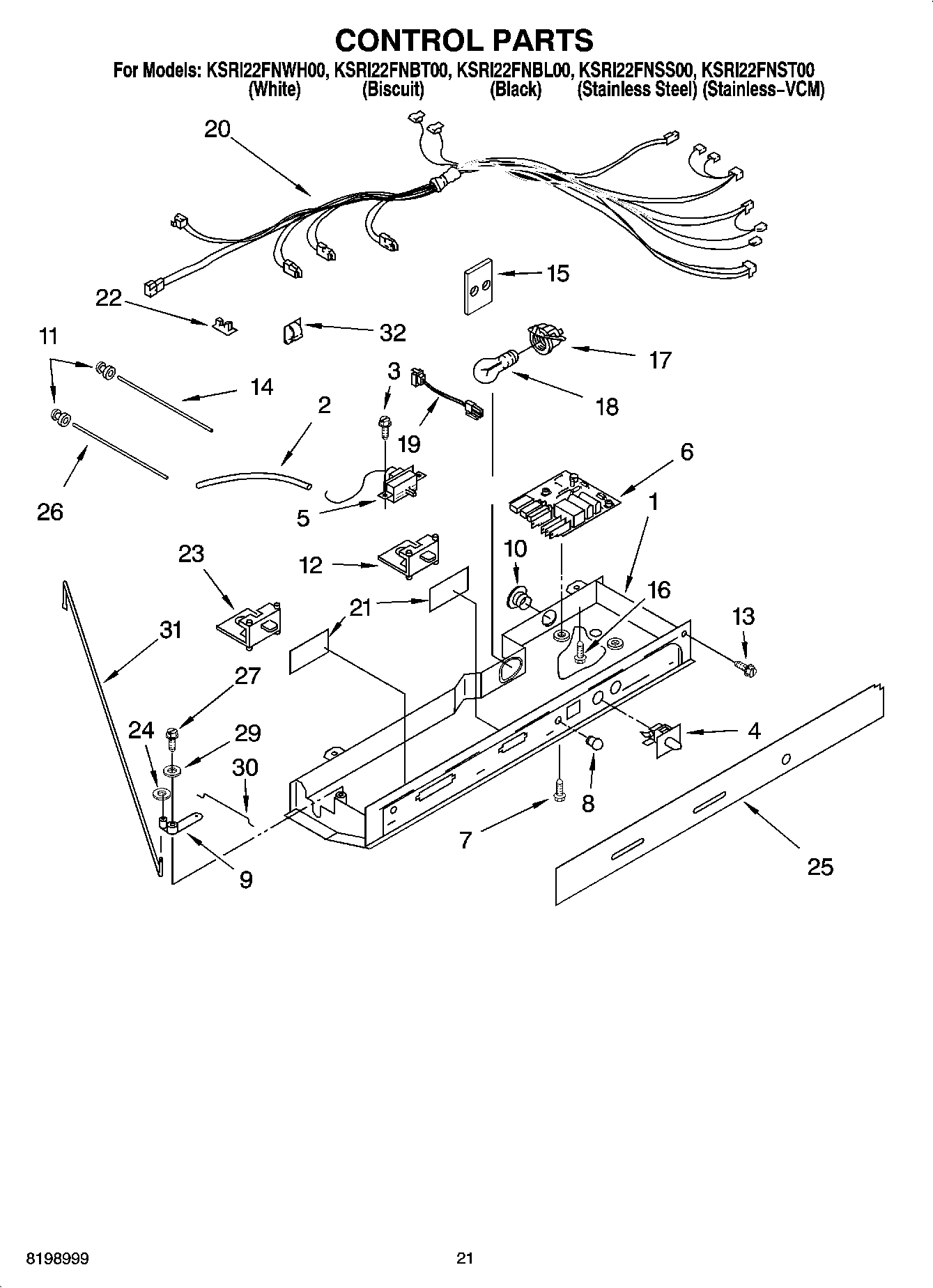

KSRI22FNSS00 12 – CONTROL PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI97802A2
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI97803A4
	Ice Container Assembly
	WPL ARI97799A3
	WPL ARI97800A2
	WPL ARI97801A2
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	WP72107 Whirlpool Touchup
	833938 Whirlpool Refrigerator Terminal
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	606755 Whirlpool Refrigerator Bag
	350930 Whirlpool White Spray Paint
	876370 Whirlpool Refrigerator Insulation
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	COVER, LIGHT LENS
9	2161306 Whirlpool Refrigerator Arm Pivot
10	940014 Whirlpool Refrigerator Primary Button Plug
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2172931 Whirlpool Refrigerator Shield
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	RANGE ONLY 40W 120V APPL BULB
19	W10853646 Whirlpool Indicator Light
20	2311632 Whirlpool Refrigerator Wire Harness
21	Window
22	CLIP, WIRING
23	2181741 Whirlpool Refrigerator Slide
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar (FC)
27	627068 Whirlpool Refrigerator Screw
29	489203 Whirlpool Refrigerator Washer
30	2161307 Whirlpool Refrigerator Rod
31	2161308 Whirlpool Refrigerator Rod
32	WP1115374 Whirlpool Refrigerator Clip
